Meanwell 12VDC Power Supply 180W 15A OWA-200E-12 class-2 PFC IP67 waterproof for outdoor LED Lights UL&EMC List Input Volt 180-264Vac, 254-379Vdc Output Volt 12V20V24V36V42V48V54V

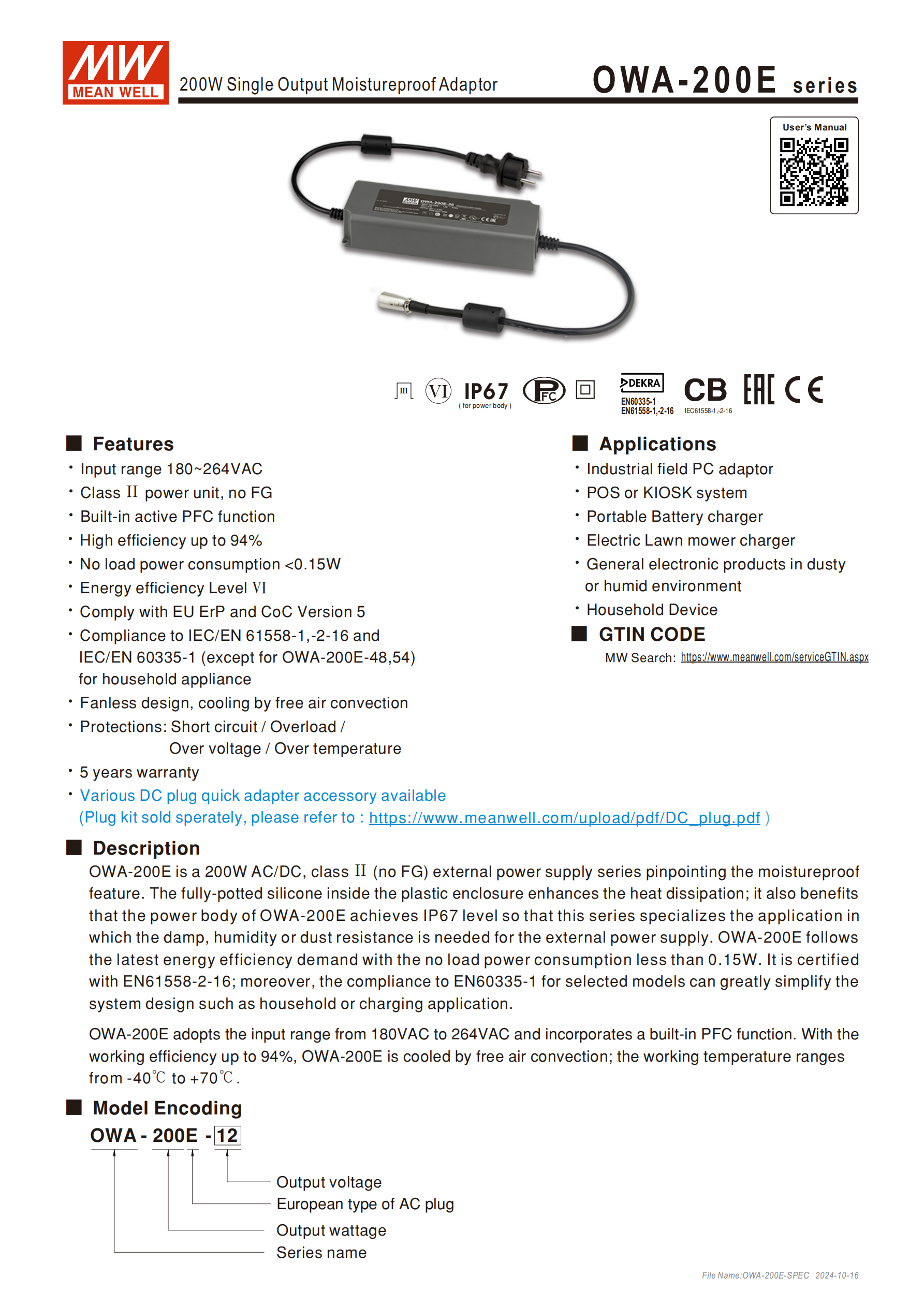

# Description

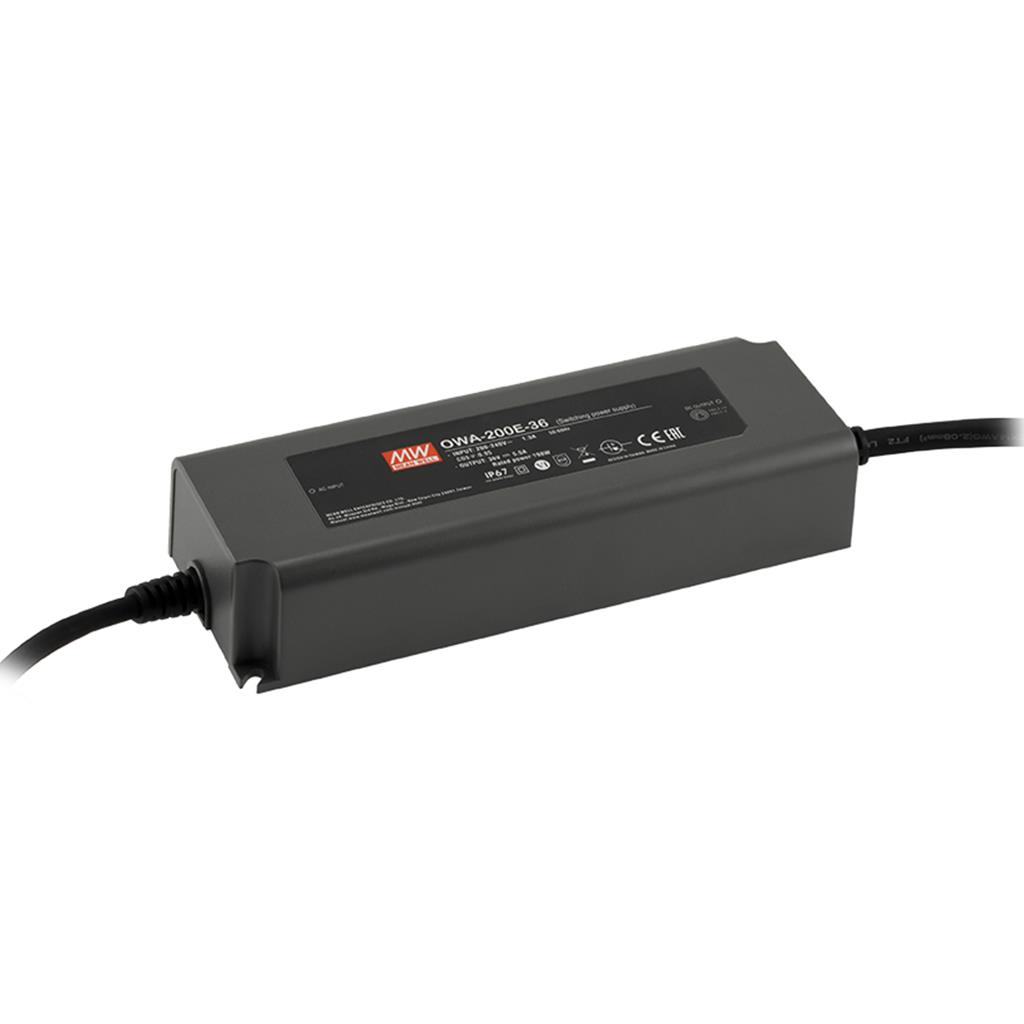

OWA-200E is a 200W AC/DC, class II (no FG) external power supply series pinpointing the moistureproof feature.
The fully-potted silicone inside the plastic enclosure enhances the heat dissipation;
it also benefits that the power body of OWA-200E achieves IP67 level so that this series specializes the application in which the damp,
humidity or dust resistance is needed for the external power supply.
OWA-200E follows the latest energy efficiency demand with the no load power consumption less than 0.15W.
It is certified with EN61558-2-16; moreover, the compliance to EN60335-1 for selected models can greatly simplify the system design such as household or charging application.
OWA-200E adopts the input range from 180VAC to 264VAC and incorporates a built-in PFC function.
With the working efficiency up to 94%, OWA-200E is cooled by free air convection;
the working temperature ranges from -40°C to +70°C.

#Meanwell Power Supply OWA-200E Safety&EMC List
#SAFETY STANDARDS
DEKRA EN61558-1,-2-16; DEKRA EN60335-1(except for OWA-200E-48,54); EAC TP TC 004, IP67 (for power body) approved
#EMC EMISSION
Compliance to EN55032(CISPR32)ClassB, EN55035, EN55014-1, EN61000-3-2/3; EAC TP TC 020
#EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11,EN55014-2,EN55024, light industry level (surge L-N: 2KV), EAC TP TC 020

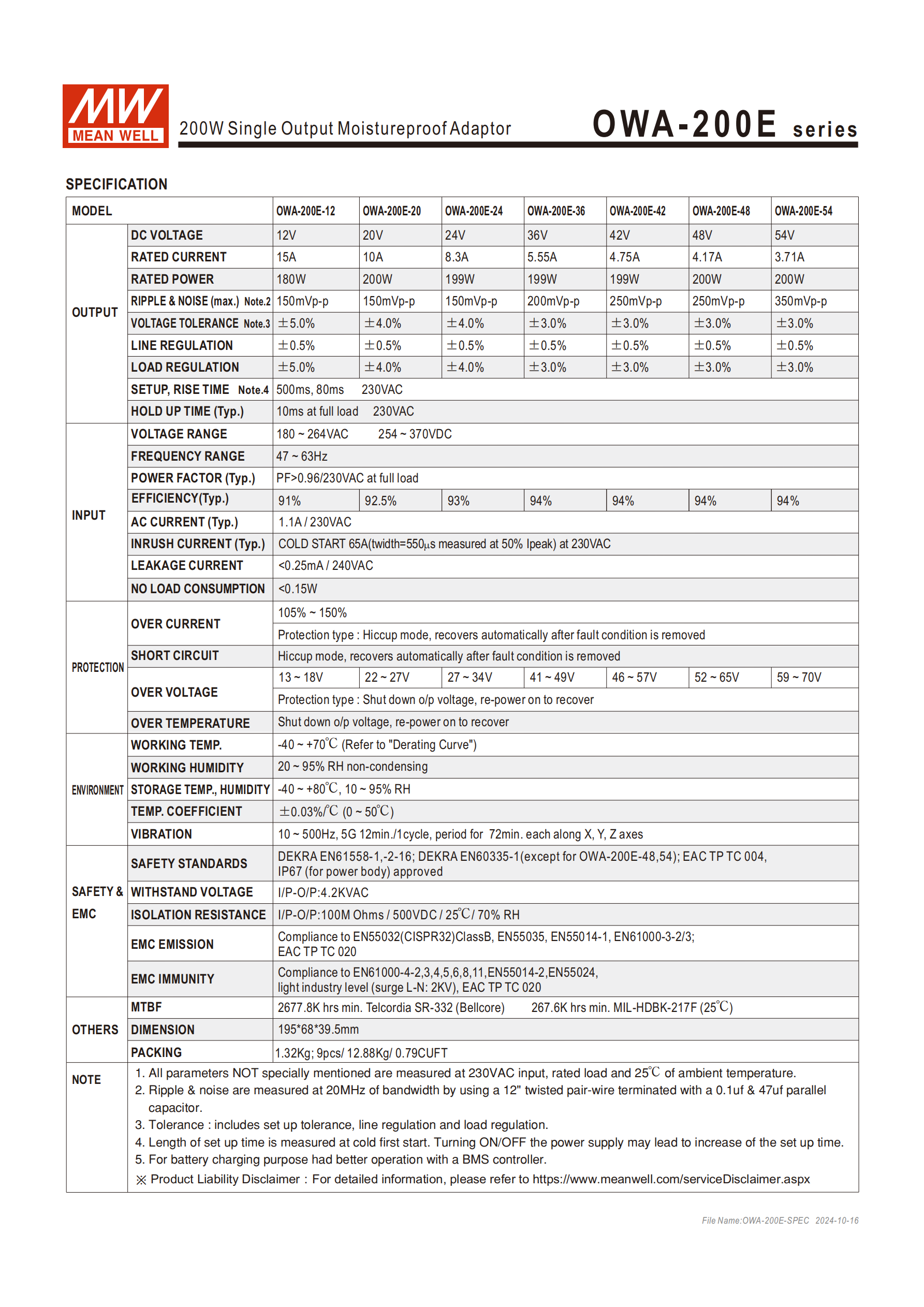

#Meanwell Power Supply OWA-200E-12 Specification

meanwell power supply OWA-200 Specification

#Meanwell Power supply 200W PWM-200 user’s manual

Meanwell Powe Supply user's Manual
