Meanwell Power supply for Industrial Business customer
Instant Quote



Meanwell Power Supply
Stable & Efficient Power Supply
whatever use for Industrial, Business Porject or Home use

UL&EMC CE TUV List / Global Support /

Get Meanwell Power Supply Catalogue

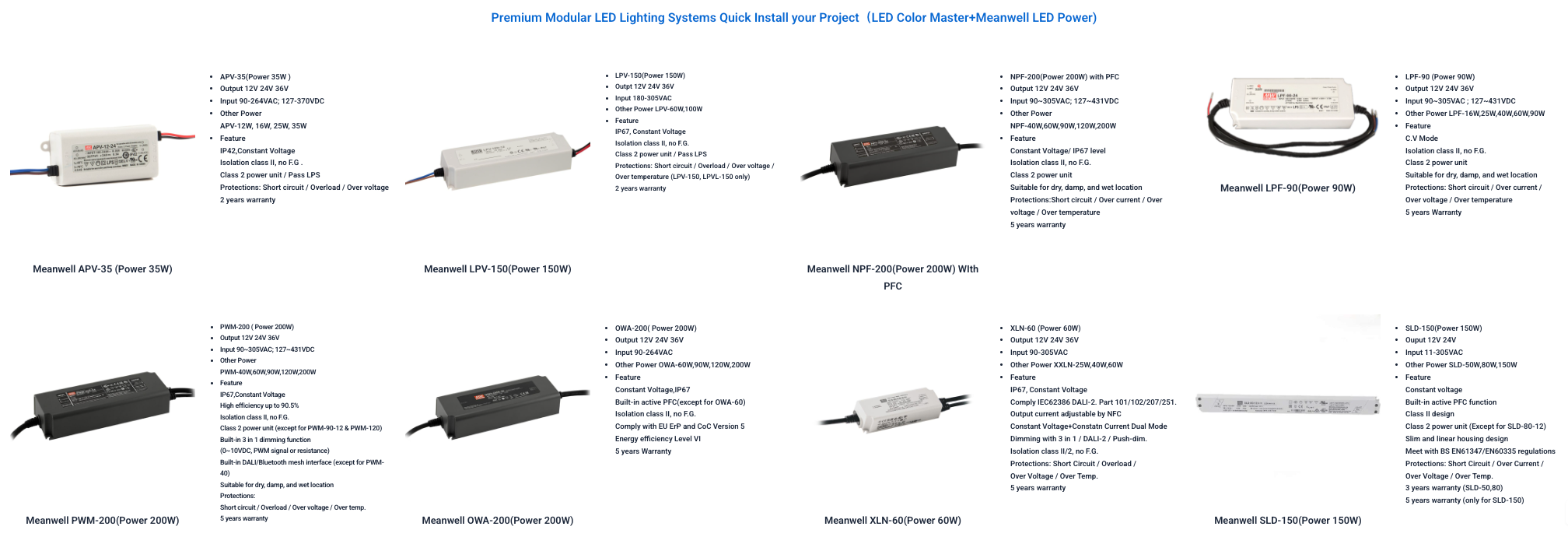

Product Show

Meanwell Pleastic case Power Supply ACDC Single output Constant Voltage LED Drivers

APV-35-12V/24V

LPV-150-12V/24V

12VDC Power Supply 200WMeanwell NPF-200 picture

NPF-200-12V/24V

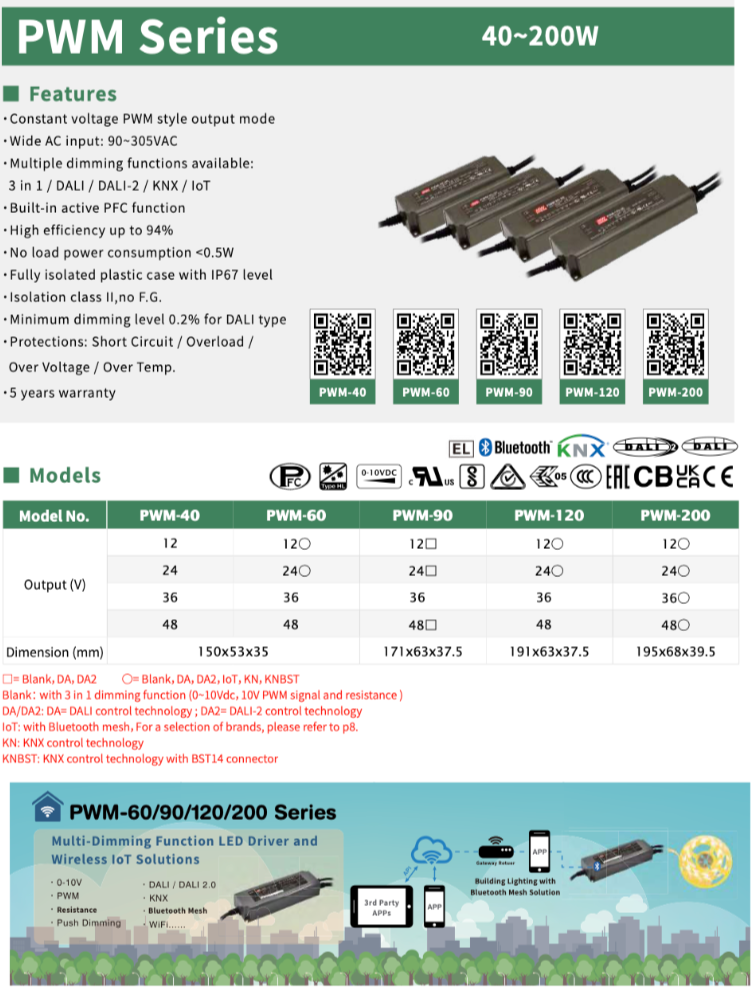

12VDC Power Supply 200W Meanwell PWM-200 IP67 DALI Dimming

PWM-200

OWA-200

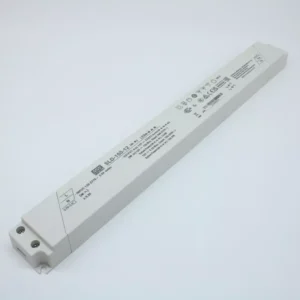

Meanwell Power Supply SLD-150 picture

SLD-150

meanwell LED Power Supply
APV-35 pic
APV-35W-12V/24V
12VDC Power supply 150W Meanwel LPV-150-12
12VDC Power Supply 200WMeanwell NPF-200 picture
12VDC Power Supply 200WMeanwell NPF-200
12VDC Power Supply 200W Meanwell PWM-200 IP67 DALI Dimming
12VDC Power Supply 200W Meanwell PWM-200 IP67 DALI Dimming

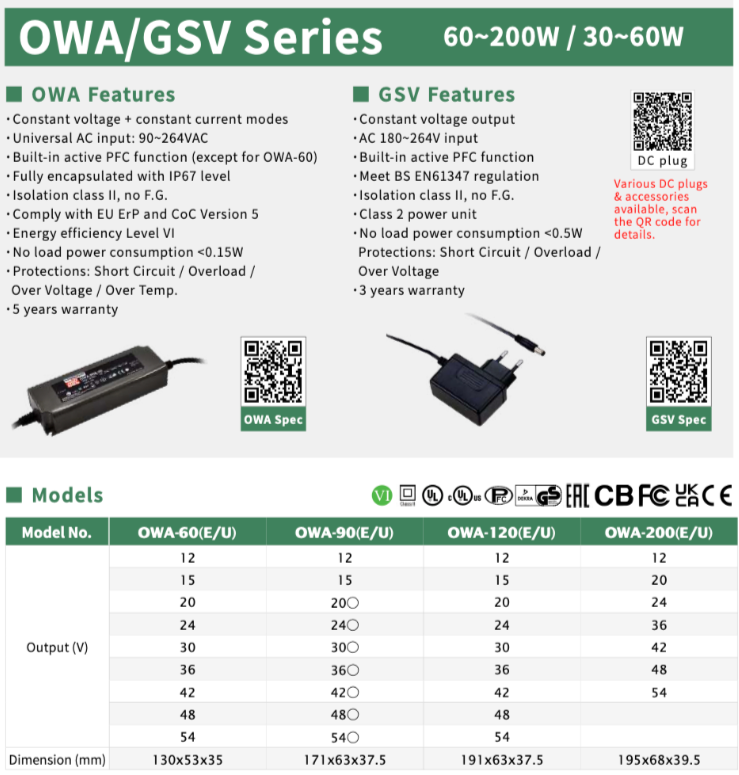

Meanwell Power Supply OWA-200E

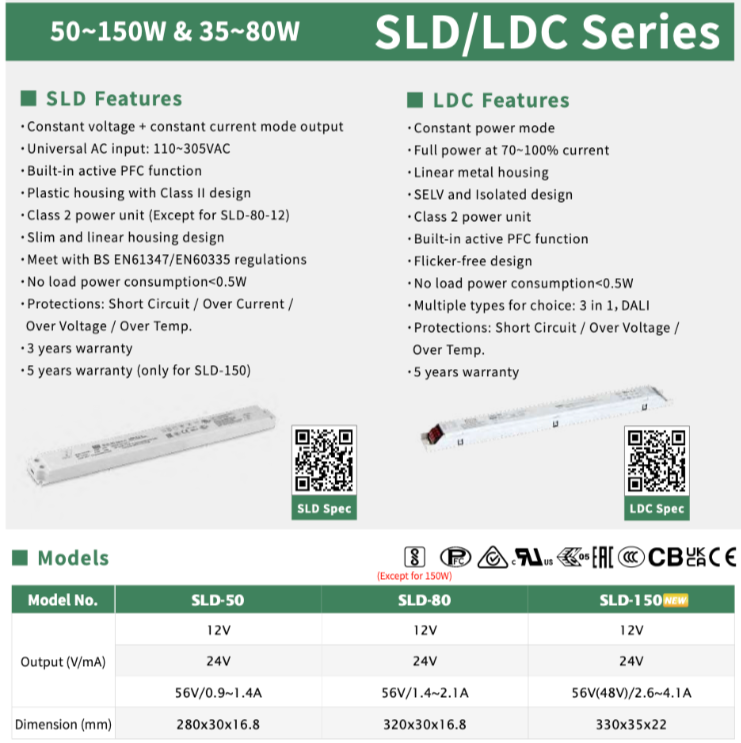

meanwell power supply SLD-150
meanwell power supply SLD-150
ModelAPV-35LPV-150NPF-200PWM-200OWA-200SLD-150
Features·Constant voltage mode power supply
·Universal AC input Full range
·Withstand 300VAC Surge input for 5 seconds
·Protections: Short circuit Over load Over voltage
·Fully isolated plastic case
·Cooling by free air convection
·Small and compact size
·IP42 design
·Class 2 power unit
·Pass LPS
·100% full load burn-in test
·Low cost, high reliability
·Suitable for LED related fixture or appliance
(such as LED Decoration or Advertisement devices)
·2 years warranty		· Constant voltage design
· 180~305VAC input for LPV-150
· Fully encapsulated with IP67 level (Note.7)
· Class II power unit, no FG
· Protections: Short circuit/Overload/Over voltage/Over temperature
· Fully isolated plastic case
· Fanless design, cooling by free air convection
· 100% full load burn-in test
· Low cost, high reliability
· Listed in UL Sign Component Manual (SAM)
· 2 years warranty		·Constant voltage+constant current modes
·V-Type: Constant voltage mode only
·Built-in 3 in 1 dimming function
(0~10VDC, PWM signal or resistance)
·Wide AC input: 90~305VAC
·No load power consumption <0.15W
(<0.5W for D-Type)
·Fully isolated plastic case with IP67 level
·Isolation class II, no F.G.
·Class 2 power unit
·Protections: Short Circuit / Over Current /
Over Voltage / Over Temp.
·5 years warranty		·Constant voltage PWM style output mode
·Wide AC input: 90~305VAC
·Multiple dimming functions available:
3 in 1 / DALI / DALI-2 / KNX / IoT
·Built-in active PFC function
·High efficiency up to 94%
·No load power consumption <0.5W
·Fully isolated plastic case with IP67 level
·Isolation class II,no F.G.
·Minimum dimming level 0.2% for DALI type
·Protections: Short Circuit / Overload /
Over Voltage / Over Temp.
·5 years warranty		·Constant voltage + constant current modes
·Universal AC input: 90~264VAC
·Built-in active PFC function
·Fully encapsulated with IP67 level
·Isolation class II, no F.G.
·Comply with EU ErP and CoC Version 5
·Energy efficiency Level VI
·No load power consumption <0.15W
·Protections: Short Circuit / Overload /
Over Voltage / Over Temp.
·5 years warranty		·Constant voltage + constant current mode output
·Universal AC input: 110~305VAC
·Built-in active PFC function
·Plastic housing with Class II design
·Class 2 power unit
·Slim and linear housing design
·Meet with BS EN61347/EN60335 regulations
·No load power consumption<0.5W
·Protections: Short Circuit / Over Current /
Over Voltage / Over Temp.
·5 years warranty (only for SLD-150)
Output12V-3A-36W
24V-1.5A-36W		12V-10A-120W
24V-8A-120W		12V-15A-180W
24V-8.3A-199.2W		12V-15A-180W
24V-8.3A-199.2W		12V-15A-180W
24V-8.3A-199W		12V-12A-144W
24V-6.3A-151.2W
Input90 ~ 264VAC; 127 ~ 370VDC180 ~ 305VAC 254 ~ 431VDC;100-305VAC;142-431VDC (47-63Hz)100~305VAC ; 142~431VDC180 ~ 264VAC 254 ~ 370VDC120~305VAC ; 170~431VDC 47-63Hz
DimmingNoNo"Built-in 3 in 1 dimming function
(0~10VDC, PWM signal or resistance)"		Multiple dimming functions available:
3 in 1 / DALI / DALI-2 / KNX / IoT
Dimming Range 0-100%		NoNo
ProtectionShort circuit ;Over load; Over voltageShort circuit/Overload/Over voltage/Over temperatureOver Current;Short Ciruit;Over Voltage;Over TemperatureOver Current;Short Ciruit;Over Voltage;Over TemperatureShort Circuit / Overload /Over Voltage / Over Temp.Short Circuit / Over Current /Over Voltage / Over Temp.
Overload Protection>105% rated output power (110% ~160% for APV-35) hiccup mode, auto-recovery110%~150% hiccup mode,
auto-recovery		95%~108% constant current limiting, auto-recovery108 ~ 135% rated output power105% ~ 150%95 ~ 108%
Over Voltage Protection110%~145% rated output voltage115%~135% rated output voltage110%~140% rated output voltage12V(13 ~ 18V);24V(27 ~ 34V)12V(13 ~ 18V);24V(27 ~ 34V)12V(14 ~ 17V);24V(28 ~ 34V)
Working Temperature#-30 ~ 70℃#-25~+65OC#-40~+90oC#-40 ~ +85℃#-40 ~ +70℃#-25 ~ +85℃
IP ratingIP42IP67IP67IP67IP67IP42
Safety &EMC Standards
Safety ListUL8750 , CSA-C22.2 No. 250.0-13, BIS IS15885, EAC TP TC 004,IP42 , BS EN/EN 62368-1 approvedUL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004,
IP67, IEC62368-1, BS EN/EN62368-1 approved		UL8750(type”HL”), CSA C22.2 No. 250.13-12,
According to BS EN/EN61347-2-13 appendix J suitable for emergency installations.
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,
EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved; Design refer to BS EN/EN60335-1		UL8750( type ”HL” ), CSA C22.2 No. 250.13-12;
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384
independent, IP67, EAC TP TC 004,GB19510.1,GB19510.14,
IS15885(Part2/Sec13)(except for 36V) approved;
Design refer to BS EN/EN60335-1,
According to BS EN/EN61347-2-13
appendix J suitable for emergency installations		DEKRA EN61558-1,-2-16; DEKRA EN60335-1(except for OWA-200E-48,54); EAC TP TC 004,
IP67 (for power body) approved		ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EN60335-1
EAC TP TC 004, GB19510.1,GB19510.14, BIS IS 15885(Part2/Sec13) approved
EMC EMISSIONCompliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ;
BS EN/EN61000-3-3;GB/T 17743, GB17625.1, EAC TP TC 020		Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ;
BS EN/EN61000-3-3,GB/T 17743, GB17625.1;EAC TP TC 020		Compliance to EN55032(CISPR32)ClassB, EN55035, EN55014-1, EN61000-3-2/3;
EAC TP TC 020		BS EN/EN55015(CISPR15)/EN55014, GB/T 17743
EMC IMMUNITYCompliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547,
light industry level(surge immunity Line-Line 2KV);EAC TP TC 020		Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;
BS EN/EN61547,
light industry level (surge immunity, Line-Line 2KV),
EAC TP TC 020		Compliance to EN61000-4-2,3,4,5,6,8,11,EN55014-2,EN55024,
light industry level (surge L-N: 2KV), EAC TP TC 020		BS EN/EN61000-4-2
List
meanwell APV-35 safety&EMC -List
meanwell APV-35 safety&EMC -List
meanwell LPV-150 safety&EMC List
meanwell LPV-150 safety&EMC List
Meanwell NPF-200 Safety&EMC List
Meanwell NPF-200 Safety&EMC List
Meanwell Power Supply PWM-200 Safety&EMC List
Meanwell Power Supply PWM-200 Safety&EMC List
meanwell Power Supply OWA-200E Safety&EMC list
meanwell Power Supply OWA-200E Safety&EMC list
Meanwell Power Supply SLD-150 Safety &EMC Standard List
Meanwell Power Supply SLD-150 Safety &EMC Standard List
DIMENSION84*57*29.5mm (L*W*H)191*63*37.5mm (L*W*H)195*68*39.5mm (L*W*H)195*68*39.5mm (L*W*H)195*68*39.5mm330*35*22mm (L*W*H)
Packing0.18Kg; 72pcs / 14Kg/ 0.92CUFT0.74Kg;20pcs/15.8Kg/0.95CUFT;1.03Kg; 12pcs/ 13.4Kg/ 0.71CUFT1.03Kg; 12pcs/ 13.4Kg/ 0.71CUFT1.32Kg; 9pcs/ 12.88Kg/ 0.79CUFT0.31Kg; 48pcs / 15.9Kg / 0.79CUFT

Why We Choose Meanwell Brand Power Supply for our Solutions.
Date 05.24 / 2024
Meanwell Power Supply have IEC,, European Norm and US Standards Quality Certifications.
Every Meanwell Power Supply Porduct Details we states  it’s Safety Standards UL and EMC Standards.

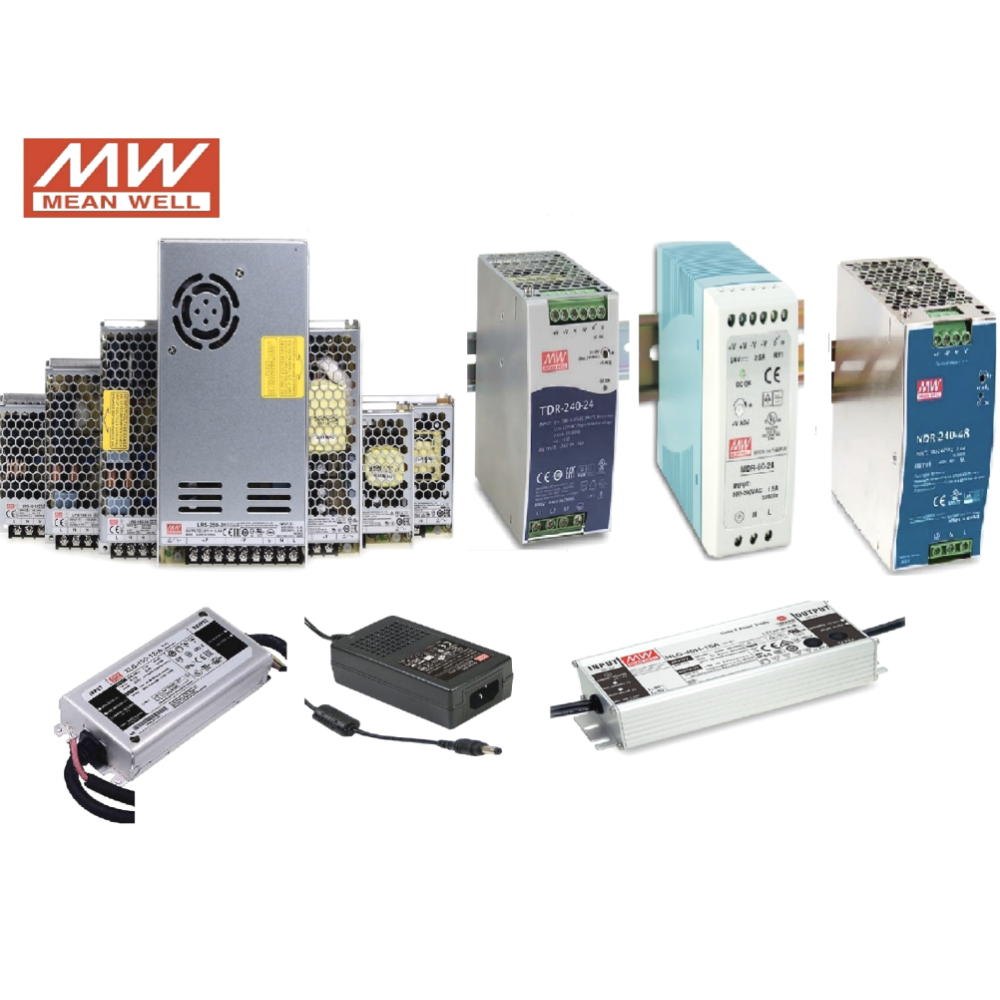

MEAN WELL’s power supplies have been used in a wide variety of electronic equipments, including factory control, IT, communication, appliances, medical, lighting, billboards, security, vehicle, etc…., which is capable of meeting your needs.

产品标签
2 Conductors 3 Conductors 5V 12AWG 12V60W 12VDC 12VDC Power Supply 14AWG 15V 16AWG 18AWG 24V 150W 200W 300V 2835 LED ACDC Constant Voltage&Current Mode DALI DALI-2 dimming Energy efficiency Level VI input 90~264VAC IP42 IP67 LPV-100-12 Meanwell Meanwell Power supply Meanwell Powe Supply NPF-200 PFC SMD chip UL2464
Meanwell wordwide company maps

ABout MEAN WELL, founded in 1982, is one of the few manufacturers worldwide dedicated to standard power supply products. According to a report by Micro Technology released in April 2025, MEAN WELL is ranked 5th among global manufacturers of power supplies (DC output). The top four companies in this sector mainly generate their revenue through ODM/OEM, whereas MEAN WELL derives 99% of its revenue from standard power supplies, following a business strategy centered around its own brand, MEAN WELL.

The global headquarters is located in the New Taipei Industrial Park in Taiwan, and has expanded branches and offices in cities including Guangzhou, Shenzhen, and Suzhou in China, California, Missouri, and New Jersey in the USA, as well as in Europe (Netherlands), India, Singapore, Hong Kong, Malaysia, and Turkey, with approximately 2,500 staff worldwide.

MEAN WELL has been working as a “reliable partner” with customers, suppliers, contractors, and employees to build long lasting mutual trust relationships based on the spirit of “good intentions.” The product lines include AC/DC power supplies, LED drivers, AC/DC battery chargers, DC/
DC converters, DC/AC inverters. We have over 10,000 standard models widely used in medical, automation, communication, LED lighting, moving sign, and office automation fields.

Meanwell Power Supply Series

Meanwell LED Power Supply(Plastic case and Metal Case Detail Models)  Index

Meanwell Plastic case Power Supply Index

Meanwell Power Supply APV-35

AC input voltage range 90~264VAC ; 127~370VDC
 Output 5V-5A, 12V-3A, 15V-2.4A,, 24V-1.5A, 36V-1.0A

Meanwell APV-35  Features
Constant voltage mode
• Universal AC input / Full range
• No load power consumption <0.5W for APV-8
• Withstand 300VAC surge input for 5 seconds (APV-25/35)
• Fully isolated plastic case with IP42 level
• Isolation class II, no F.G.
•Class 2 power unit / Pass LPS (except for APV-8)
• Economic, high reliability
• Suitable for LED strip applications
•Protections: Short circuit / Overload / Over voltage
• 2 years warranty

APV-35 Safety Standards
UL8750, EAC TP TC 004 approved, BIS IS15885(except for 15V, 36V); EN62368-1 (LVD)
EMC Standards
N55024, EN55032 class B, EN61000-3-2 class A, EN61000-3-3, EAC TP TC 020, EN61000-4-2,3,4,5,6,8,11
Wire 18AWG 2 Conductors

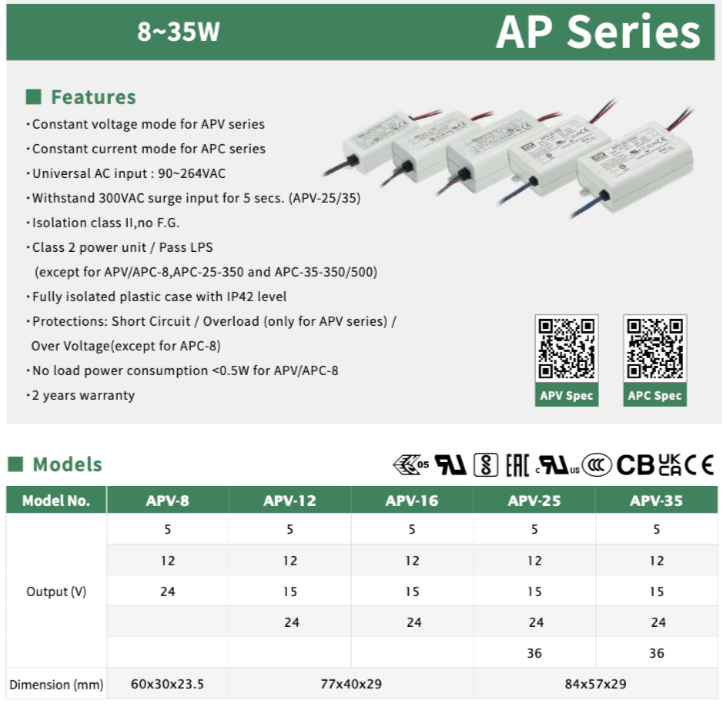

Meanwell APV Series  APV-35 Specification

Meanwell Power Supply LPV-150

AC input voltage range 180~305VAC; 254~431VDC
Output 12V-10A / 15V-8A/ 24V-6.3A / 36V-4.2A/ 48V-3.2A

meanwell LPV-150 safety&EMC List

Meanwell Power Supply LPV-150 Features
• Constant voltage mode
• LPV-60/100: 90~264VAC input LPV-150: 180~305VAC / input only LPVL-150: 90~132VAC input only
• Withstand 300VAC surge input for 5 seconds (LPV-60/100)
• Fully encapsulated with IP67 level
• Isolation class II, no F.G.
• Class 2 power unit / Pass LPS (LPV-60-12/15/24/36/48 only)
• Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires (LPVL-150 only)
• Economic, high reliability
• Suitable for LED-based decorative/architectural lighting,LED stage, theater lighting, and LED electronic displays
• Protections: Short circuit / Overload / Over voltage / Over temperature (LPV-150, LPVL-150 only)
• 2 years warranty

Safety standards
UL8750, UL879, EAC TP TC 004 approved; IEC62368-1
EMC standards
EN55032 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020; FCC part 15 for LPVL-150 only, EN55024

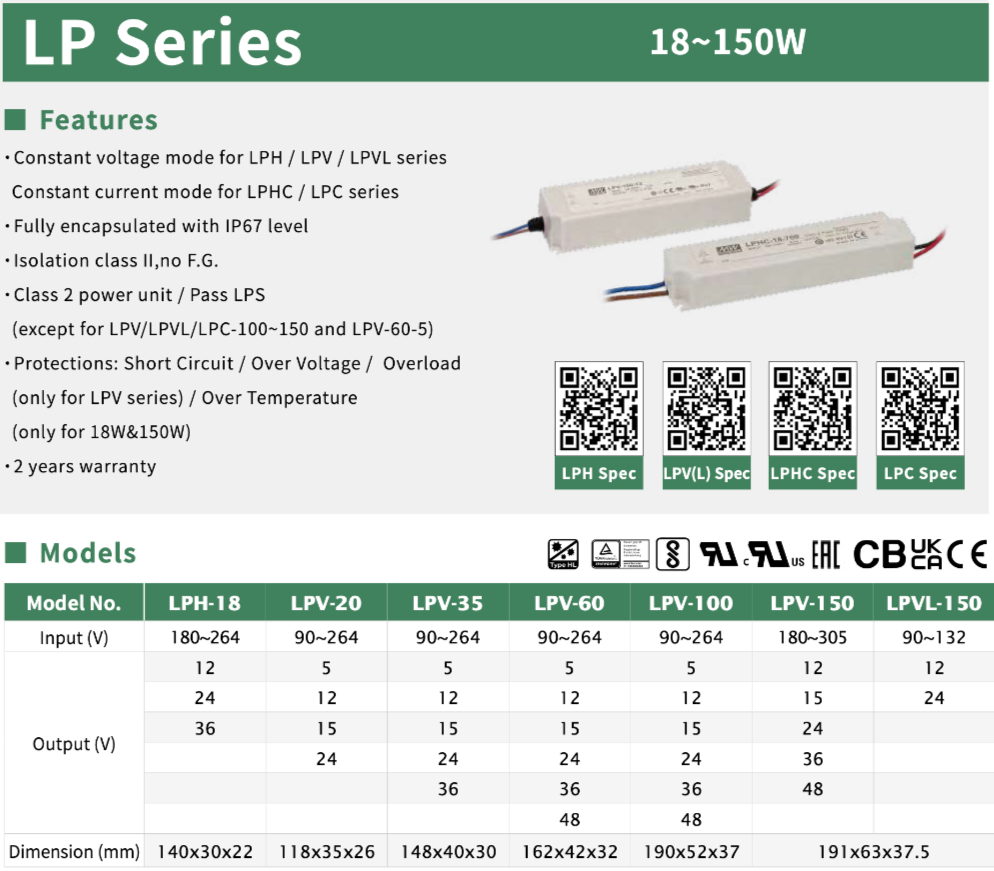

Meanwell Power Supply LPV-150 Specification

Meanwell Power Supply NPF-200

AC input voltage range 100-305VAC, 142-431VDC
Output Voltage range 12V(6-12V)-15A / 24V(12-24V)-8.3A / 36V(18-36V)-5.55A / 42V(21-42V)-4.75A / 48V(24-48V)-4.17A

Meanwell NPF-200 Safety&EMC List
12VDC Power Supply 200WMeanwell NPF-200 picture

Meanwell Power Supply NPF-200 Features
•Plastic housing with class Il and PFC design
•Constant Voltage Constant current mode output .
•Standby power consumption <0.5W
•IP67 rating for indoor or outdoor installations
•Dimming function: 3 in 1 Dimming(C.V Dim. only) to adjust output voltage level
•Flicker free Design
•Typical lifetime >50000hours
• 5 years Warranty
#Safety Standards
UL8750(type”HL”), CSA C22.2 No. 250.13-12, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved; Design refer to BS EN/EN60335-1
#EMC Emission
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
#EMC Immunity
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV); EAC TP TC 020

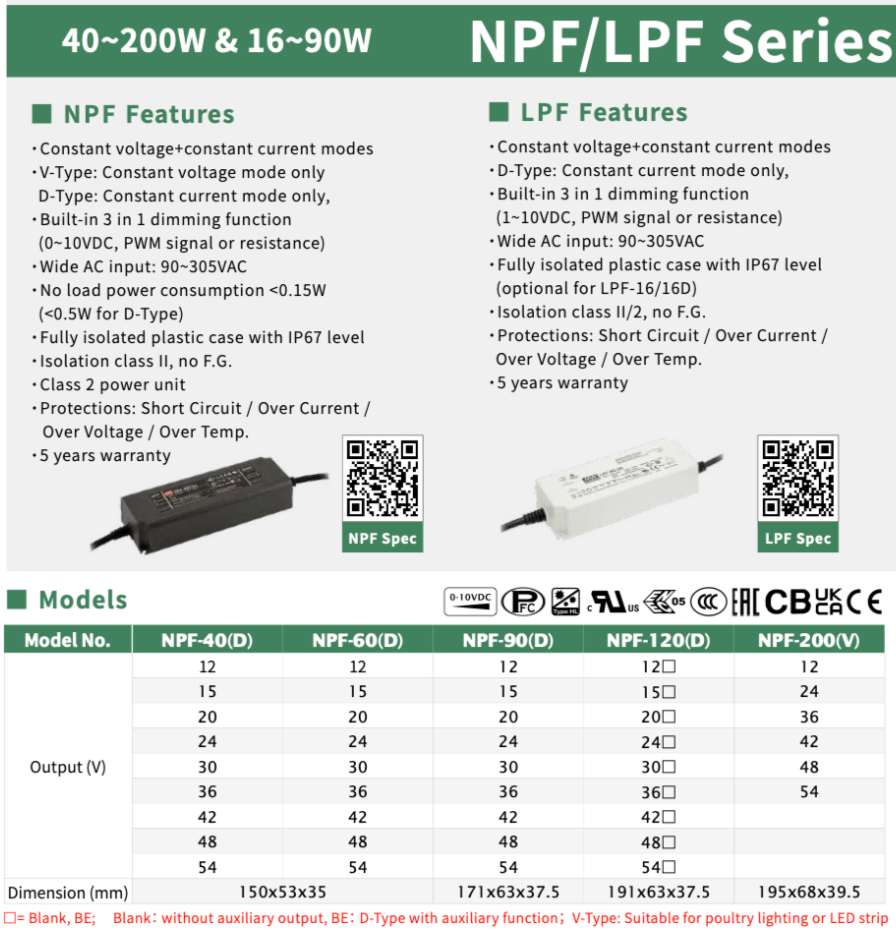

Meanwell Power Supply NPF-200 Specification
