APV-35 Sereis
Model | Output | Current | Power
APV-35-12: 12V 3A 36W
APV-35-24: 24V 2.4A 36W
APV-35-36: 36V 1.5A 36W
Input 90-264VAC; 127-370VDC 47-63Hz
Feature
IP42,Constant Voltage
Isolation class II, no F.G .
Class 2 power unit / Pass LPS
Protections: Short circuit / Overload / Over voltage
2 years warranty
LPV-150 Sereis
• Model | Output | Current | Power
• LPV-150-12: 12VDC | 8A | 120W
• LPV-150-24: 24VDC | 6.3A | 151.2W
• LPV-150-36: 36VDC | 4.2A | 151.2W
Input 180-305VAC; 254-431VDC
Feature
IP67, Constant Voltage
Isolation class II, no F.G.
Class 2 power unit / Pass LPS
Protections: Short circuit / Overload / Over voltage /
Over temperature (LPV-150, LPVL-150 only)
2 years warranty
NPF-200 Sereis. (CV+CC Dual Model)
Model | Output | Current | Power
• NPF-200-12: 6-12VDC | 15A | 180W
• NPF-200-24: 12-24VDC | 8.3A | 199.2W
• NPF-200-36: 18-36VDC | 5.55A | 199.8W
Input 100-305VAC; 142-431VDC
- Feature
Constant Voltage/ IP67 level
Isolation class II, no F.G.
Class 2 power unit
Suitable for dry, damp, and wet location
Protections:Short circuit / Over current / Over voltage / Over temperature
5 years warranty

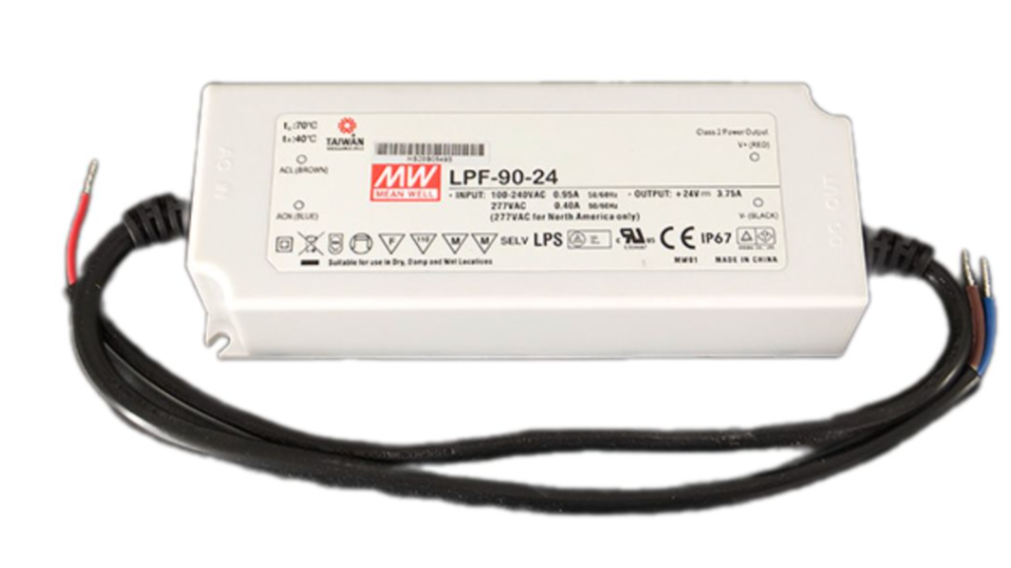

LPF-90 Series
• Model | Output | Current | Power
• LPF-90-24V: 14.4-24VDC | 3.75A | 90W
• LPF-90-36: 21.6-42VDC | 2.5A | 90.3W
• Input Voltage: 90-305VAC; 127-431VDC
Feature
C.V Mode
Isolation class II, no F.G.
Class 2 power unit
Suitable for dry, damp, and wet location
Protections: Short circuit / Over current /
Over voltage / Over temperature
5 years Warranty
PWM-200 Sereis
Model | Output | Current | Power
PWM-200-12: 12VDC | 15A | 180W
PWM-200-24: 24VDC | 8.3A | 199.2W
PWM-200-36: 36VDC | 5.55A | 199.8W
Input Voltage: 100-305VAC; 142-431VDC
Features
Constant voltage PWM style output with frequency
up to 4kHz design compliant IEEE1789-2015(Blank type)
Plastic housing with class II and PFC design
Emergency lighting application is available according to lEC61347-2-13
Standby power consumption <0.5W
Fully encapsulated with IP67 level
Function options: 3 in 1 dimming
(dim-to-off and Isolated Design)/DALI-2
Minimum dimming level 0.2% for DA2 type
Typical lifetime >50000 hrs and
5 years warranty
OWA-200 Series
Model | Output | Current | Power
OWA-200E-12: 12VDC | 15A | 180W
OWA-200E-24: 24VDC | 8.3A | 199W
OWA-200E-36: 36VDC | 5.55A | 199W
Input Voltage: 180-264VAC; 254-370VDC
Features
Input range 180~264VAC
Class II power unit, no FG
Built-in active PFC function
High efficiency up to 94%
No load power consumption <0.15W
Energy efficiency Level VI
Comply with EU ErP and CoC Version 5
Compliance to IEC/EN 61558-1,-2-16 and IEC/EN 60335-1 for household appliance
Fanless design, cooling by free air convection
Protections: Short circuit /Overload /Over voltage /Over temperature
5 years warranty
XLN-60 Sereis
Model | Output | Current | Power
XLN-60-12: 12VDC | 5A | 60W
XLN-60-24: 24VDC | 2.5A | 60W
Input Voltage: 100-305VAC; 155-400VDC
Features
Constant power mode output with multiple stage selectable by NFC setting (H-type)
Constant voltage mode output available(12/24/48V)
Plastic housing with class ll and PFC design
Meet UL8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL)application
Fully encapsulated with IP67
Minimum dimming level 0.1%(DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off)
DALI-2+ Push dimming
5 years warranty
SLD-150 Sereis
Model | Output | Current | Power
SLD-150-12: 8.4-12VDC | 12A | 144W
SLD-150-24: 16.8-24VDC | 6.3A | 151.2W
Input Voltage: 120-305VAC; 170-431VDC
Features
Constant Voltage Constant Current mode output(12/24V)
Constant power mode output(56V)
Wide input range 120-305VAC with PFC function
Compliance with BS EN/EN61347/EN60335-1 regulations
Class II power unit
Slim and Compact housing Design
No load power consumption <0.5W(12/24V)
5 years warranty
Meanwell Power Supply
Stable & Efficient Power Supply
whatever use for Industrial, Business Porject or Home use
UL&EMC CE TUV List / Global Support /
- APV-35 (Power 35W)
- Safety and EMC
- Safety Standard: UL8750 , CSA-C22.2 No. 250.0-13, BIS IS15885, EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved
- EMC Emission: Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
- EMC Immunity: Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
- LPV-150(Power 150W)
- Safety and EMC Standard
- Safety Standard: UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004,IP67, IEC62368-1, BS EN/EN62368-1 approved
- EMC Emission: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
- EMC Immunity: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
- NPF-200 (Power 200W)
- Safety and EMC Standard
- Safety Standard: UL8750(type”HL”), CSA C22.2 No. 250.13-12, According to BS EN/EN61347-2-13 appendix J suitable for
emergency installations. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,
EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved; Design refer to BS EN/EN60335-1 - EMC Emission: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3;
GB/T 17743, GB17625.1, EAC TP TC 020 - EMC Immunity: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV);
EAC TP TC 020
- OWA-200 (Power 200W)
- Safety and EMC Standard
- Safety Standard: DEKRA EN61558-1,-2-16; DEKRA EN60335-1(except for OWA-200E-48,54); EAC TP TC 004,
IP67 (for power body) approved - EMC Emission: Compliance to EN55032(CISPR32)ClassB, EN55035, EN55014-1, EN61000-3-2/3;
EAC TP TC 020 - EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8,11,EN55014-2,EN55024,
light industry level (surge L-N: 2KV), EAC TP TC 020
- PWM-200 (Power 200W)
- Safety and EMC
- Safety Standard: UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384
independent, IP67, EAC TP TC 004,GB19510.1,GB19510.14, IS15885(Part2/Sec13)(except for 36V) approved;
Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations - EMC Emission: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,GB/T 17743,
GB17625.1;EAC TP TC 020 - EMC Immunity: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity,
Line-Line 2KV),EAC TP TC 020
- XLN-60 (Power 60W)
- Safety and EMC
- Safety Standard: UL8750(type “HL” and Class P),CSA C22.2 No. 250.13-12;ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J
suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384 independent, BIS IS15885(Part2/Sec13)(NOTE 13),
GB19510.14, GB19510.1, EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13 - EMC Emission:
Parameter Standard Test Level/Note
Conducted BS EN/EN55015(CISPR15), GB/T 17743 —–
Radiated BS EN/EN55015(CISPR15), GB/T 17743 —–
Harmonic Current BS EN/EN61000-3-2, GB 17625.1 Class C @load≥60%
Voltage Flicker BS EN/EN61000-3-3 —– - EMC Immunity:
arameter Standard Test Level/Note
ESD BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods
- SLD-150 (Power 150W)
- Safety and EMC Standard
- Safety Standard: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EN60335-1
EAC TP TC 004, GB19510.1,GB19510.14, BIS IS 15885(Part2/Sec13) approved - EMC Emission:
Parameter Standard Test Level/Note
Conducted BS EN/EN55015(CISPR15)/EN55014, GB/T 17743 —–
Radiated BS EN/EN55015(CISPR15)/EN55014, GB/T 17743 —–
Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥60%
Voltage Flicker BS EN/EN61000-3-3 —– - EMC Immunity:
Parameter Standard Test Level/Note
ESD BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
- LPF-90 (Power 90W)
- Safety and EMC Standard
- Safety Standard: UL8750(type”HL”), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,
J61347-1, J61347-2-13, EAC TP TC 004, GB/T19510.1,GB/T19510.213,IP67 approved ; Design refer to UL60950-1 - EMC Emission: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,
GB/T 17743 , GB17625.1,EAC TP TC 020 - EMC Immunity: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020
-
Cables
18AWG UL2464 Power Cable 2 Conductors Stranded Electrical Wire Tinned Stranded Copper cable wire 328ft $0.95ft 100M Pack Low to $
原价为：$560.00。$310.00当前价格为：$310.00。 加入购物车 -
Cables
16AWG UL2464 Power Cable 2 Conductors Stranded Electrical Wire Tinned Stranded Copper cable wire 328ft 100M Pack Low to $1.15ft
原价为：$650.00。$370.00当前价格为：$370.00。 加入购物车 -
Cables
14AWG UL2464 Power Cable 2 Conductors Stranded Electrical Wire Tinned Stranded Copper cable wire 328ft Low to $1.35ft100M Pack
原价为：$720.00。$438.00当前价格为：$438.00。 加入购物车 -
Cables
12AWG UL2464 Power Cable 2 Conductors Stranded Electrical Wire Tinned Stranded Copper cable wire 328ft 100M Pack 12/14/16/18 Gauge 2C-3Conductors
原价为：$820.00。$492.00当前价格为：$492.00。 加入购物车 -
12VDC
Meanwell SLD-150 LED Power Supply Slim PFC with Constant Voltage & Current Dual Mode for indoor LED Lights with UL&EMC Listed
价格范围：$42.00 至 $45.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 -
12VDC
Meanwell XLN-60 LED Power Supply DALI-2 Dimming IP67 waterproof for outdoor LED Lights with UL&EMC Listed
$32.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 -
12VDC
Meanwell OWA-200 LED Power Supply Active PFC class-2 IP67 waterproof for outdoor LED Lights UL&EMC Listed
价格范围：$82.00 至 $85.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 -
12VDC
Meanwell PWM-200 LED Power Supply DALI-2 Dimming IP67 waterproof for outdoor LED Lights UL&EMC Listed
价格范围：$77.50 至 $79.50 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 -
12VDC
Meanwell NPF-200 LED Power Supply 3in1 dimming PFC CV+CC Dual output mode IP67 waterproof for outdoor work UL&EMC Listed
价格范围：$63.50 至 $65.50 选择选项 本产品有多种变体。 可在产品页面上选择这些选项
Why We Choose Meanwell Brand Power Supply for our Solutions.
Date 05.24 / 2024
Meanwell Power Supply have IEC,, European Norm and US Standards Quality Certifications.
Every Meanwell Power Supply Porduct Details we states it’s Safety Standards UL and EMC Standards.
MEAN WELL’s power supplies have been used in a wide variety of electronic equipments, including factory control, IT, communication, appliances, medical, lighting, billboards, security, vehicle, etc…., which is capable of meeting your needs.
ABout MEAN WELL, founded in 1982, is one of the few manufacturers worldwide dedicated to standard power supply products. According to a report by Micro Technology released in April 2025, MEAN WELL is ranked 5th among global manufacturers of power supplies (DC output). The top four companies in this sector mainly generate their revenue through ODM/OEM, whereas MEAN WELL derives 99% of its revenue from standard power supplies, following a business strategy centered around its own brand, MEAN WELL.
The global headquarters is located in the New Taipei Industrial Park in Taiwan, and has expanded branches and offices in cities including Guangzhou, Shenzhen, and Suzhou in China, California, Missouri, and New Jersey in the USA, as well as in Europe (Netherlands), India, Singapore, Hong Kong, Malaysia, and Turkey, with approximately 2,500 staff worldwide.
MEAN WELL has been working as a “reliable partner” with customers, suppliers, contractors, and employees to build long lasting mutual trust relationships based on the spirit of “good intentions.” The product lines include AC/DC power supplies, LED drivers, AC/DC battery chargers, DC/
DC converters, DC/AC inverters. We have over 10,000 standard models widely used in medical, automation, communication, LED lighting, moving sign, and office automation fields.
