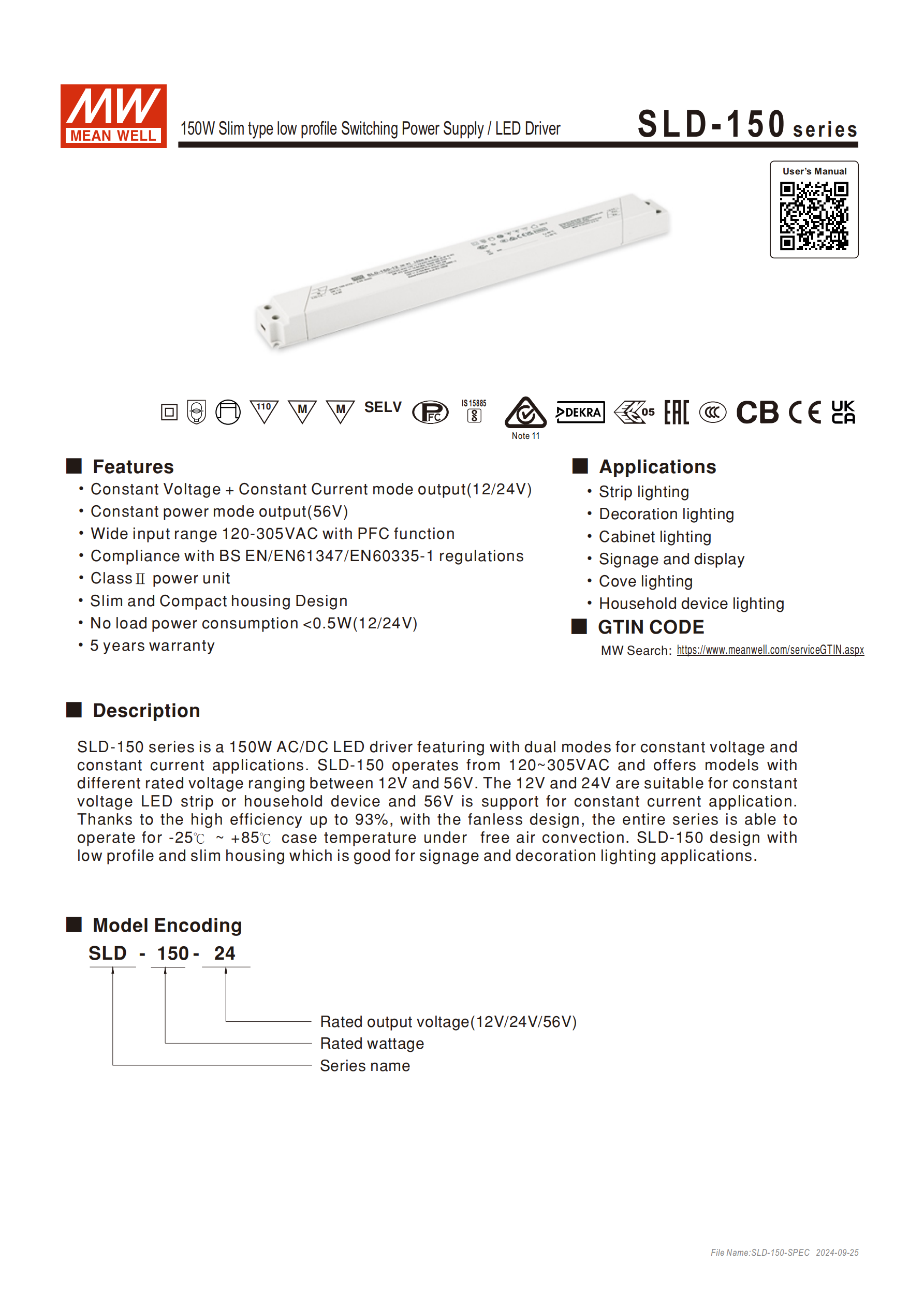

Meanwell Power Supply SLD-150 Feature, Description, Model Encoding,Application,GTIN Code

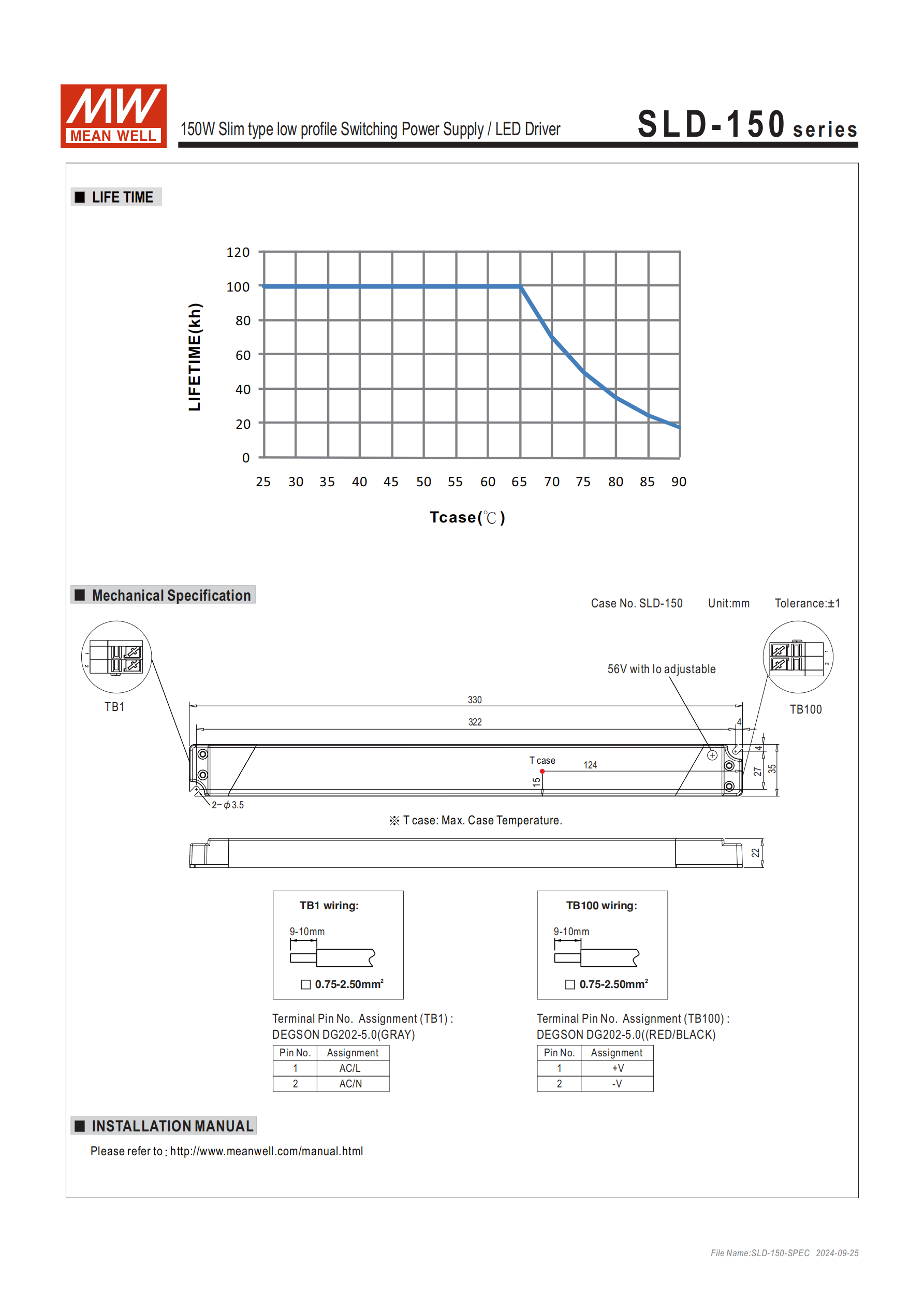

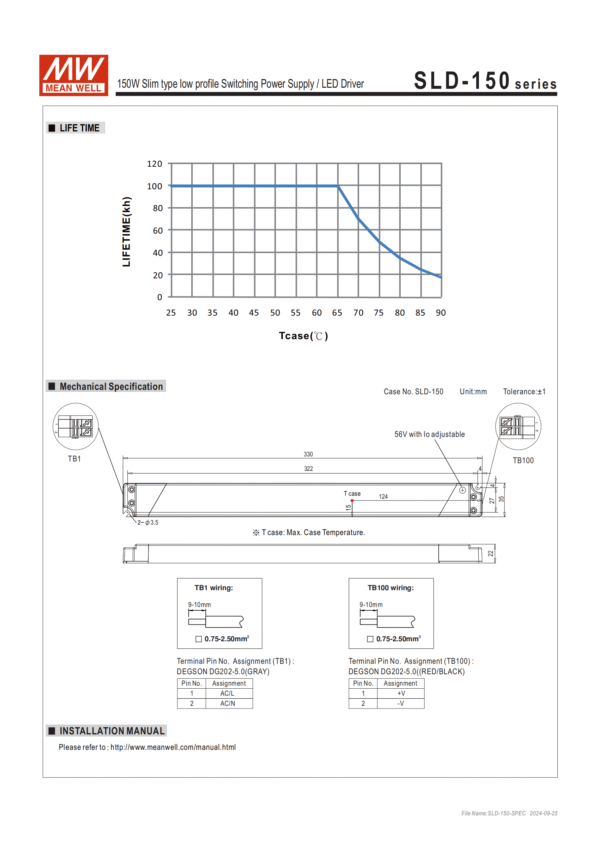

Meanwell Power Supply SLD-150 Life Time,Mechanical Specification, Installation Manual

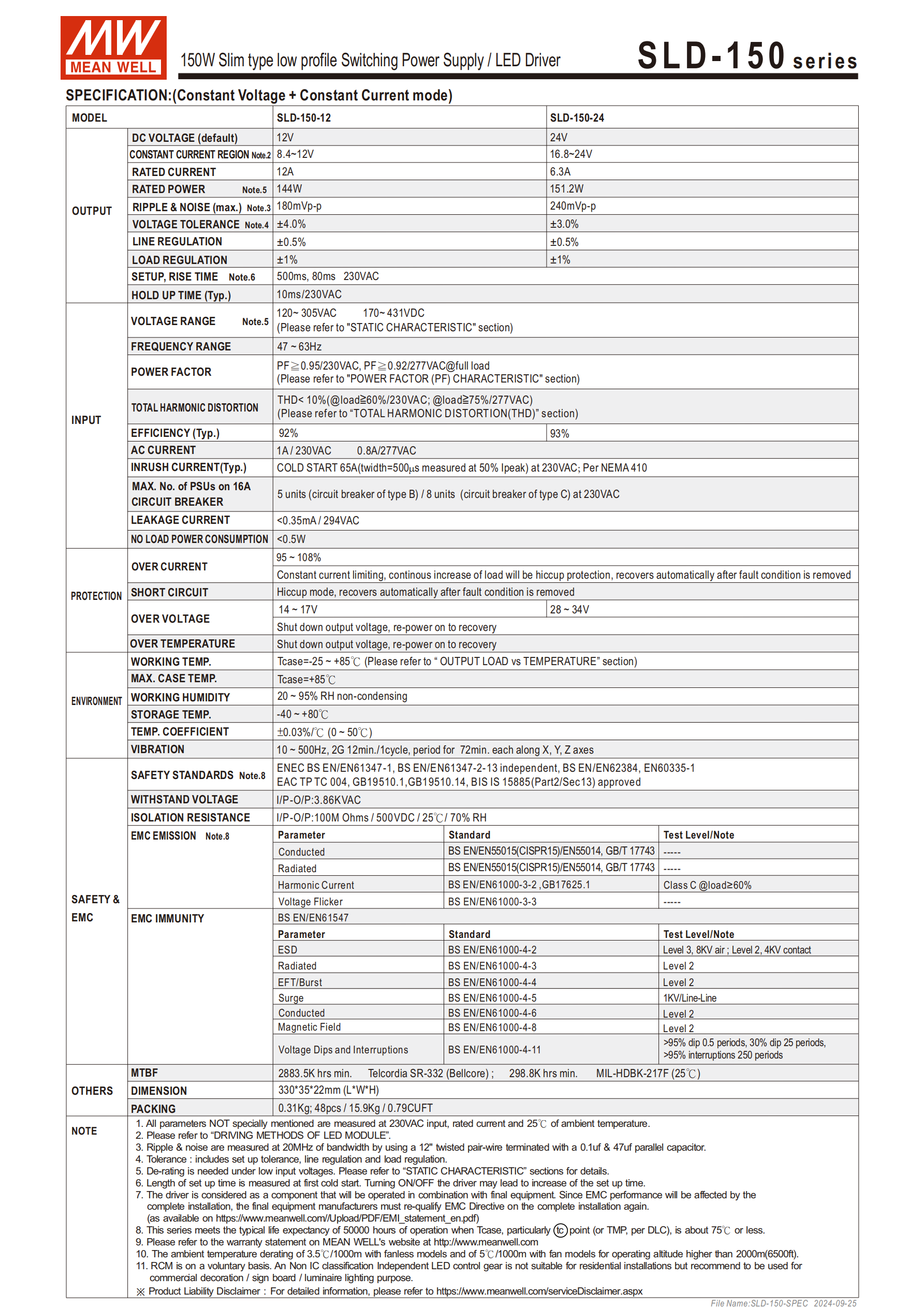

Meanwell Power Supply SLD-150 Specification (Constant Voltage+Constant Current Mode)

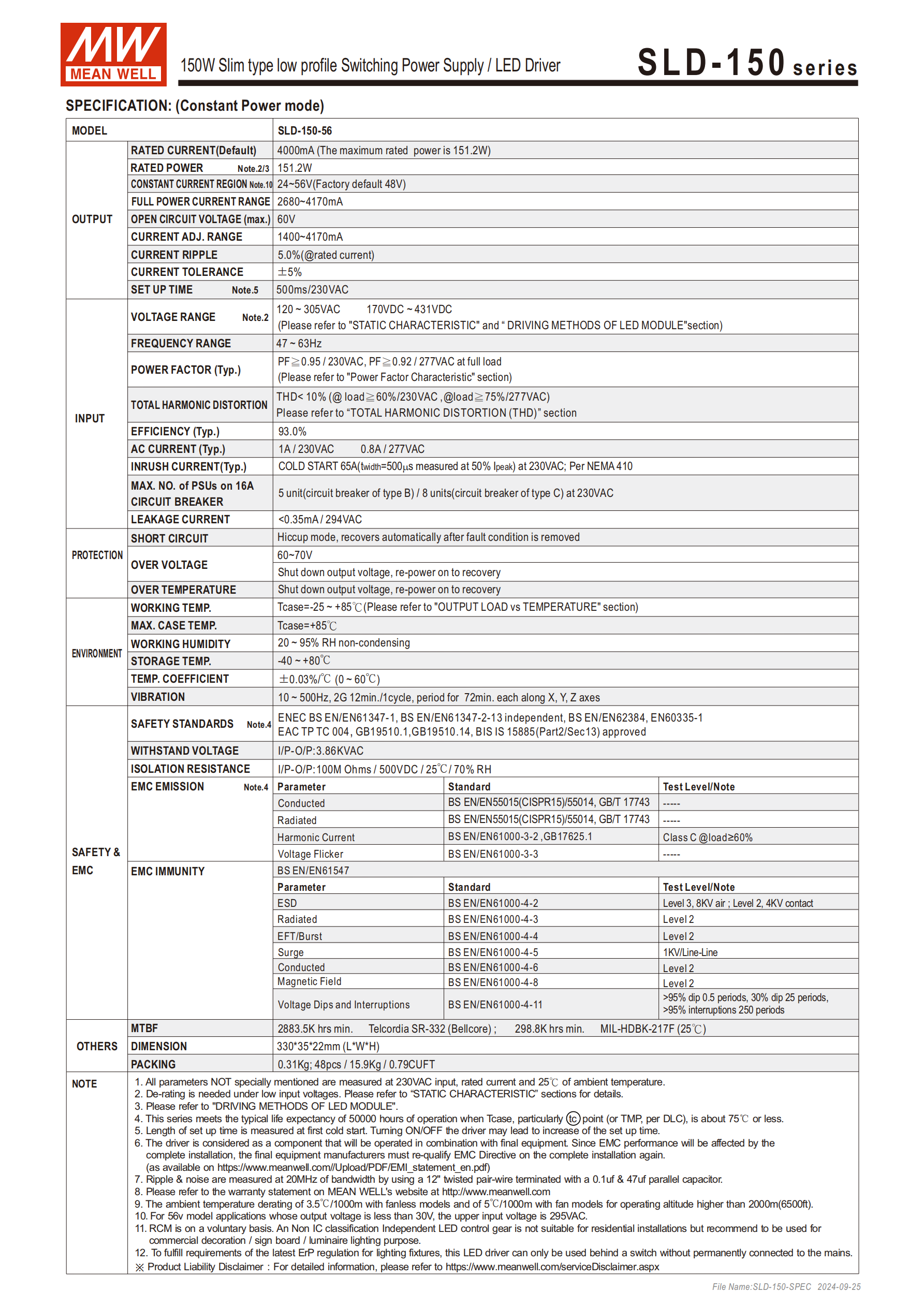

Meanwell Power Supply SLD-150 Specification (Constant power mode)

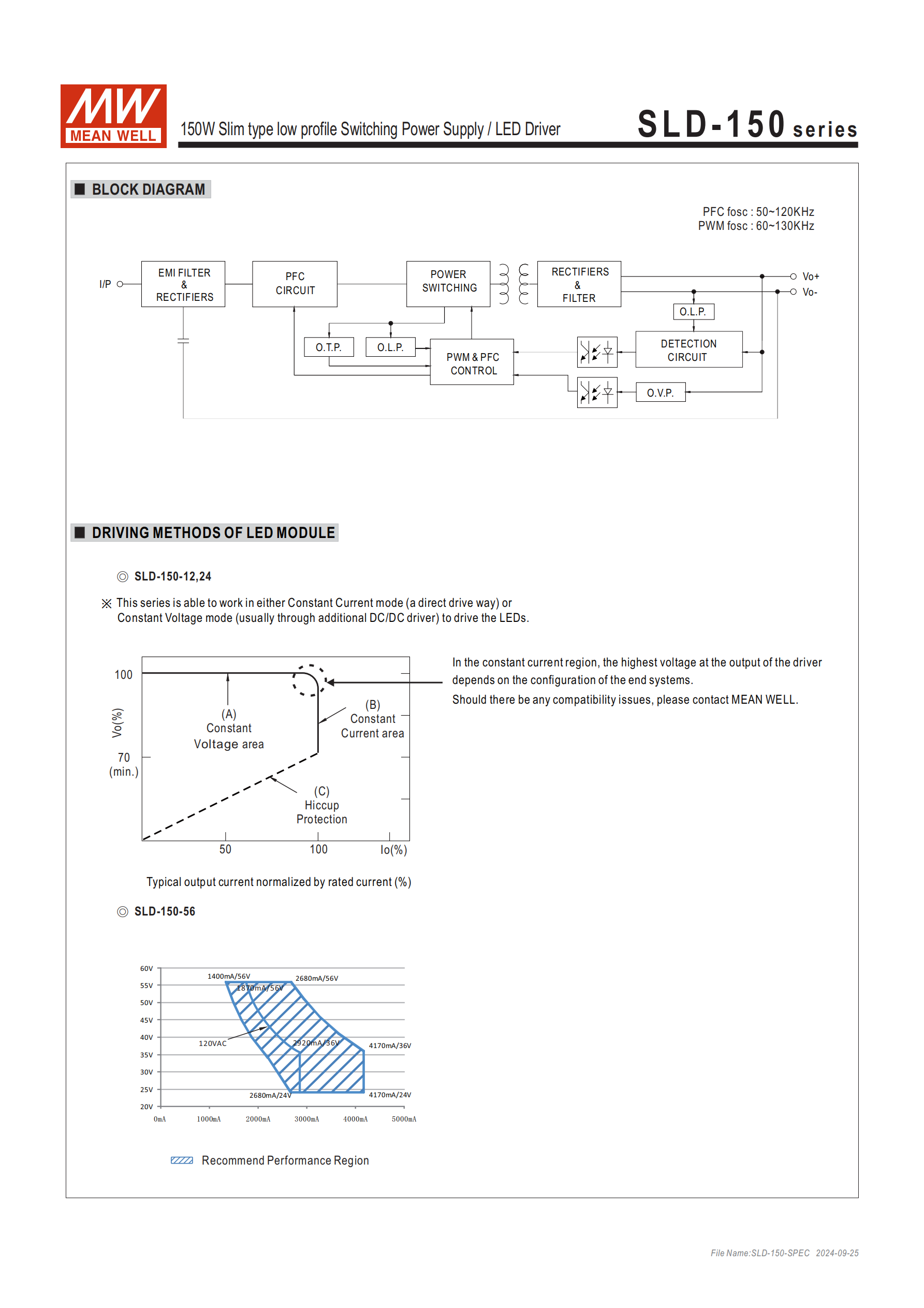

Meanwell Power Supply SLD-150 Block Diagram,Driving Methods of LED Module

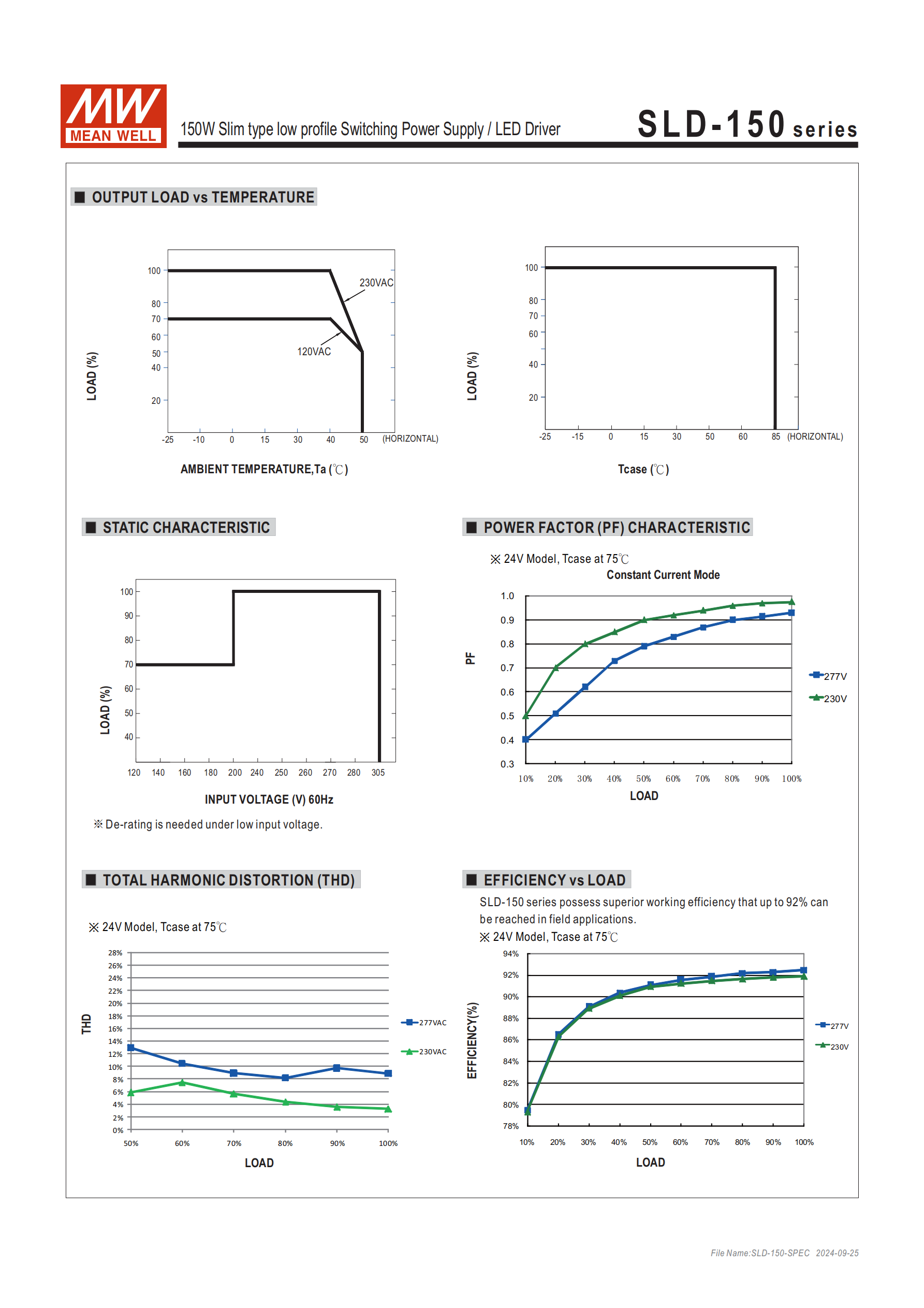

Meanwell Power Supply SLD-150 output Load VS Temperature, Static Characteristic, Power Factor(PF) Characteristic,Total harmonic Distortion(THD), Efficiency VS Load

Meanwell SLD-150 LED Power Supply Slim PFC with Constant Voltage & Current Dual Mode for indoor LED Lights with UL&EMC Listed

价格范围：$42.00 至 $45.00

Product Features
  • SLD-150 Sereis
    Model | Output | Current | Power
  • SLD-150-12: 8.4-12VDC | 12A | 144W
  • SLD-150-24: 16.8-24VDC | 6.3A | 151.2W
  • Input Voltage: 120-305VAC; 170-431VDC

Features

  • Constant Voltage Constant Current mode output(12/24V)
  • Constant power mode output(56V)
  • Wide input range 120-305VAC with PFC function
  • Compliance with BS EN/EN61347/EN60335-1 regulations
  • Class II power unit
  • Slim and Compact housing Design
  • No load power consumption <0.5W(12/24V)
  • 5 years warranty

Applications

  • Strip lighting
  • Decoration lighting
  • Cabinet lighting
  • Signage and display
  • Cove lighting
  • Household device lighting
Click here more LED Colors
Specifications

#Description
SLD-150 series is a 150W AC/DC LED driver featuring with dual modes for constant voltage and constant current applications.
SLD-150 operates from 120~305VAC and offers models with different rated voltage ranging between 12V and 56V.
The 12V and 24V are suitable for constant voltage LED strip or household device and 56V is support for constant current application.
Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for-25℃~+85℃ case temperature under free air convection.
SLD-150 design with low profile and slim housing which is good for signage and decoration lighting applications.

#Meanwell Safety &EMC Standards List

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EN60335-1 EAC TP TC 004, GB19510.1,GB19510.14, BIS IS 15885(Part2/Sec13) approved
BS EN/EN55015(CISPR15)/EN55014, GB/T 17743

Meanwell Power Supply SLD-150 Safety &EMC Standard List


#Meanwell Power supply 200W PWM-200 Specification

Meanwell SLD-150 Specification

Meanwell Power supply for Industrial Business customer

Meanwell Power Supplier Quick List, Instant Order!
From different models to different Power and Votalge

Meanwell Power Supplier APV-35

 APV-35
Power 35W
Output to LED 12V 24V 36V
Input 90-264VAC;127-370VDC
Other Power 12W, 16W, 25W, 35W
#Feature:
IP42,Constant Voltage,Isolation class II, no F.G .
Class 2 power unit / Pass LPS
Protections: Short circuit / Overload / Over voltage
2 years warranty

Meanwell Power Supplier LPV-150

LPV-150
Power 150W
Output to LED 12V 24V 36V
Input 180-305Vac,254-431VDC 47-63Hz
Other Power 60W 100W 150W
Feature
IP67, Constant Voltage,Isolation class II, no F.G.
Class 2 power unit / Pass LPS
Protections: Short circuit / Overload / Over voltage /
Over temperature (LPV-150, LPVL-150 only)
2 years warranty

12VDC Power Supply 200WMeanwell NPF-200 picture
Meanwell Power Supplier NPF-200

NPF-200
Power 200W
Output to LED 12V 24V 36V
Input 90-305VAC;127-431VDC
Other Power 40W 60W 120W 200W
Feature
Constant Voltage/ IP67,Isolation class II, no F.G.
Class 2 power unit,Suitable for dry, damp, and wet location
Protections:Short circuit / Over current / Over voltage / Over temperature
5 years warranty

Meanwell LPF LED Driver
Meanwell Power Supplier LPF-90

LPF-90
Power 90W
Output to LED 12V 24V 36V
Input 90-305VAC;127-431VDC
Other Power 16W 25W 40W 60W 90W
Feature
C.V Mode,Isolation class II, no F.G.
Class 2 power unit,Suitable for dry, damp, and wet location
Protections: Short circuit / Over current /
Over voltage / Over temperature
5 years Warranty

12VDC Power Supply 200W Meanwell PWM-200 IP67 DALI Dimming
Meanwell Power Supplier PWM-200

PWM-200
Power 200W
Output to LED 12V 24V 36V
Input 90-305VAC;127-431VDC
Other Power 40W 60W 90W 120W 200W
Feature
IP67,Constant Voltage,High efficiency up to 90.5%
Isolation class II, no F.G.,Class 2 power unit (except for PWM-90-12 & PWM-120)
Built-in 3 in 1 dimming function(0~10VDC, PWM signal or resistance)
Built-in DALI/Bluetooth mesh interface (except for PWM-40)
Suitable for dry, damp, and wet location
Protections:
Short circuit / Overload / Over voltage / Over temp.
5 years warranty

Meanwell Power Supplier OWA-200

OWA-200
Power 200W
Output to LED 12V 24V 36V
Input 180-264Vac,,254-370Vdc, 47-63Hz
Other Power 60W 90W 120W 200W
Feature
Constant Voltage,IP67
Built-in active PFC(except for OWA-60)
Isolation class II, no F.G.
Comply with EU ErP and CoC Version 5
Energy efficiency Level VI
5 years Warranty

Meanwell Powe Supply XLN-60 picture
Meanwell Power Supplier XLN-60

XLN-60
Power 60W
Output to LED 12V 24V 36V
Input 100-305Vac,,155-400Vdc, 47-63Hz
Other Power 25W 40W 60W
Feature
IP67, Constant Voltage,Comply IEC62386 DALI-2. Part 101/102/207/251.
Output current adjustable by NFC,Constant Voltage+Constatn Current Dual Mode
Dimming with 3 in 1 / DALI-2 / Push-dim.
Isolation class II/2, no F.G.
Protections: Short Circuit / Overload /Over Voltage / Over Temp.
5 years warranty

meanwell power supply SLD-150
Meanwell Power Supplier SLD-150

SLD-150
Power 150W
Output to LED 12V 24V 36V
Input 120-305VAC;170-431VDC
Other Power 50W 80W 150W
Feature
Constant voltage,Built-in active PFC function
Class II design,Class 2 power unit (Except for SLD-80-12)
Slim and linear housing design,Meet with BS EN61347/EN60335 regulations
Protections: Short Circuit / Over Current / Over Voltage / Over Temp.
3 years warranty (SLD-50,80)
5 years warranty (only for SLD-150)
