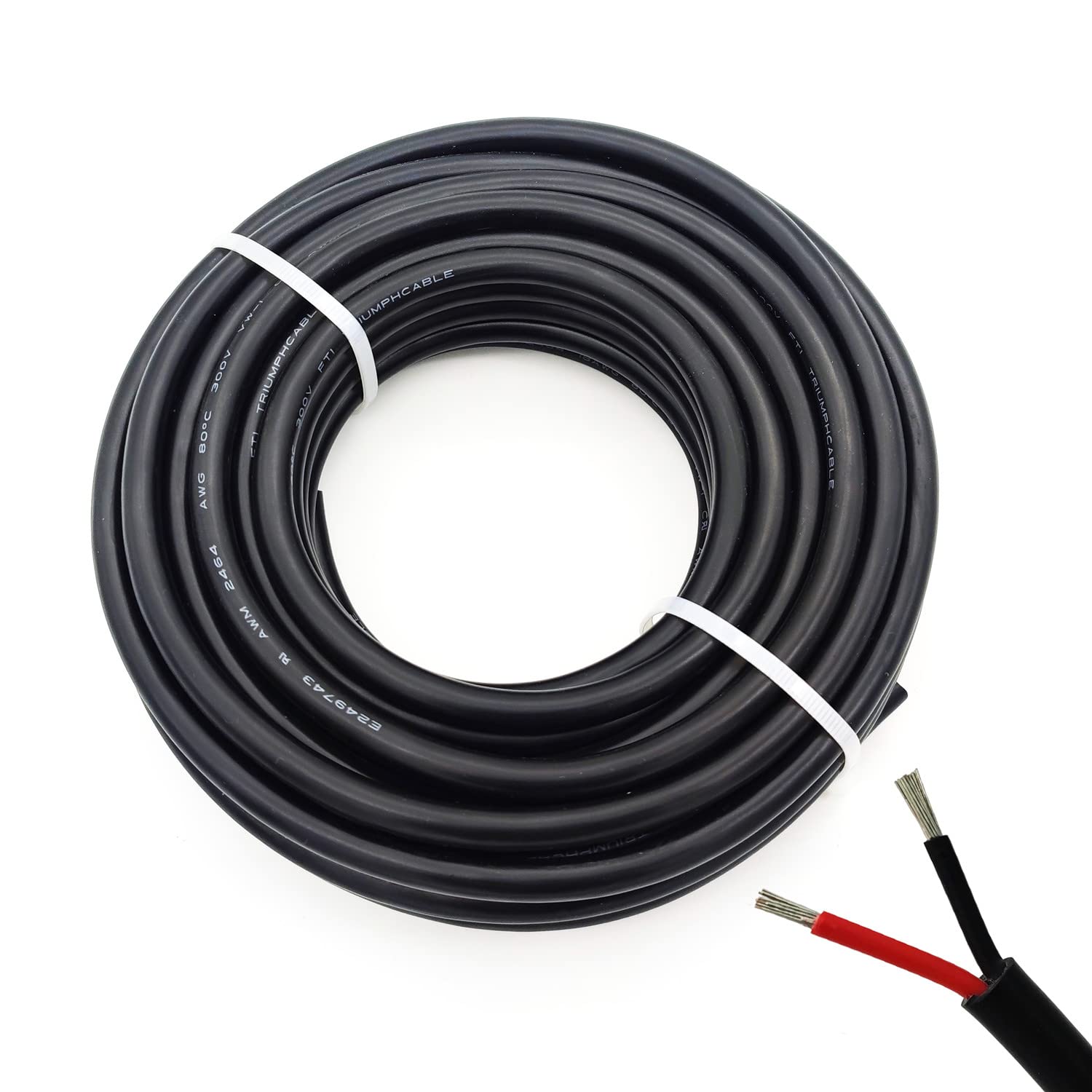

14AWG UL2464 Power Cable 2 Conductors Stranded Electrical Wire Tinned Stranded Copper cable wire 328ft Low to $1.35ft100M Pack

原价为：$720.00。当前价格为：$438.00。

Product Features

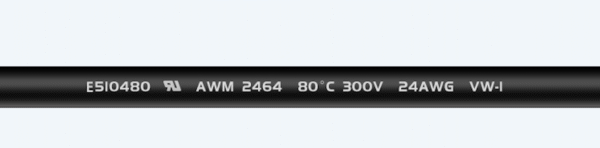

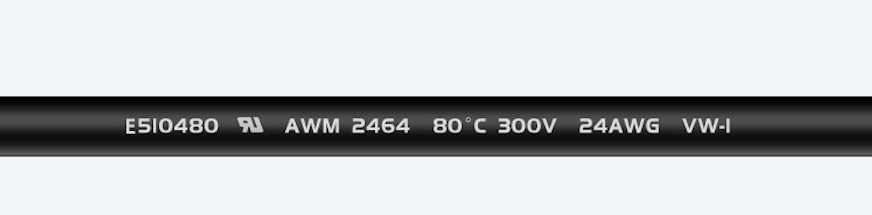

UL 2464 List 14AWG Wire E510480 AWM 2464 80℃ 300V 12AWG VW-1
Feature
1.Outside diameter of Jacket 7.1mm Typ. outside diameter of inner conductor insulation 2.7mm Typ.

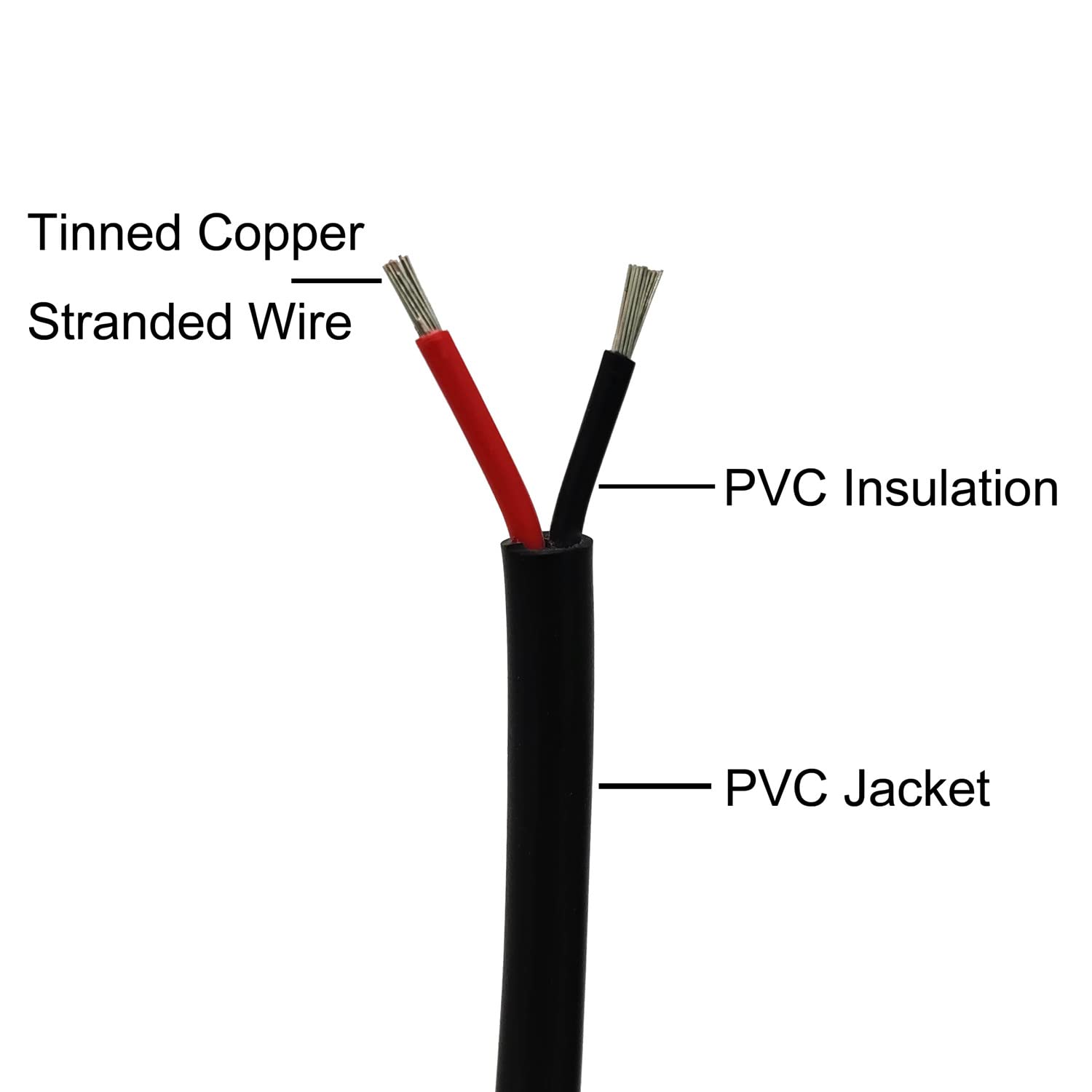

2.Jacket material: PVC (flexible flame retardant) Insulation: PVC Conductor: tinned stranded copper
3.Conductors: 14 AWG (PVC insulated conductors red yellow and black) Rated voltage 300V, rated temperature 80°C
4.Round cord seals well into standard cord gland / cable grips.
5.Applications: LED light power cord, street light power cord, indoor lighting cable, car light cable, electronic product internal cable, computer power cable

Specifications

Specification

UL2464 List under UL758 Standard List 14AWG wire cable  Length 328ft 100Meters Pack

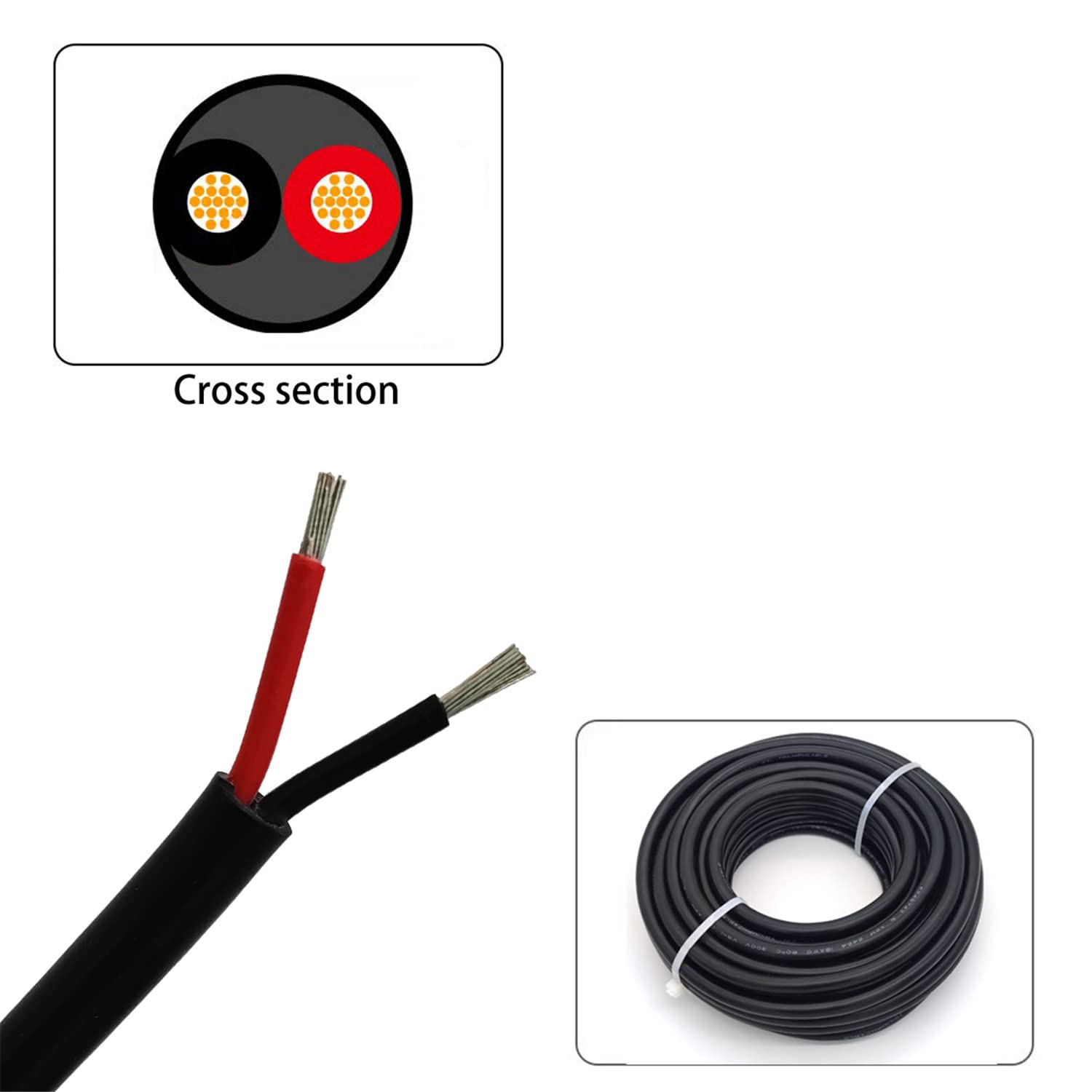

  • 2 Conductors
  • 14AWG
  • Conductor Diameter 2.7mm
  • Jacket Diameter 7.1mm
  • PVC Jacket

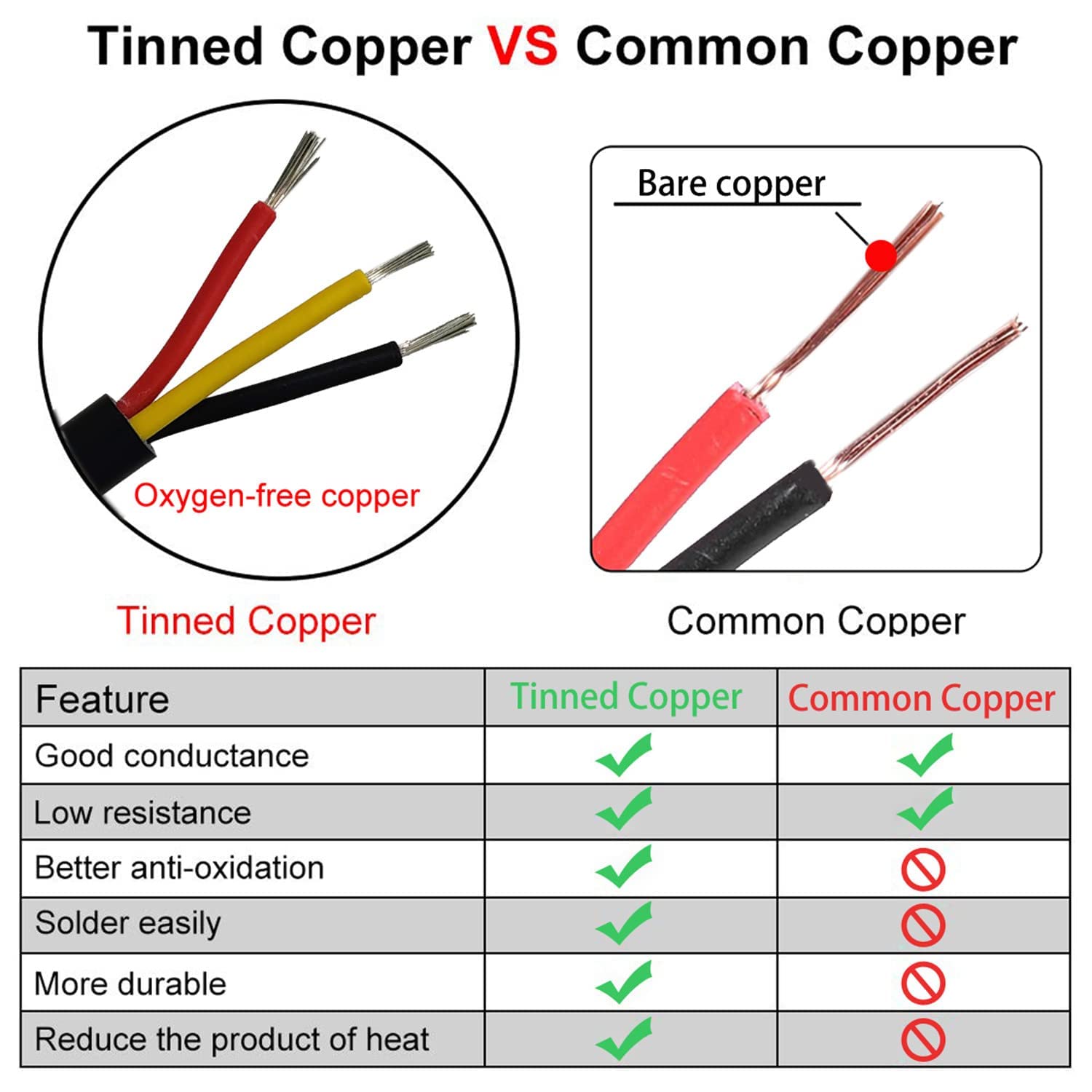

  • Tinned Stranded Copper
  • Voltage Test (AC V/min). 2000
  • Conductor Resistance Test (Ω/KM20℃) 5.64
  • Insulation Resistance (Ω/KM20℃) 10
  • TENSILE STRENGTH(MIN) 10.3 MPa
  • ELONGATION(MIN) 100%

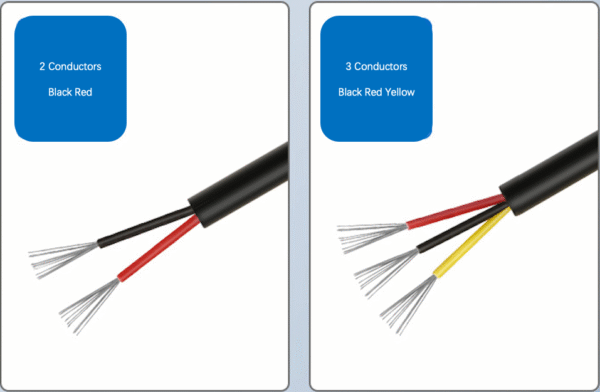

  • INSULATION Jacket color
  • 2 Conductors Black& Red

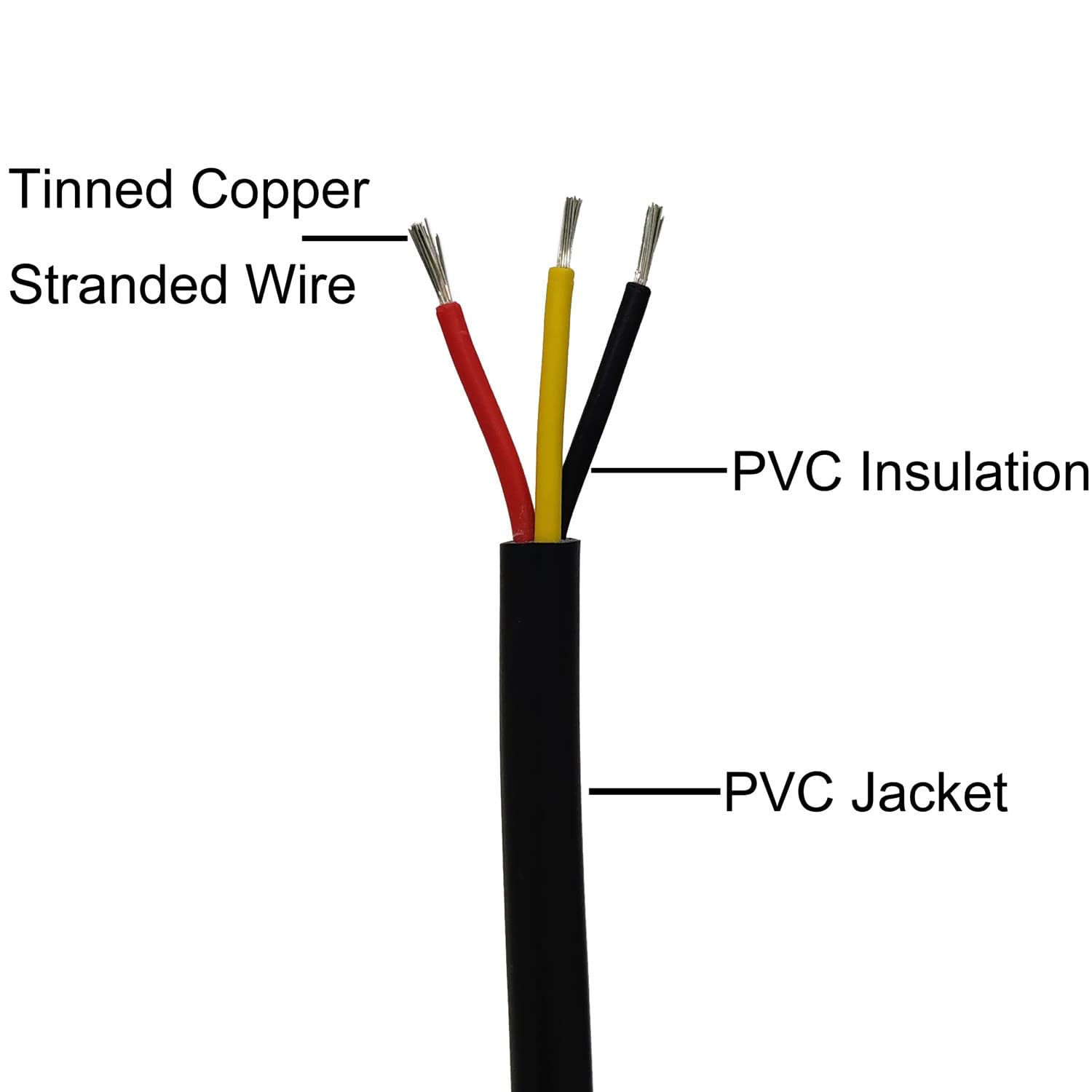

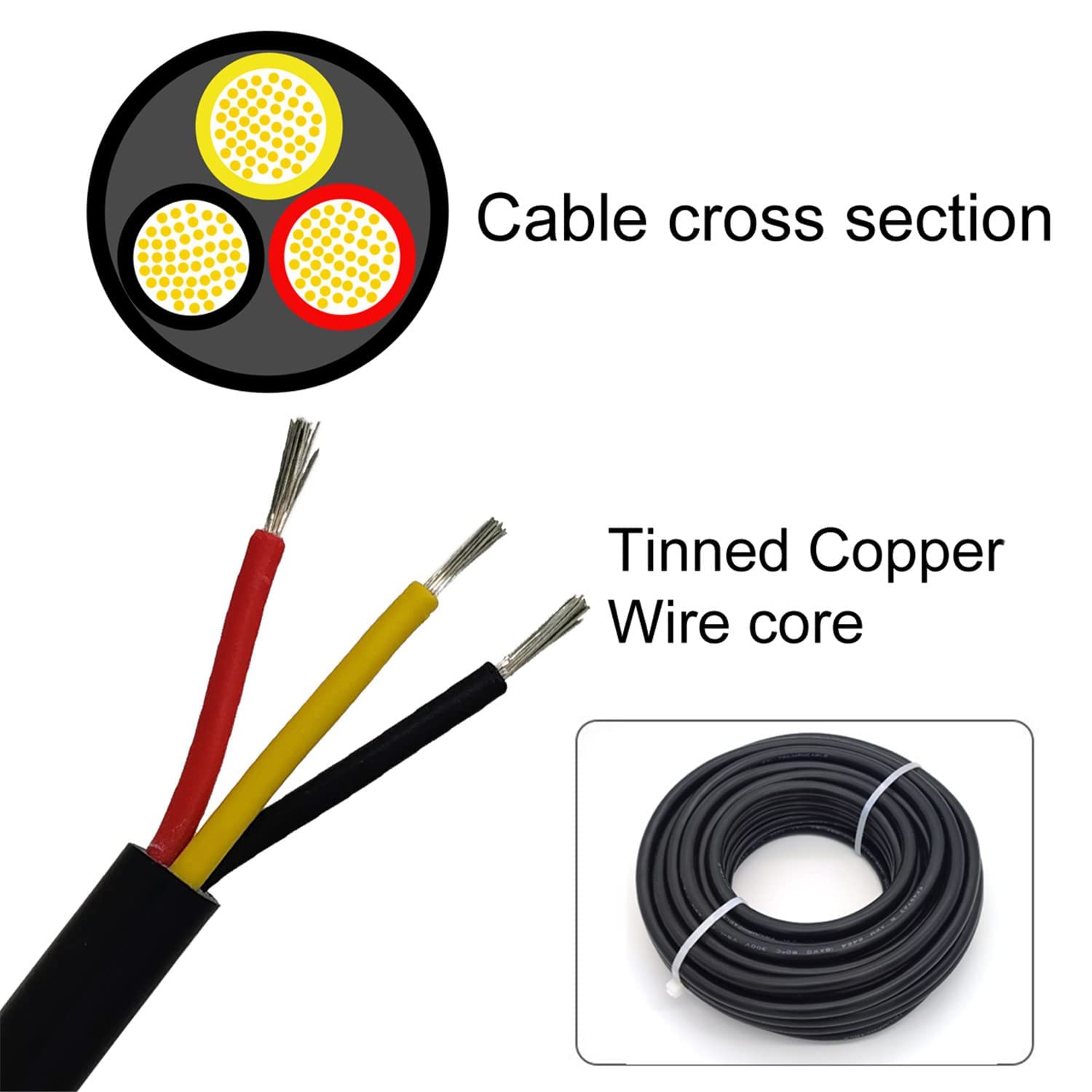

  • 3 Conductors Black,Red,Yellow

Application
AWG14
Standard Lighting & Low-Power Outlets:
– Lighting Circuits: Most indoor lighting.
– General Purpose Outlets: Less demanding general outlets (especially in older homes or for lighting circuits).
– Ceiling Fans: Dedicated fan circuits.
– Thermostat Wiring: Some older or simpler HVAC control.
Characteristics: Thinner, more flexible, and more economical than 12 AWG, ideal for loads where the higher ampacity of 12 AWG isn’t needed.



UL 2464 List 12/14/16/18 Gauge AWG Wire E510480 AWM 2464 80℃ 300V  Price List 328ft 100Meter Pack Price List for Customer Order

12 Gauge AWG
#2 Conductors Low to $1.5ft (328ft $492.0)
#3 Conductors Low to $1.75ft (328ft $547.0)

14 Gauge AWG
#2 Conductors Low to $1.35ft (328ft $442.0)
#3 Conductors Low to $1.5ft (328ft $492.0)

16AWG
#2 Conductors Low to $1.15ft (328ft $377.0)
#3 Conductors  Low to $1.3ft (328ft $426.0)

18AWG
#2 Conductors Low to $0.95ft (328ft $311.0)
#3 Conductors Low to $1.15ft (328ft $377.0)
