2835 SMD LED Chips High Brightness 0.2W 0.5W 1W (0.2W 40lumens)(0.5W 60Lumens) (1W 130Lumens)

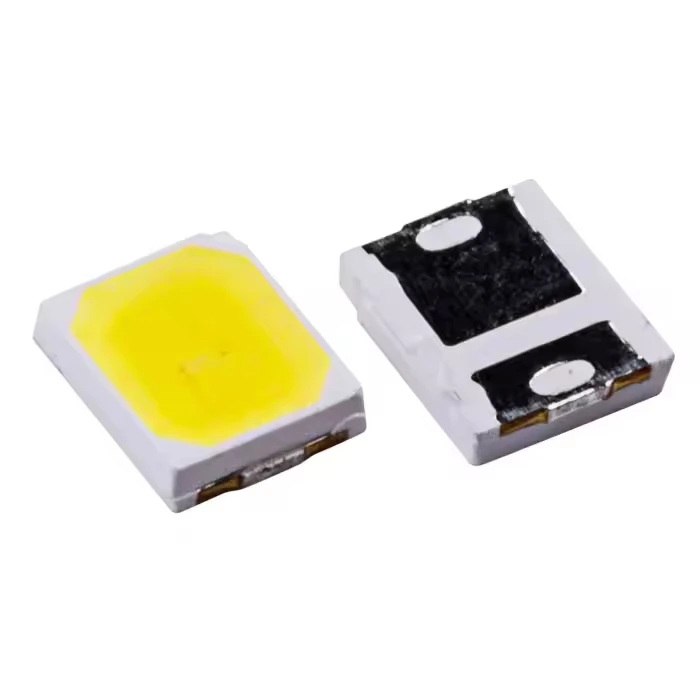

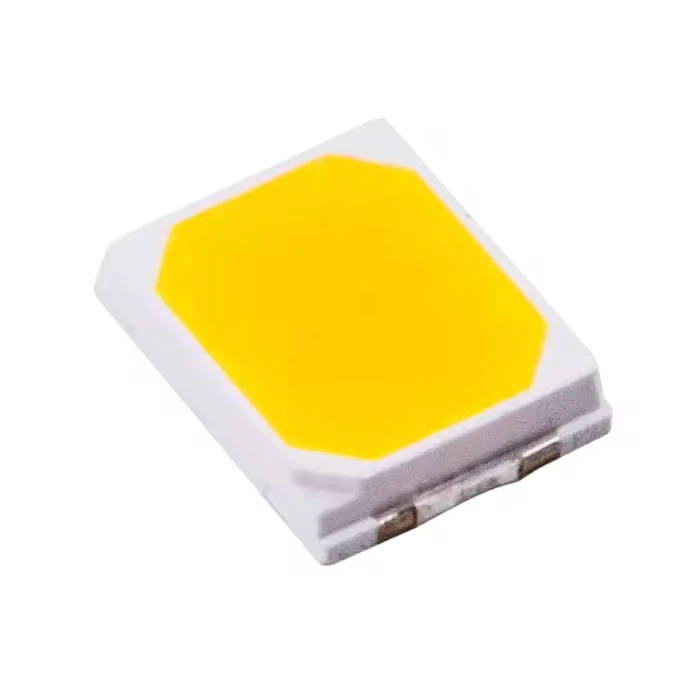

2835 SMD LED chips

#Product Description
Specification:
Dimensions: 2.8 X 3.5 X 0.8 (mm)
Luminous color:
white (6000K-6500K)
warm color 3000-3200K
cool color: 6500-8000K
natural white: 4000-4200k
Luminous intensity: (0.5W 60-65LM) (1W 130-140LM)
Viewing angle: 120 degrees.
Forward voltage/current: (0.5W 150MA) (3.2V-3.4V 300mA) (6.2-6.4V 150MA) (9.0-9.4V 100MA) (18-20V 60MA)) (30-32V 20MA)
Polarity: see back arrow

#Emitting Color
Warm White/Natural white/Day White/Cold white/Yellow Gloden/Red/Yellow/Amber/Orange/Royal Blue/Ice blue/Cyan/
Green/Deep RED/IR /UV/Nir Red/ RGB/ BI-Color
#Wavelength
1800-2000K/2700-3200k/3800-4200k/5000-5500k/6000-6500k/7000k-8000k,10000k
365nm/380nm/395nm/400nm/420nm/440nm/450nm/460nm/470nm/480nm/500nm/520nm/
560nm/570nm/585nm/595nm/600nm/620nm/630nm/640nm/660nm/700nm/730nm/810nm/830nm/850nm/940nm/1050nm
#Angle
10°/15°/30°/40°/60°/100°/120°

#Application
LED Panel light
LED bulb light
LED tube light
LED strip light
LED spot light etc.

#Packaging & Shipping
The packing way of product 2 years warranty Taiwan Chip SMD 9V 2835 LED 0.5W 65-70lm :
Inner packing: by roll, 18000pcs/roll
Outer packing: by cartons.

#Material Advantage
Well Know Chip Brand
(Epileds,Epistar)
Red Copper Frame
Dow Corning Silicone Glue
100% Power enough for each led
50000hours work time when the working tempurature lower than 60degree
1μm 99.99% golden wire(Some Supplier Use Alloy Wire )

#Why Choose our Manufacture
2 years warranty
Over 10 years work experience technical service team
24 hours service Professional sales team
Free Sample is available
Fast delivery
100% QC inspection Before Shippment
Aiming at the consult of “high quality, zero defect”, give you the best quality, best service.
we are OEM/ODM manufacture, we can custom made it ,please let me know your requirement
