12VDC Power Supply 200W Meanwell PWM-200 IP67 DALI Dimming

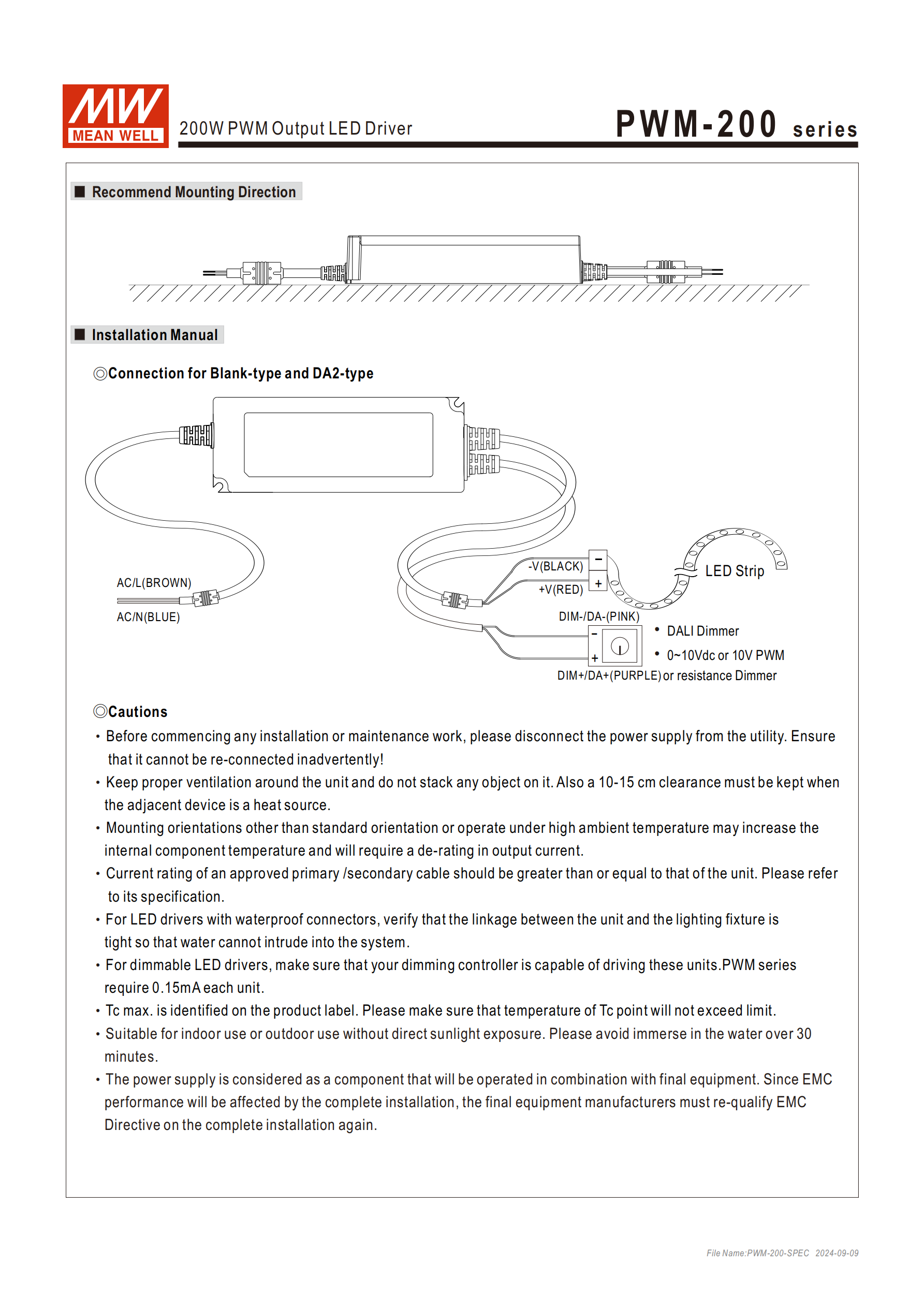

meanwell Power supply 200W PWM-200 recommend mounting direction, installation manual

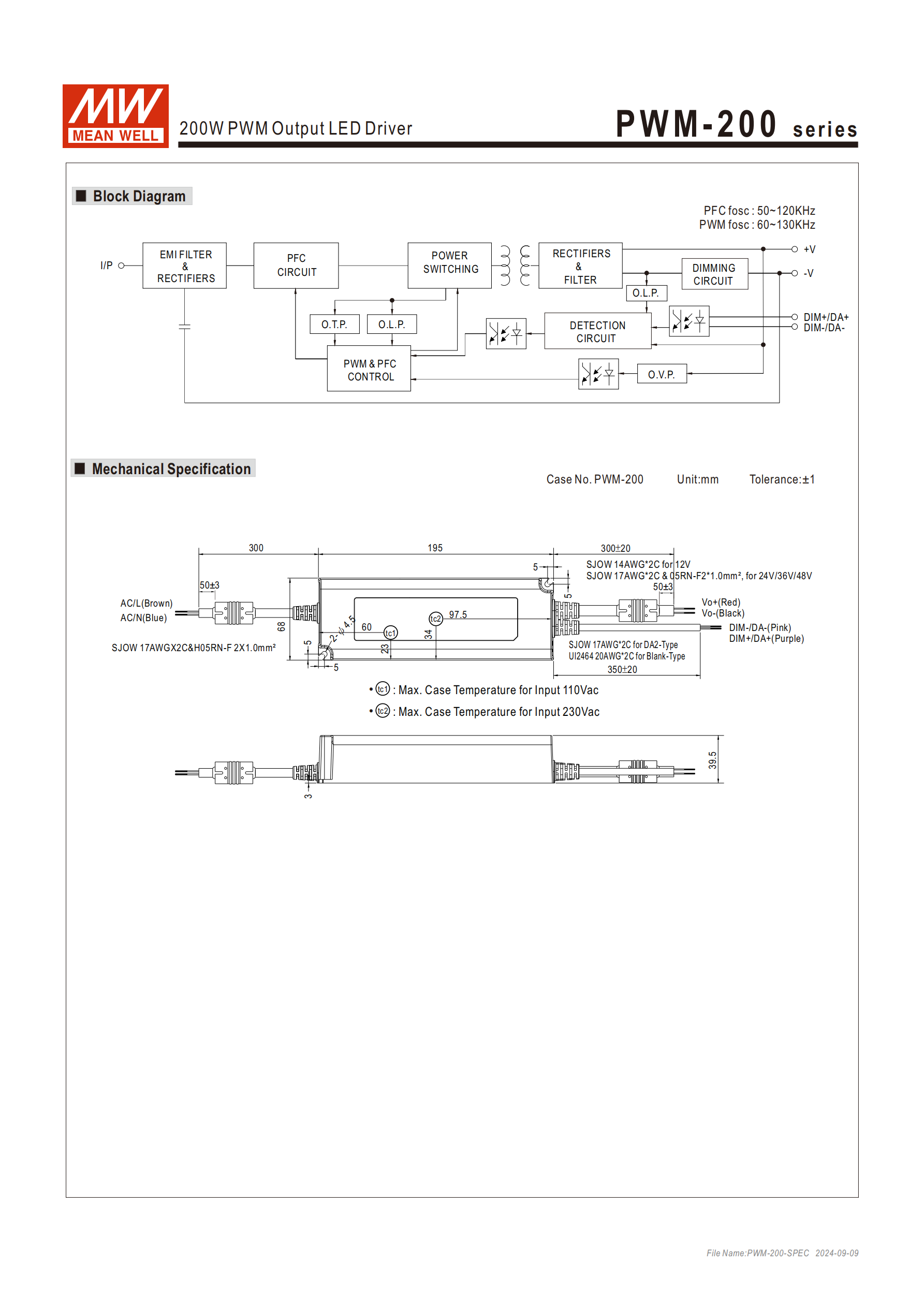

meanwell Power supply 200W PWM-200 Block Diagram,Mechanical specification

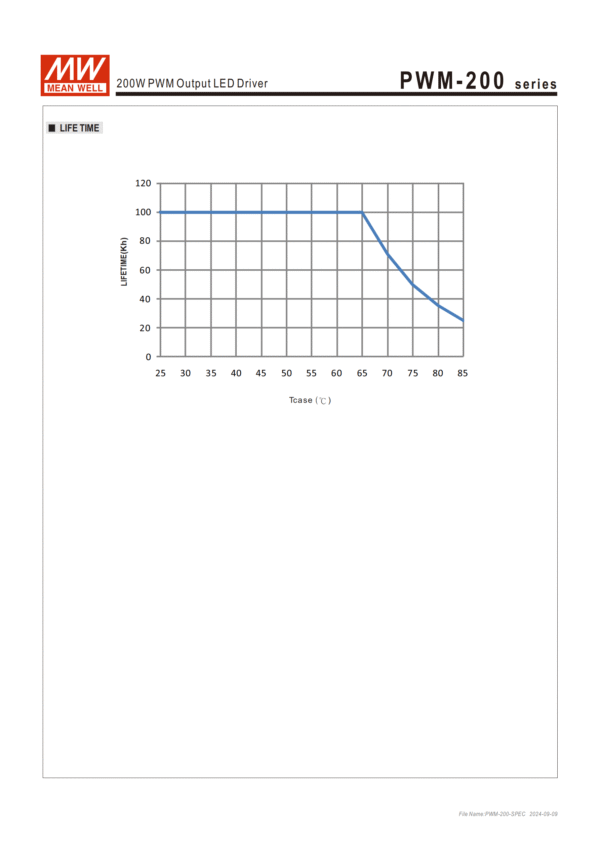

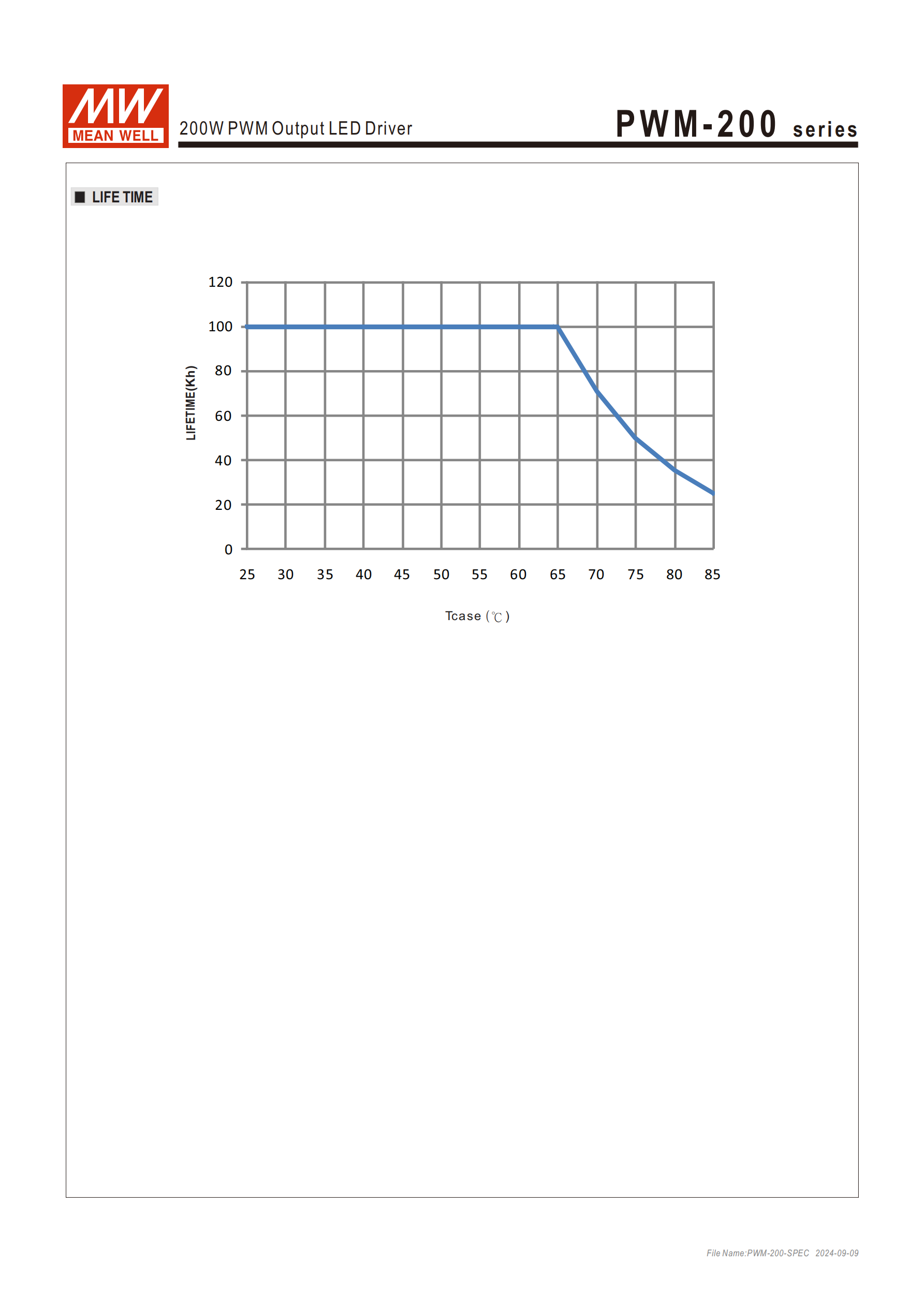

meanwell Power supply 200W PWM-200 lifetime test

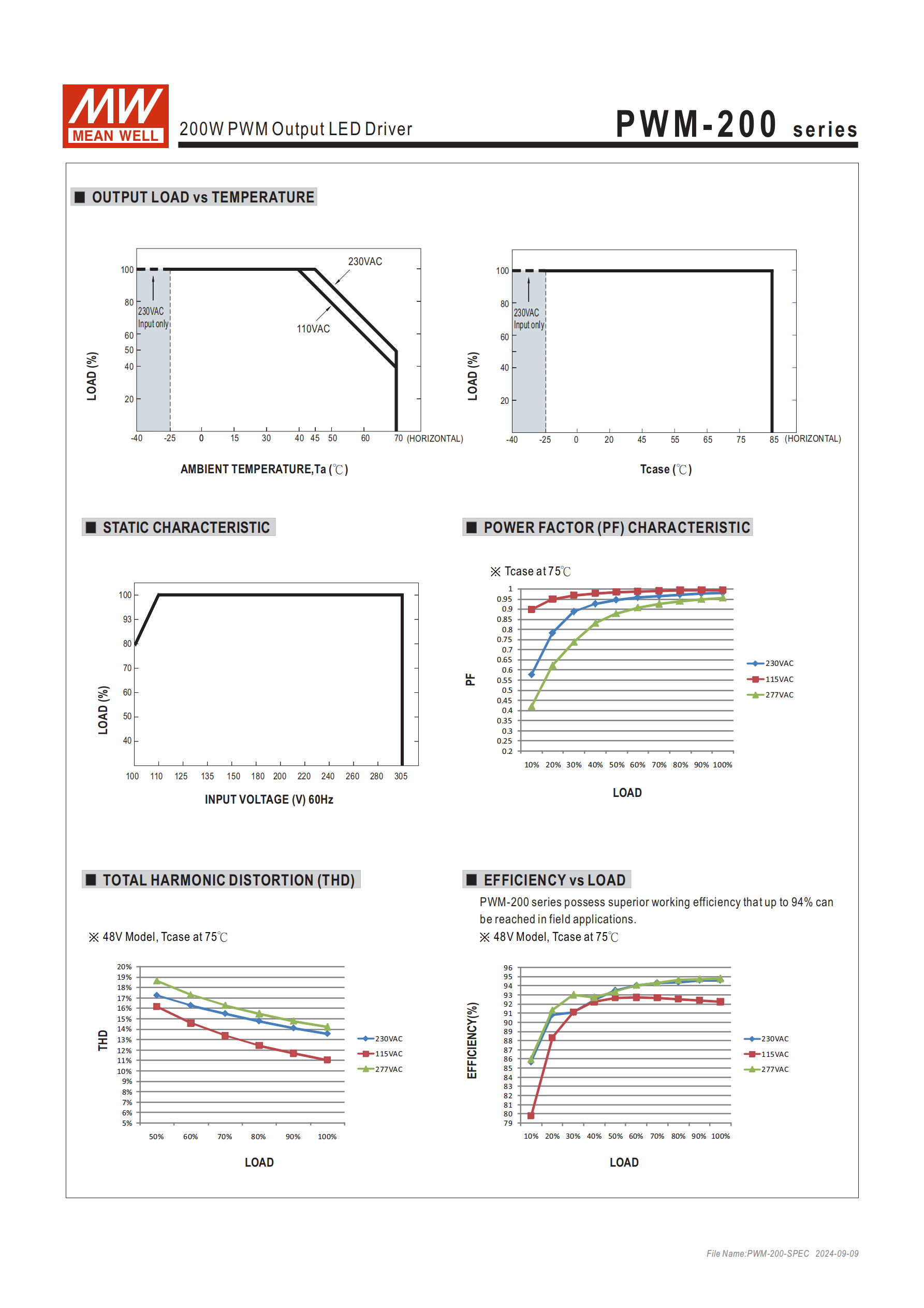

meanwell Power supply 200W PWM-200 output load VS temerature,static characteristic,total harmonic distortion

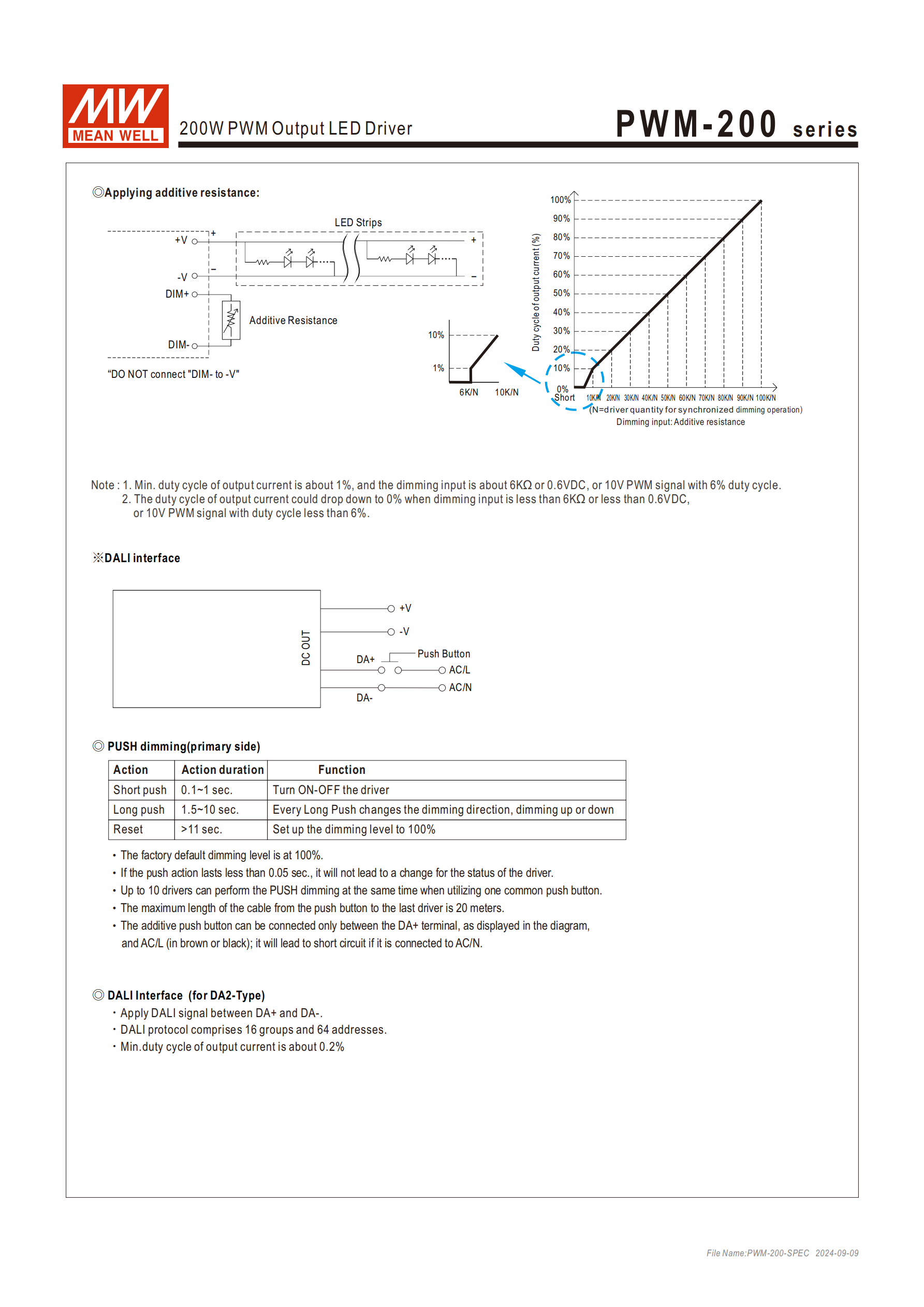

meanwell Power supply 200W PWM-200 Dimming Appling additive resistance,DALI Interface, PUSH Dimming

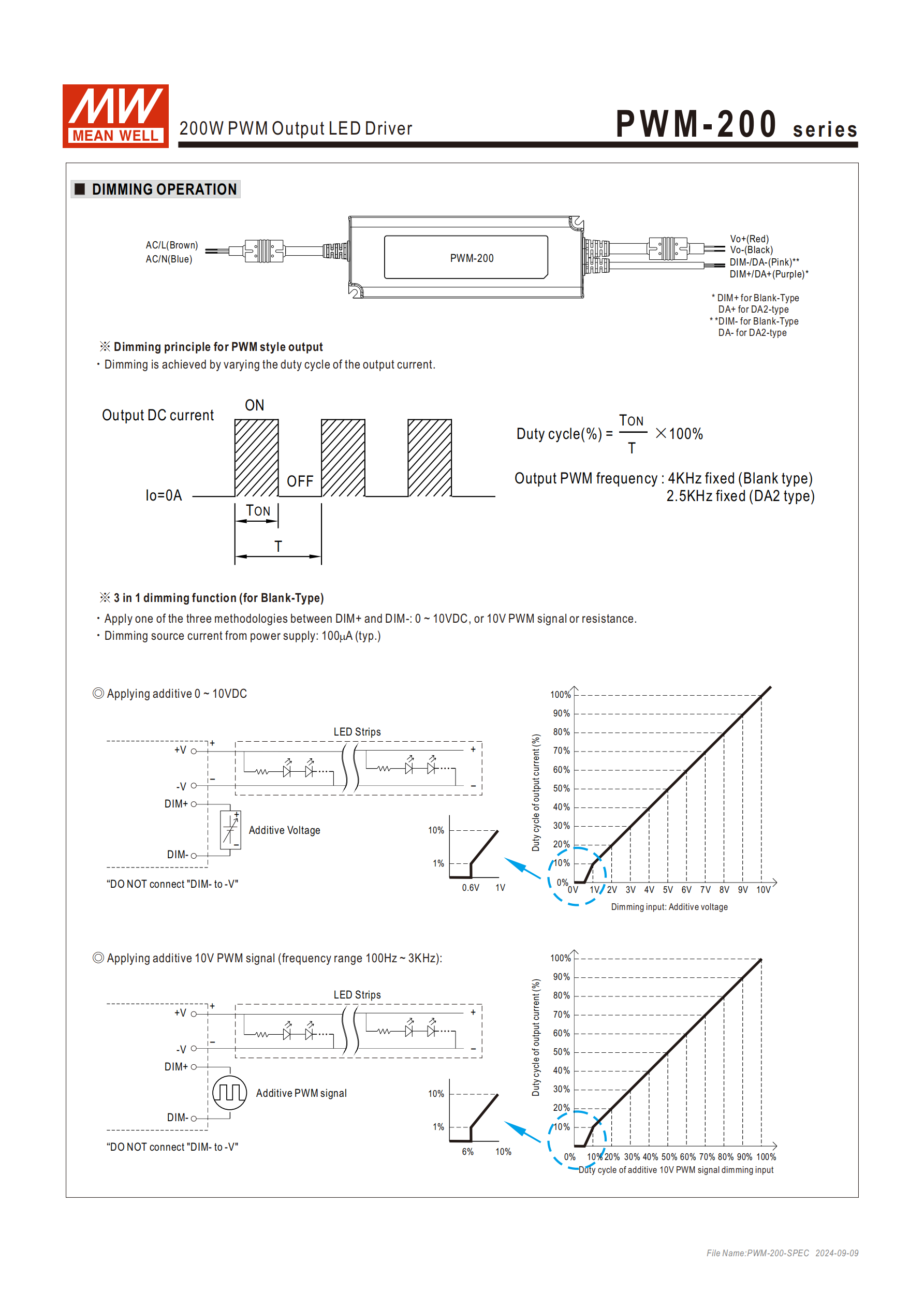

meanwell Power supply 200W PWM-200 Dimming operation

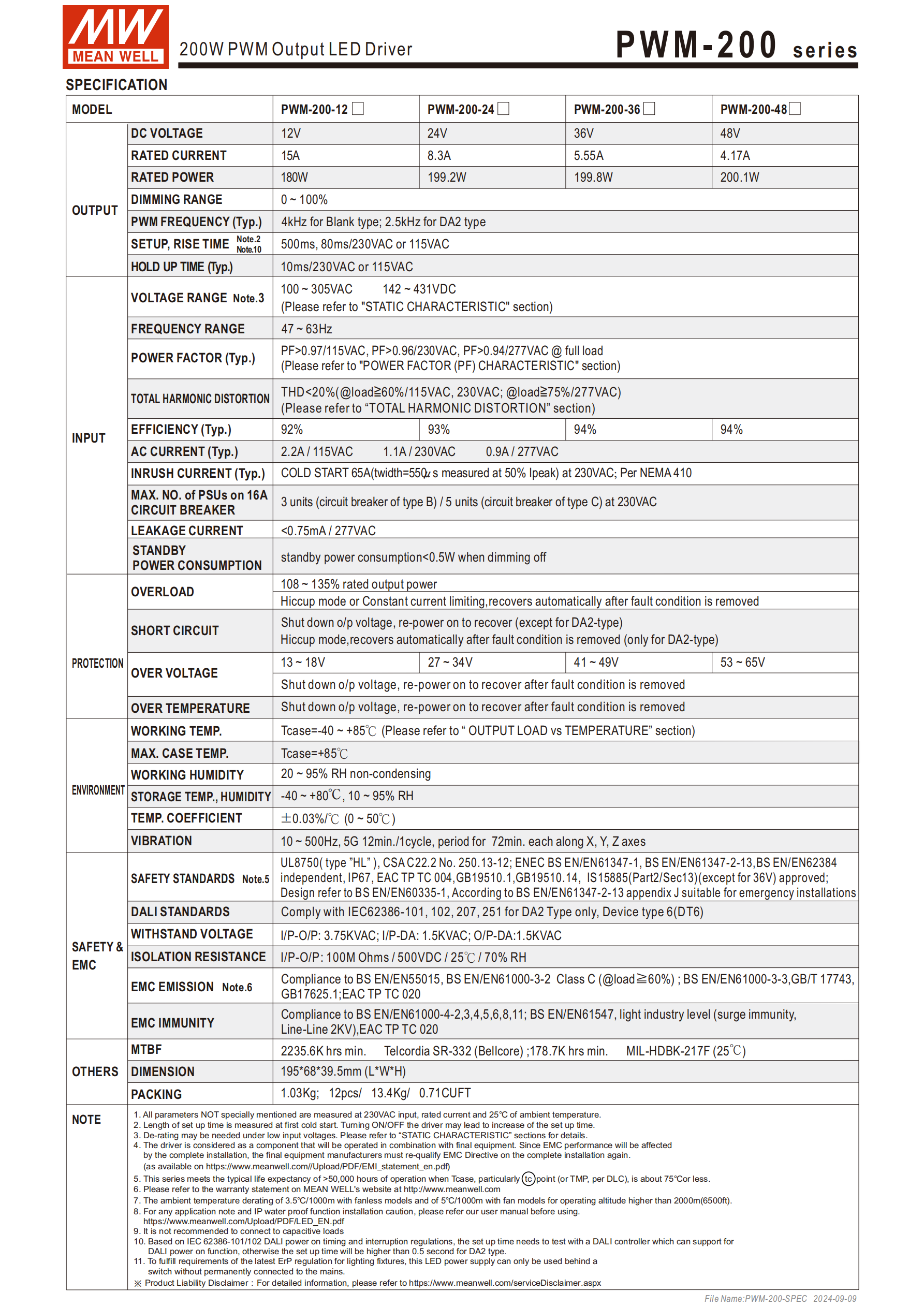

meanwell Power supply 200W PWM-200 Specification

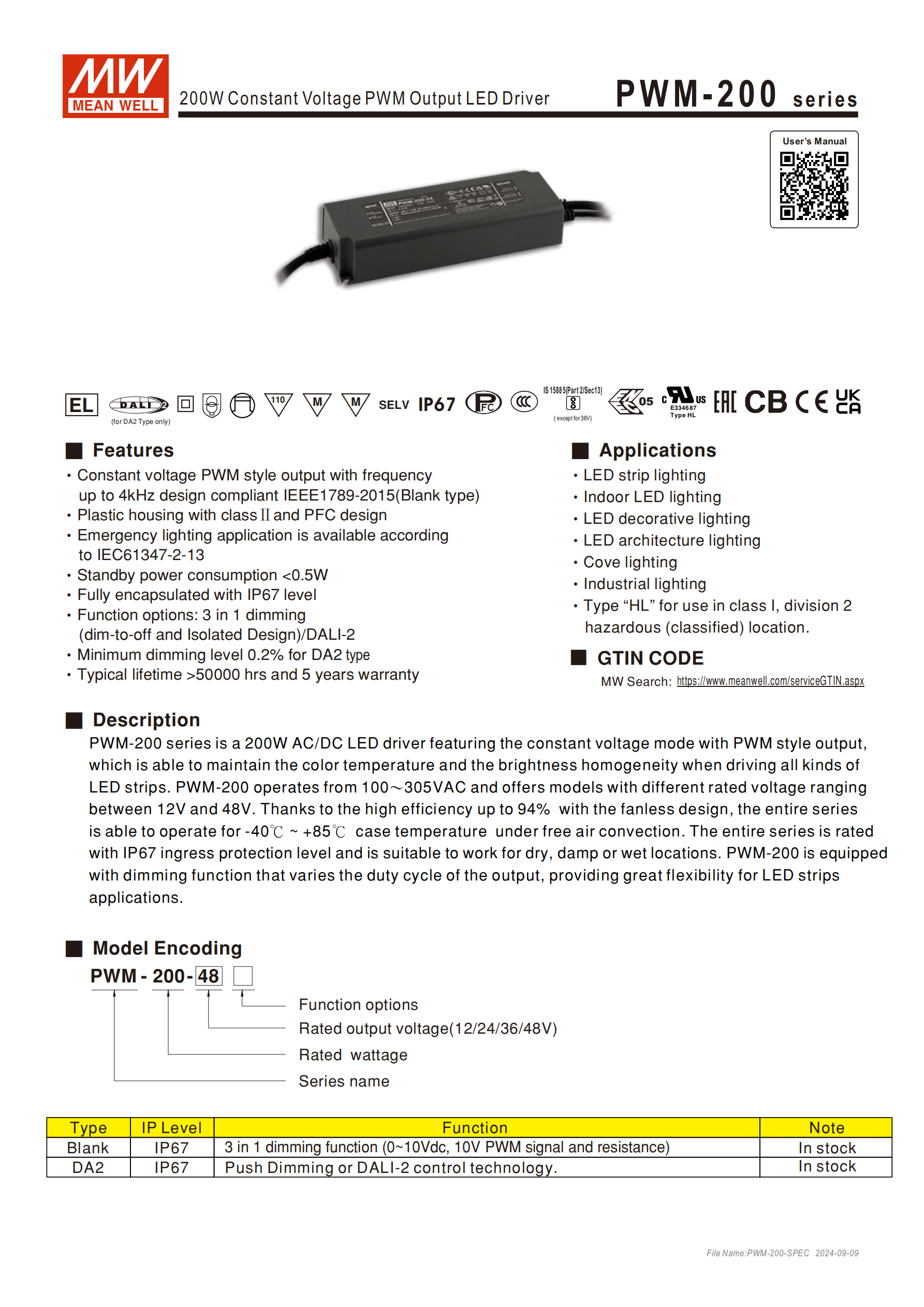

meanwell Power supply 200W PWM-200 features,application and description

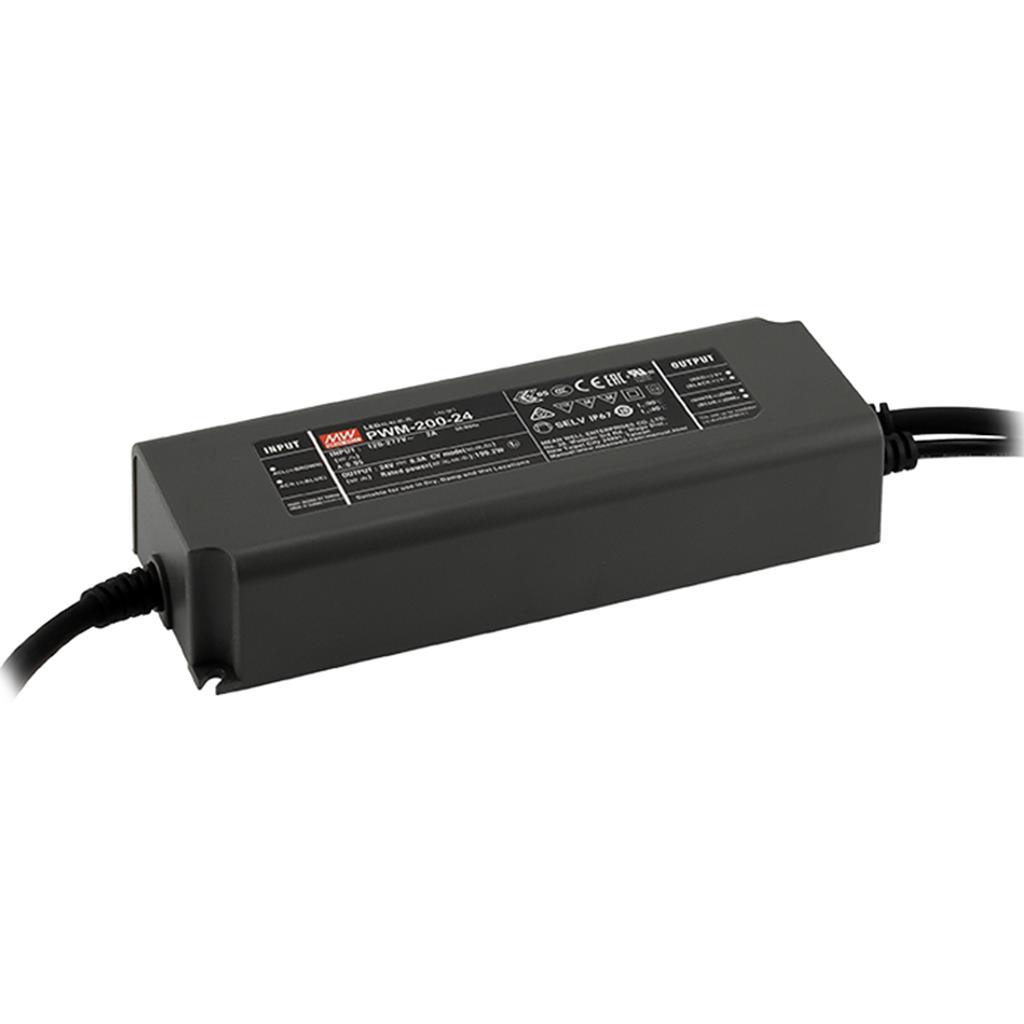

Meanwell 12VDC Power Supply 180W 15A PWM-200 IP67 DALI-2 Dimming IP67 waterproof for outdoor LED Lights UL&EMC List Input Volt 100-305Vac, 142-431Vdc Output Volt 12V24V36V48V

Original price was: $79.50.Current price is: $77.50.

Product Features

meanwell power supply logo Professional Power Supply

#Feature
Input Voltage:100-305Vac,142-431VDC 47-63Hz
Output Voltage:12Vdc 15A
Max Power:199.8Watts
Support output Volts 12V 24V 36V 48V for your differnet work Solution
Constant voltage PWM style output with frequency up to 4kHz design compliant IEEE1789-2015(Blank type)
Plastic housing with class II and PFC design
Emergency lighting application is available according to IEC61347-2-13
Standby power consumption <0.5W
Fully encapsulated with IP67 level
Function options: 3 in 1 dimming (dim-to-off and Isolated Design)/DALI-2
Minimum dimming level 0.2% for DA2 type
Typical lifetime >50000 hours

#Warranty 5 years
#Other Optional Voltage, model and current
PWM-200-12/ 12V 15A 180W
PWM-200-24/ 24V 8.3A 199.2W
PWM-200-36/ 36V 5.55A 199.8W
PWM-200-48/ 48V 4.17A 200.1W

#Applications
LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Type “HL” for use in class I, division 2 hazardous (classified) location.

Specifications

#Description
PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output.
which is able to maintain the color temperature and the brightness homogeneity when driving all kinds ofLED strips.
PWM-200 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V.
Thanks to the high efficiency up to 94% with the fanless design,
the entire series is able to operate for-40C ~+85C case temperature under free air convection.
The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations.
PWM-200 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

#Meanwell Power Supply PWM-200 Safety&EMC List
#SAFETY STANDARDS
UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, IP67, EAC TP TC 004,GB19510.1,GB19510.14, IS15885(Part2/Sec13)(except for 36V) approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations
#EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,GB/T 17743, GB17625.1;EAC TP TC 020
#EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity, Line-Line 2KV),EAC TP TC 020

Meanwell Power Supply PWM-200 Safety&EMC List

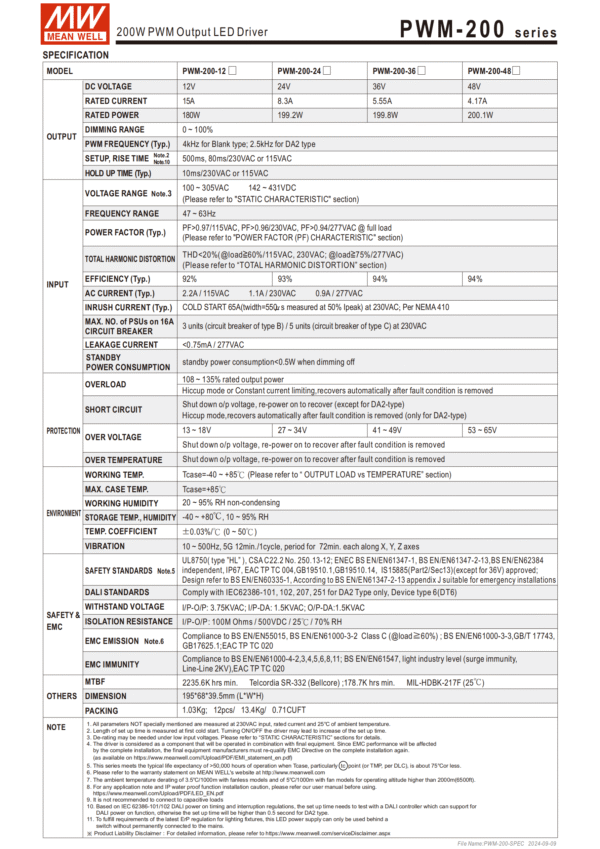

#Meanwell Power supply 200W PWM-200 Specification

meanwell power supply PWM-200 Specification

#Meanwell Power supply 200W PWM-200 user’s manual

Meanwell Powe Supply user's Manual
