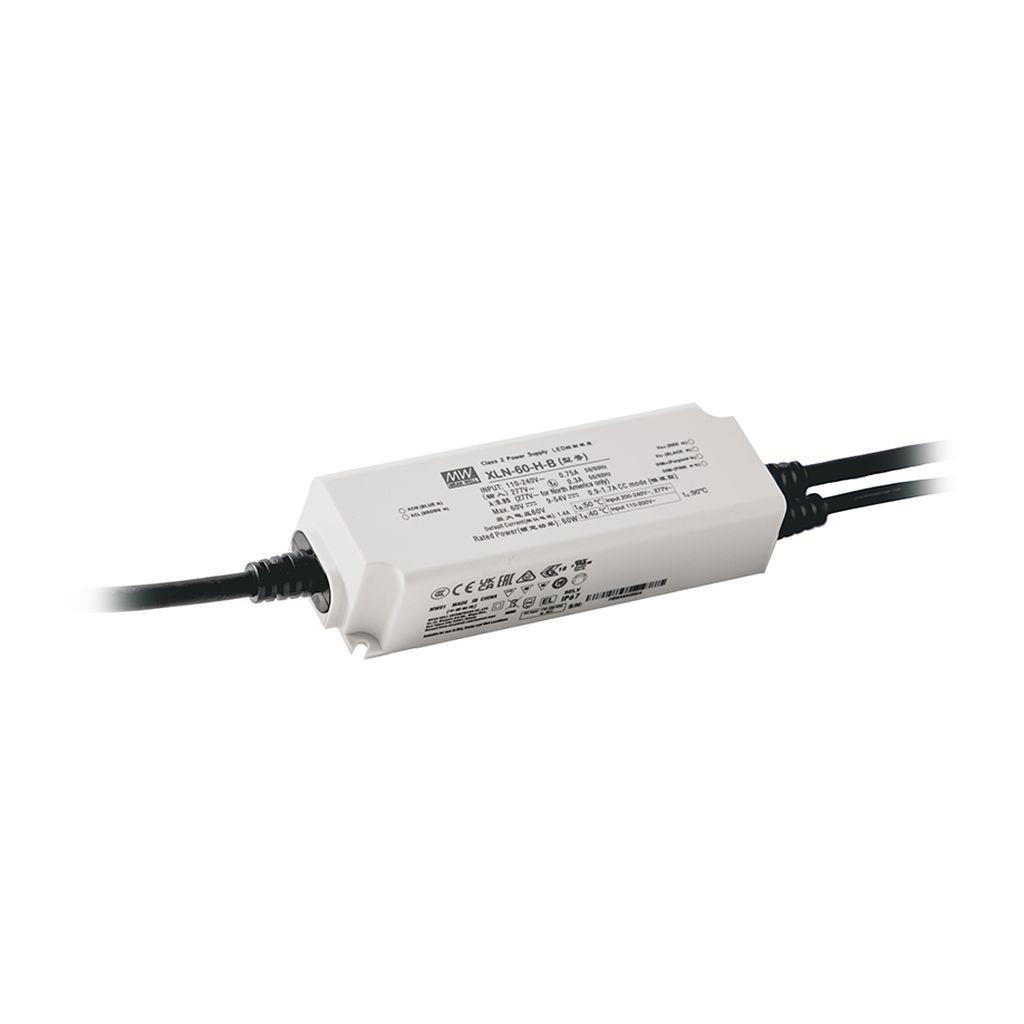

#Description of XLN-60
XLN-60 Series is a 60W with constant power and constant voltage output LED driver

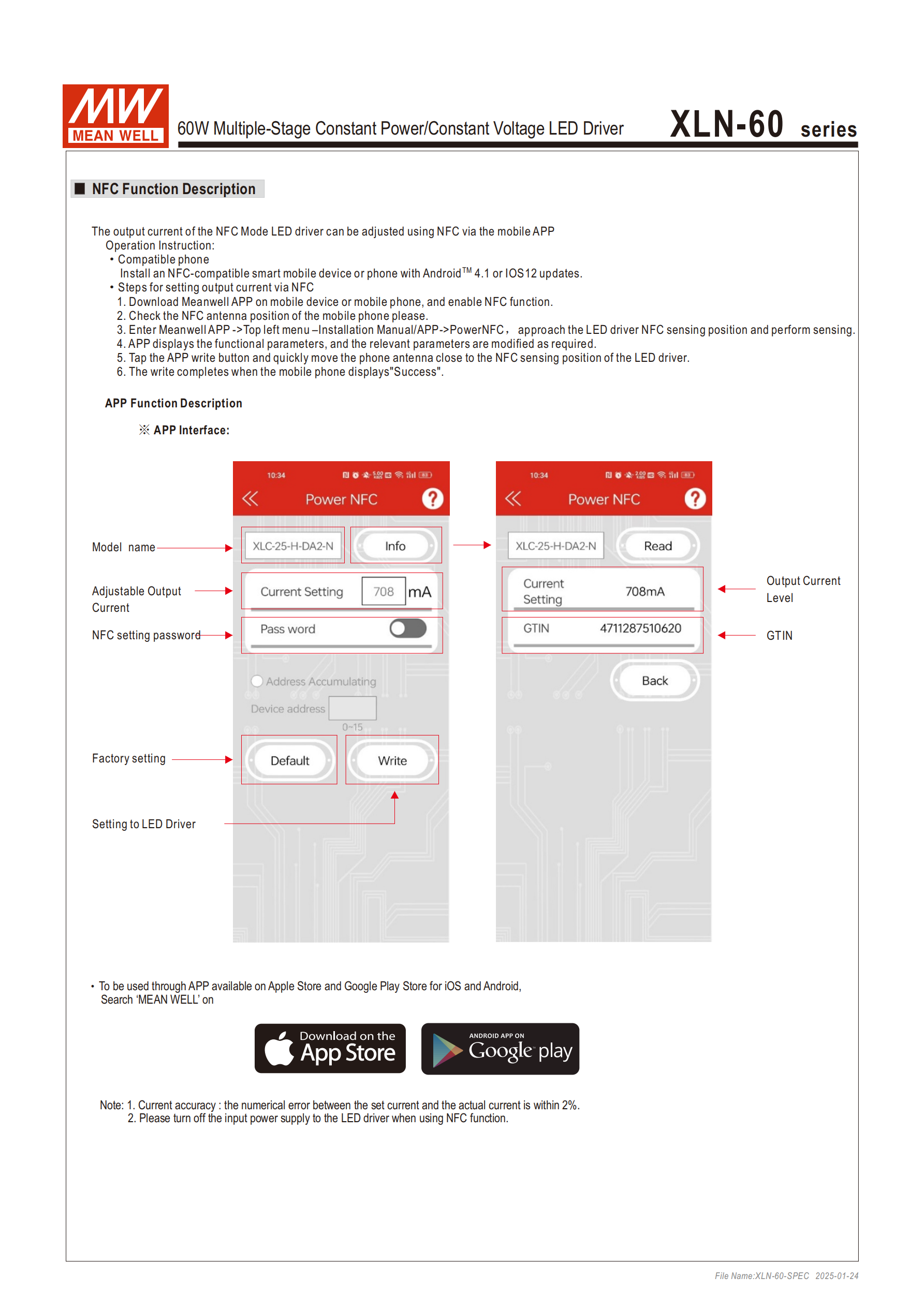

It can operate from 100~305VAC and output current ranging between 900 mA to 1700 mA selectable by NFC setting.
Thanks to high efficiency up to 90%, it is able to operate for -25C ~90°C case temperature under free air convection.
XLN-60 is designed based on latest safety regulation with 3 in 1 and DALI-2 dimming.

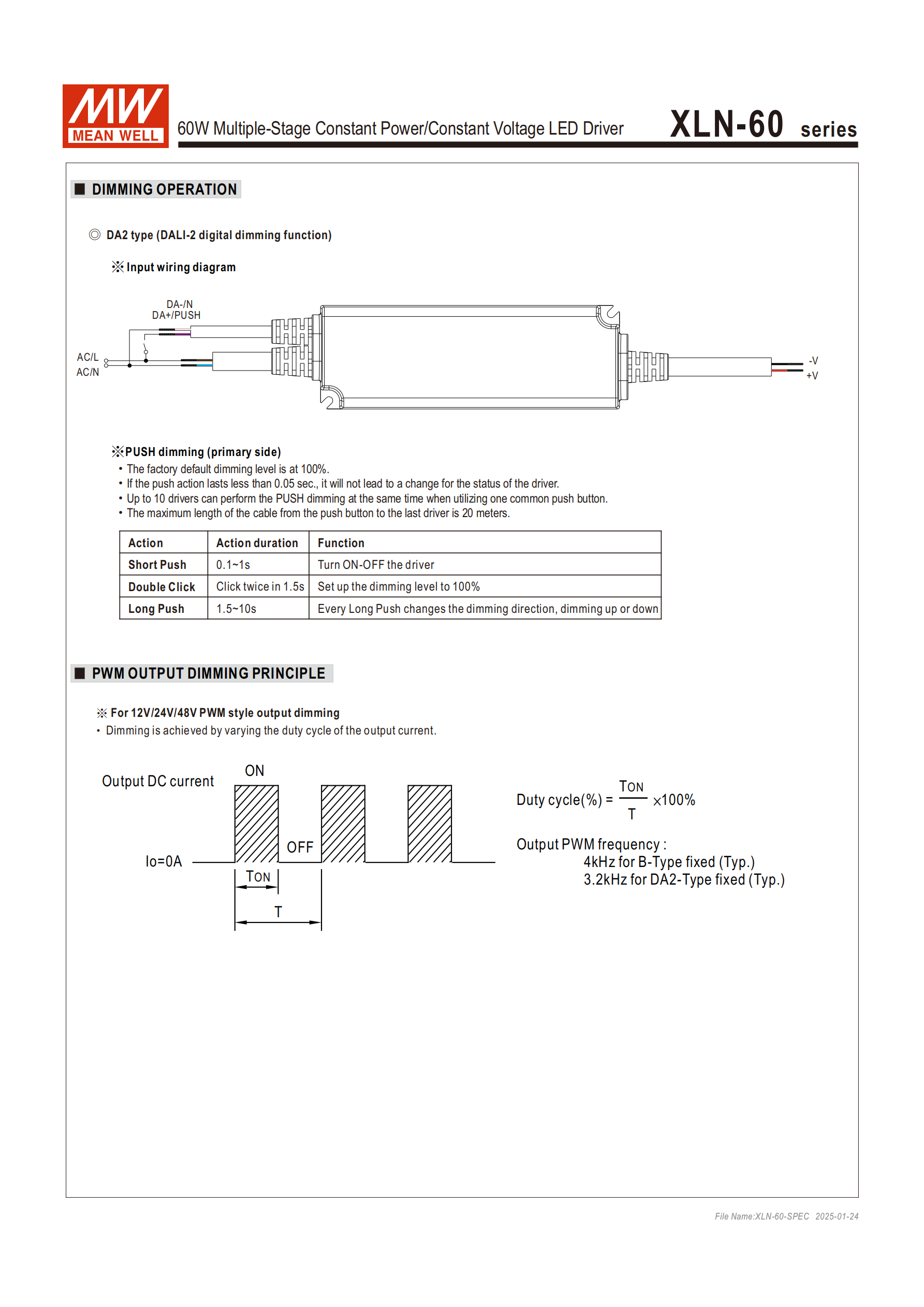

XLN-60 can be adjusted for brightness with a push button as a simple way dimming,
so it provides more flexibility for LED Lighting application.
#Meanwell XLN-60 Safety&EMC List
#SAFETY STANDARDS
UL8750(type “HL” and Class P),CSA C22.2 No. 250.13-12;ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384 independent, BIS IS15885(Part2/Sec13)(NOTE 13), GB19510.14, GB19510.1, EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
#DALI STANDARDS Comply with IEC62386-101, 102, 207
#EMC EMISSION BS EN/EN55015(CISPR15) ,GB/T 17743
#EMC IMMUNITY BS EN/EN61000-4-2

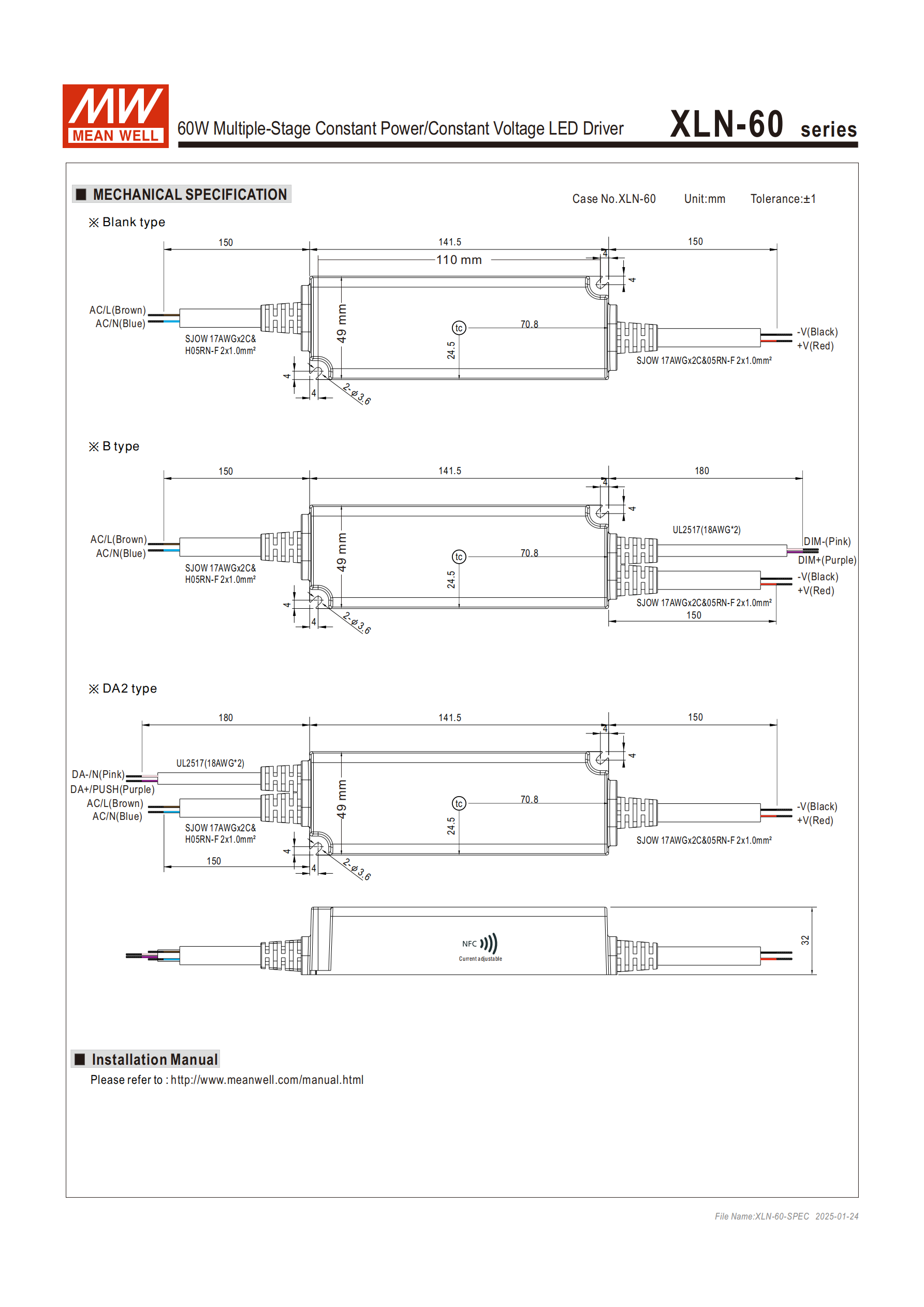

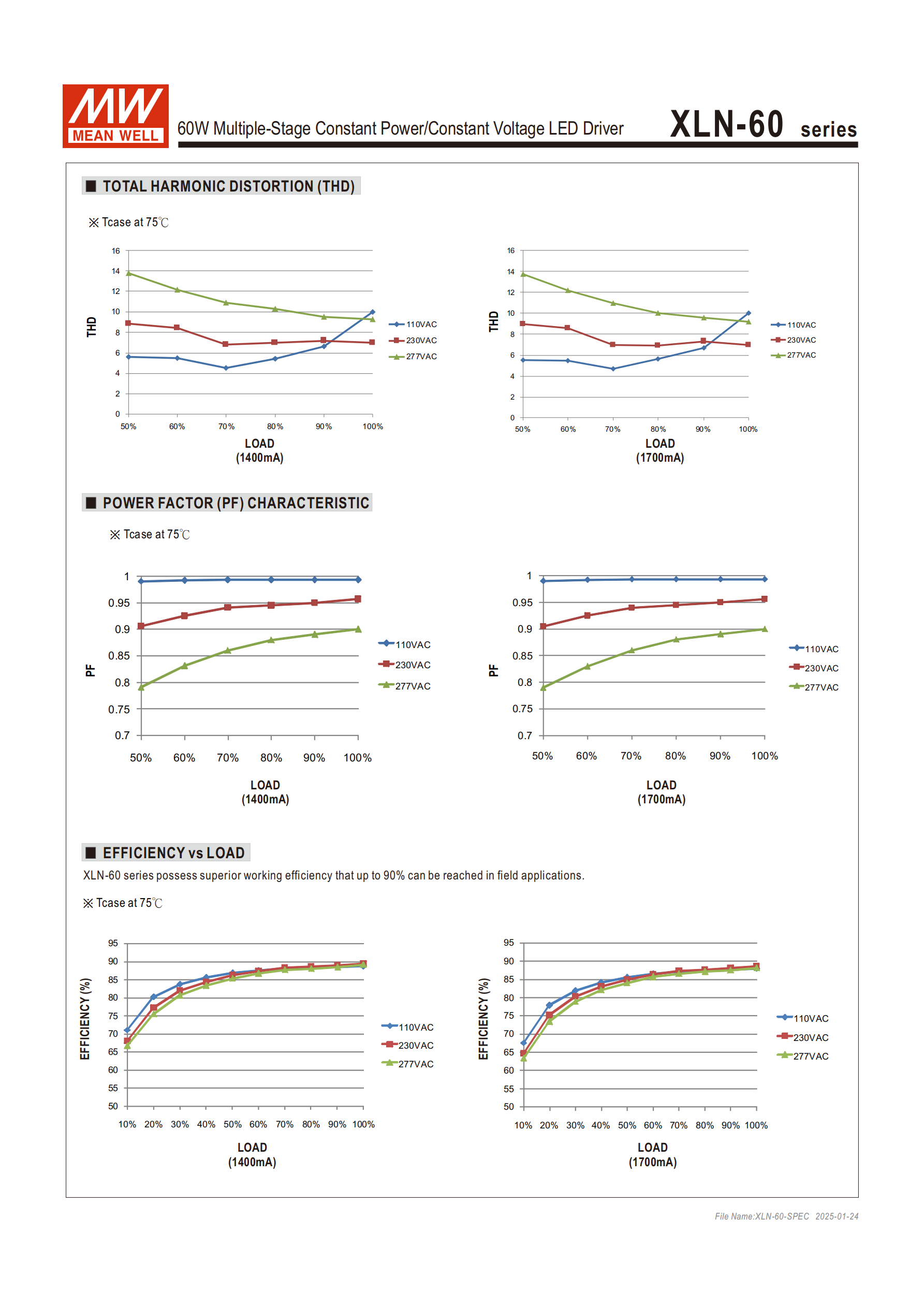

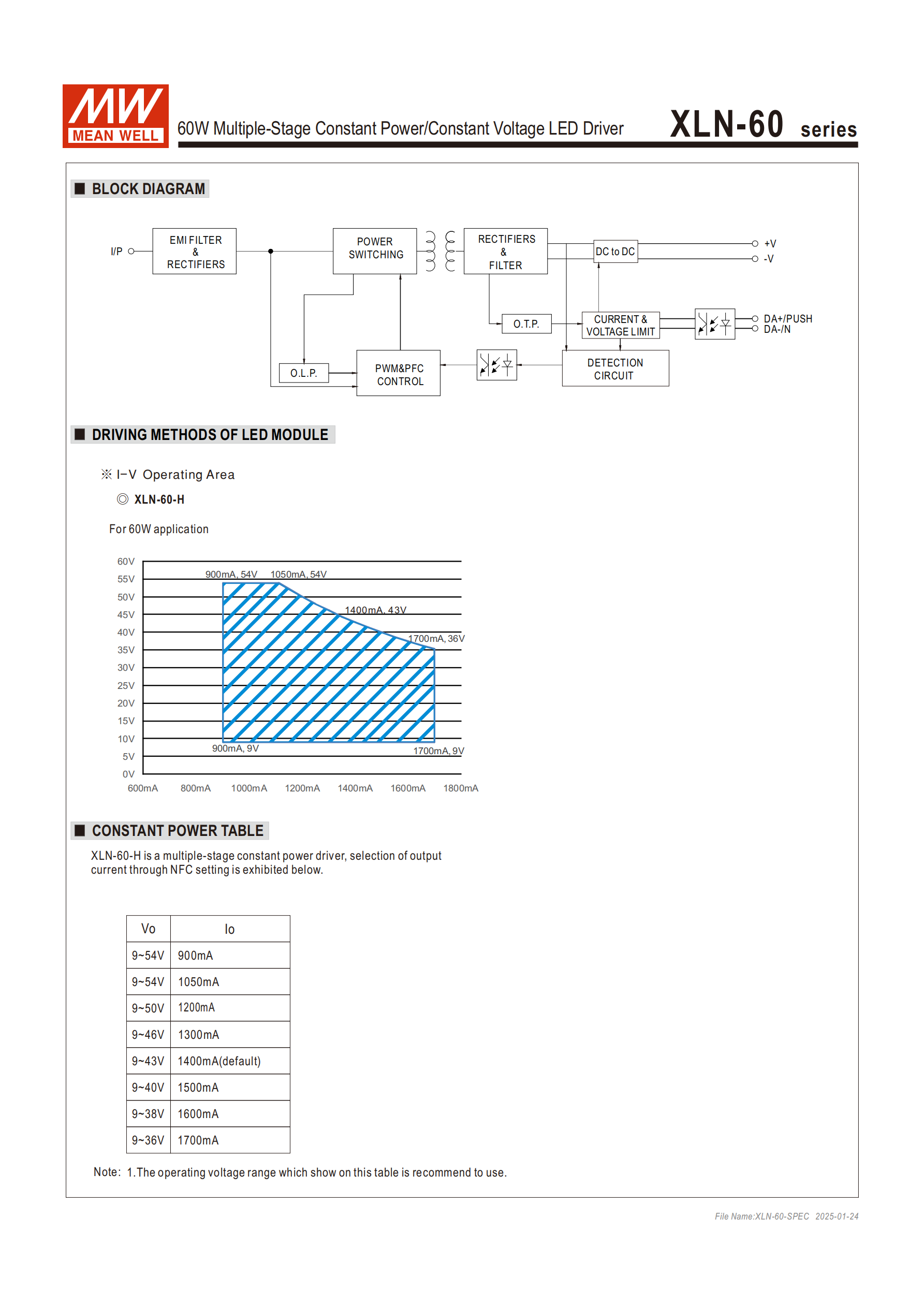

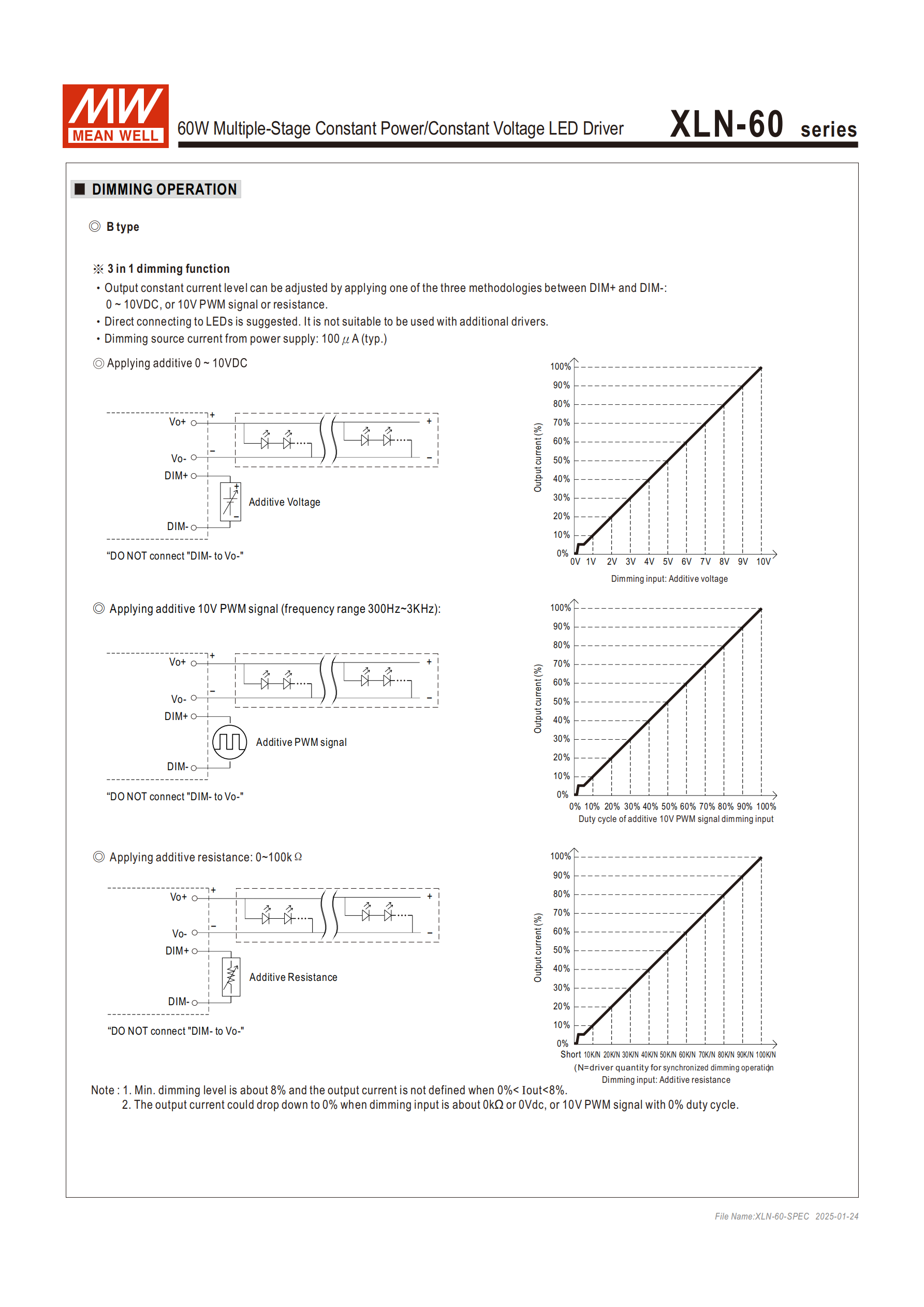

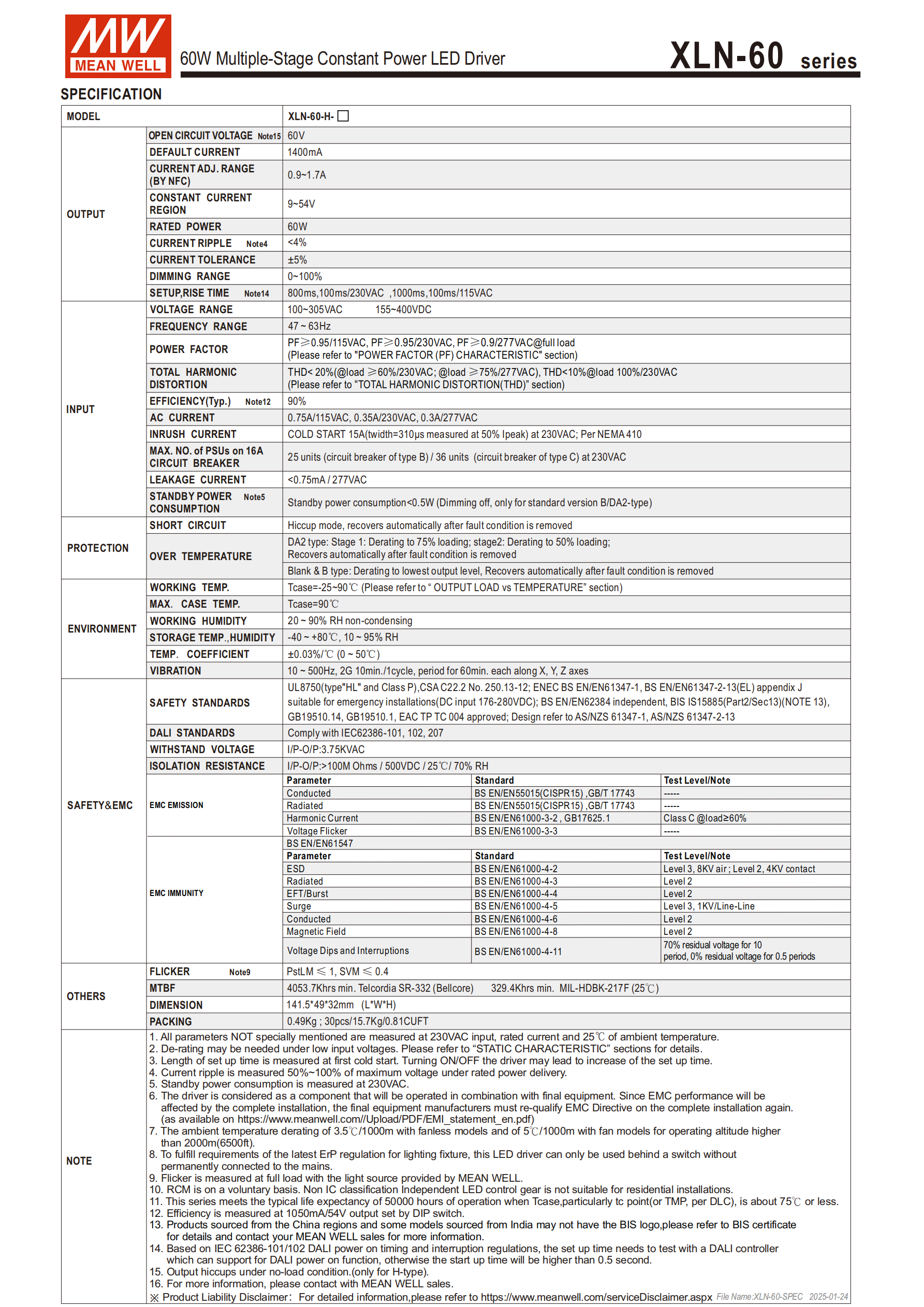

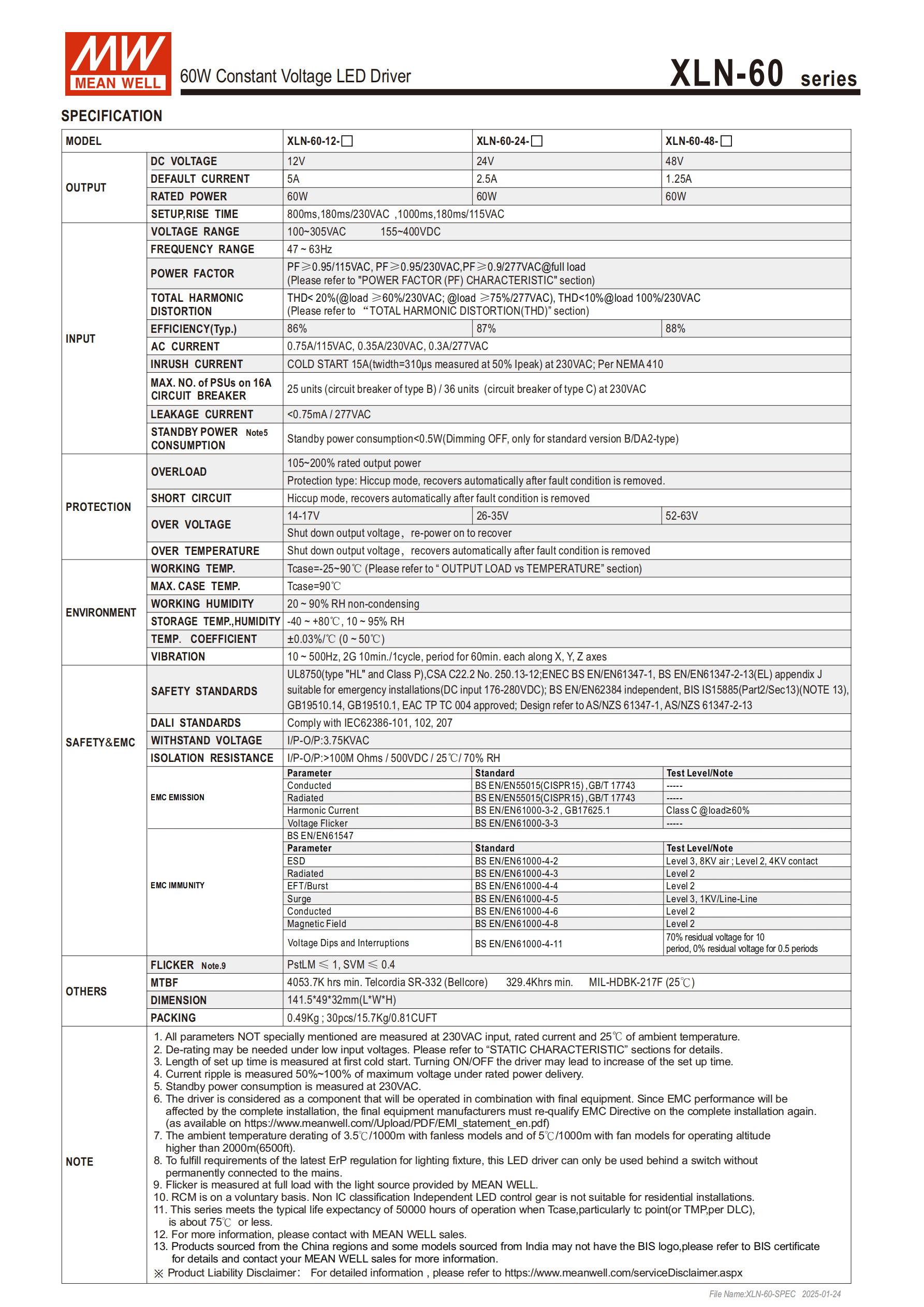

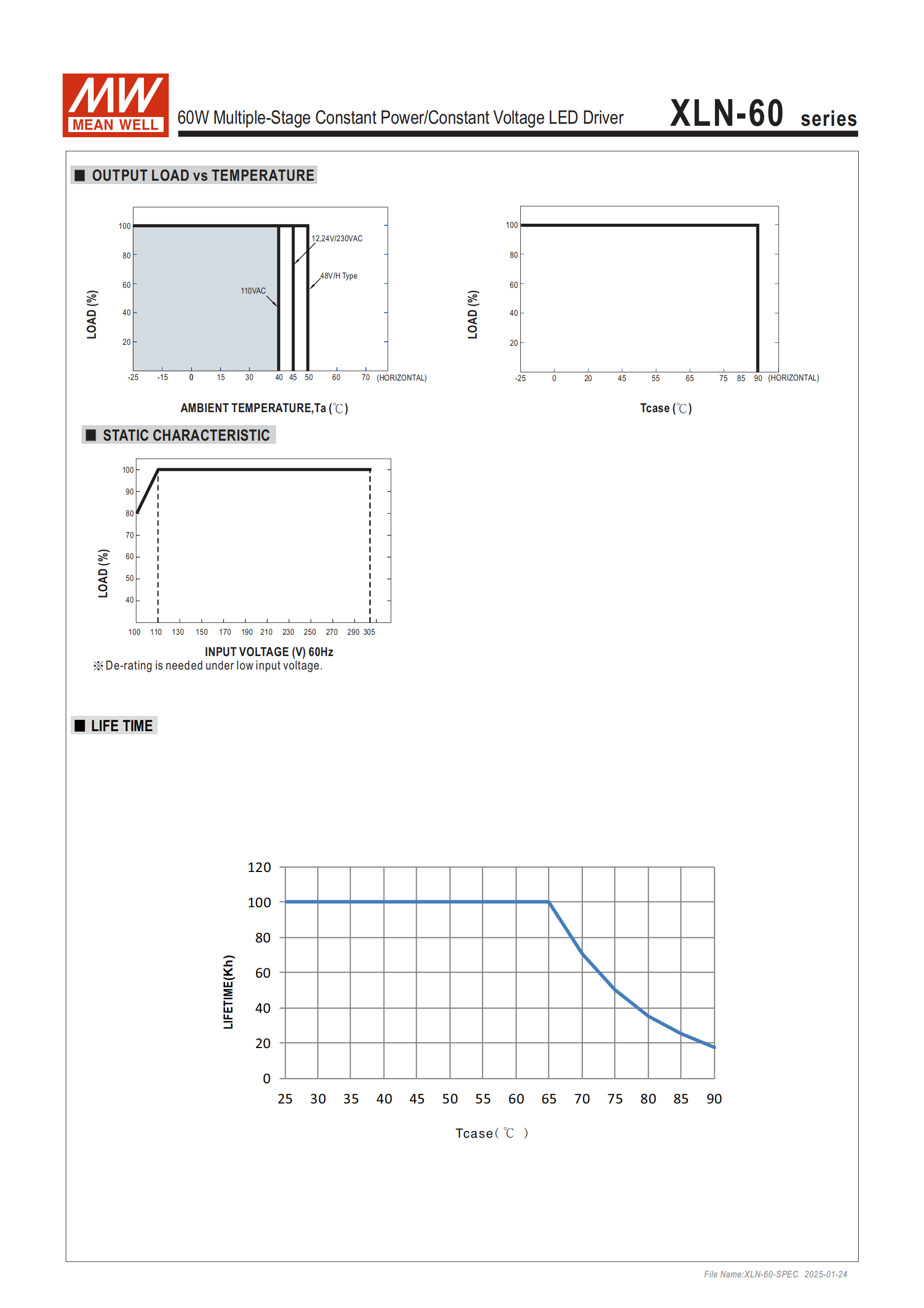

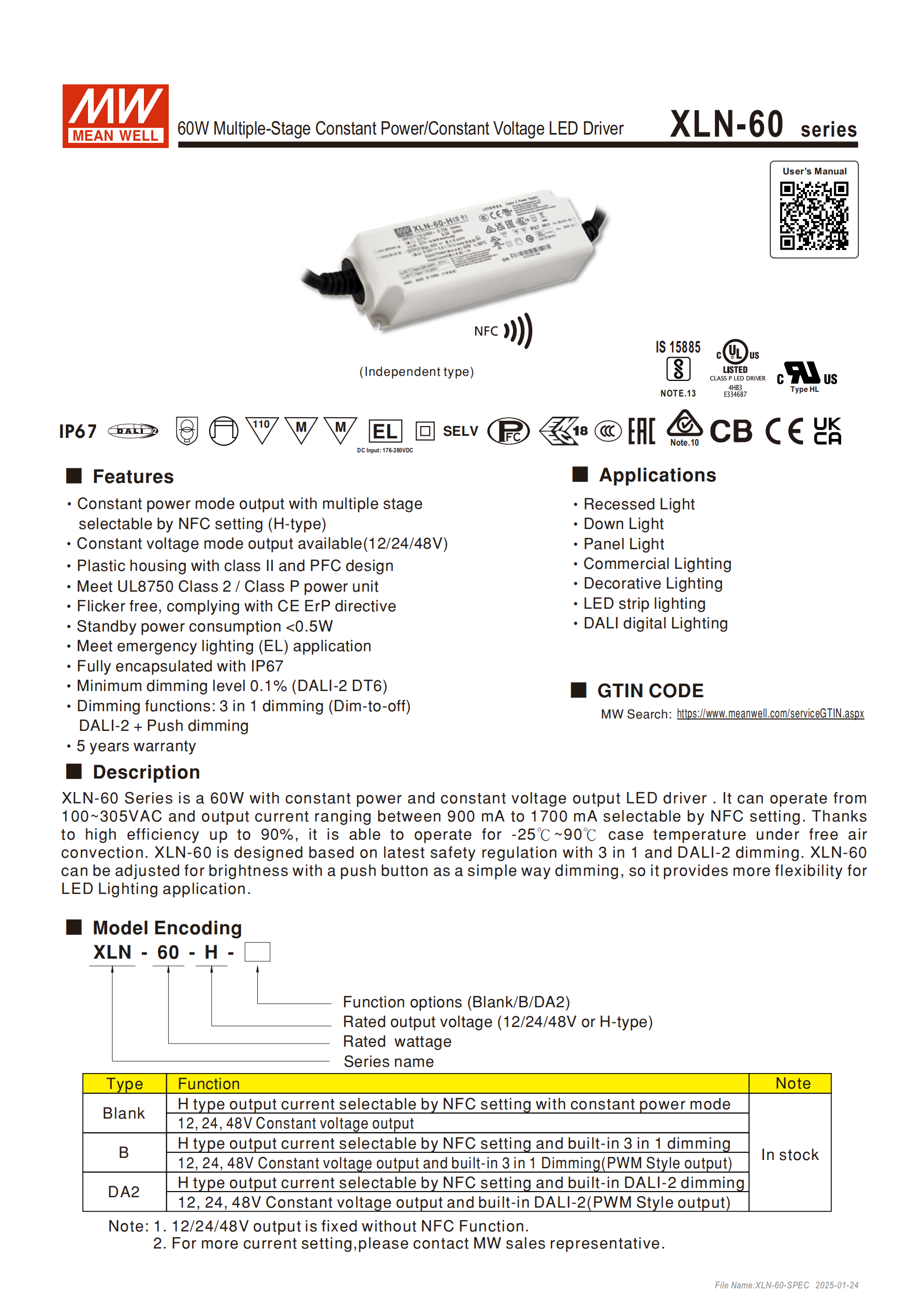

Meanwell Powe Supply XLN-60 Specification
#Meanwell Power supply 60W XLN-60 user’s manual
