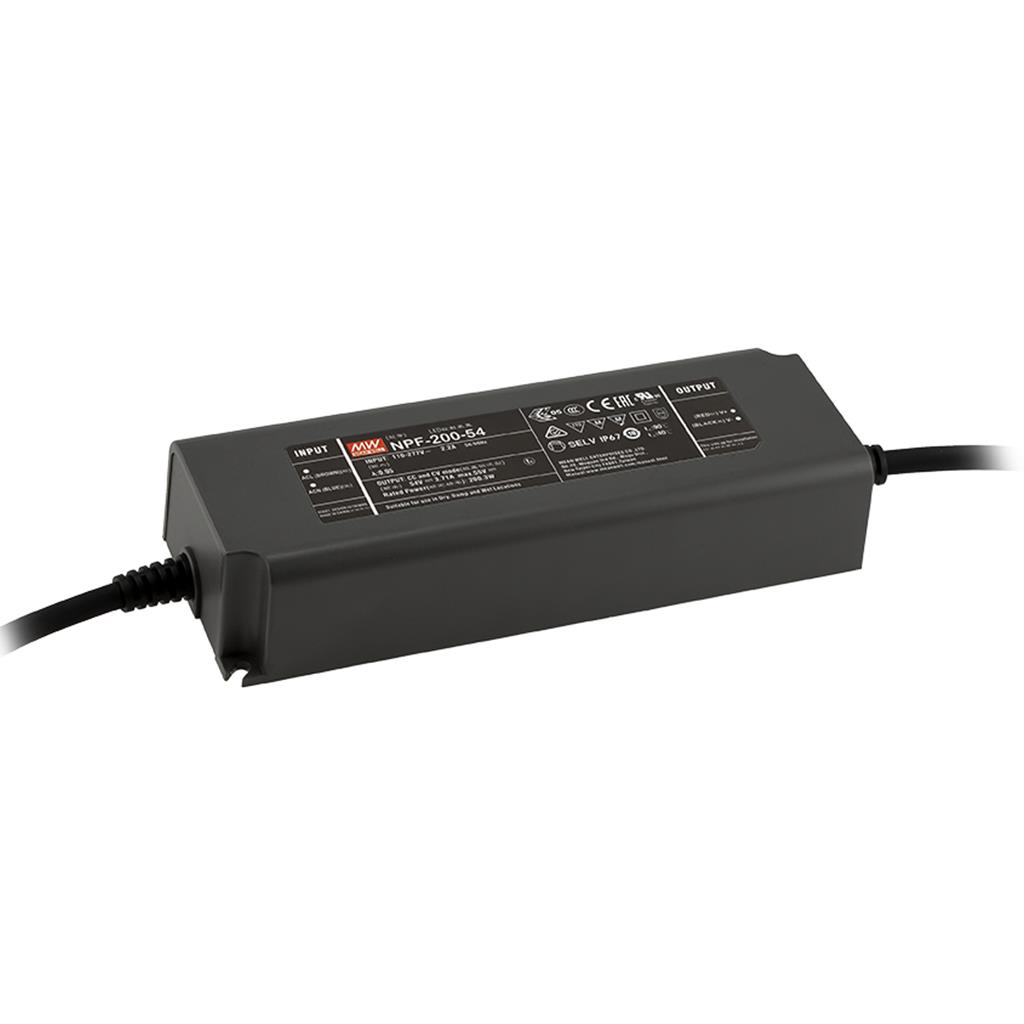

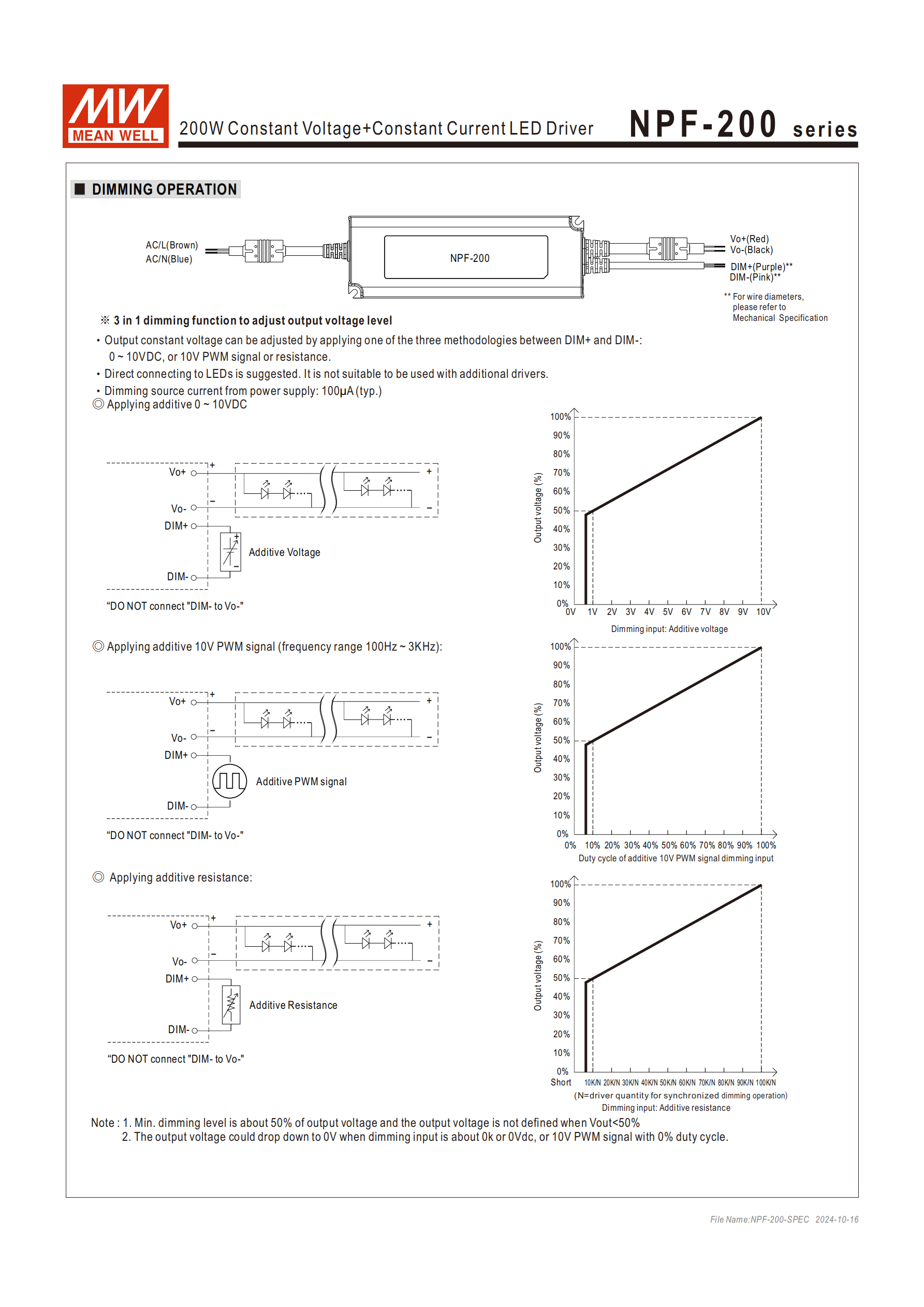

12VDC Power Supply 180W 6-12V 15A Meanwell NPF-200 IP67 3in1 dimming Power Supply

Specifications

#Meanwell NPF-200 Safety&EMC List

#SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved; Design refer to BS EN/EN60335-1
#EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
#EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV); EAC TP TC 020

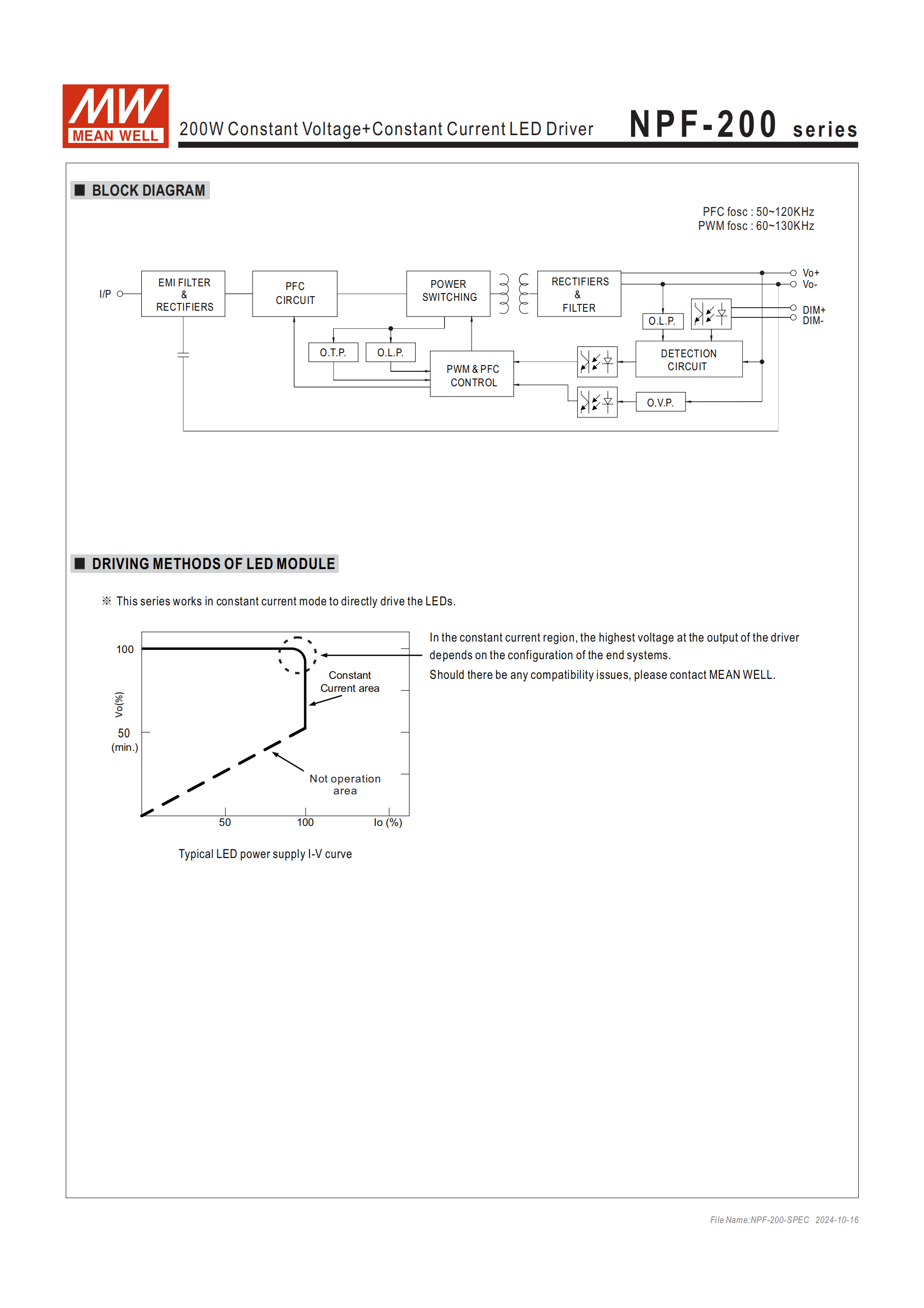

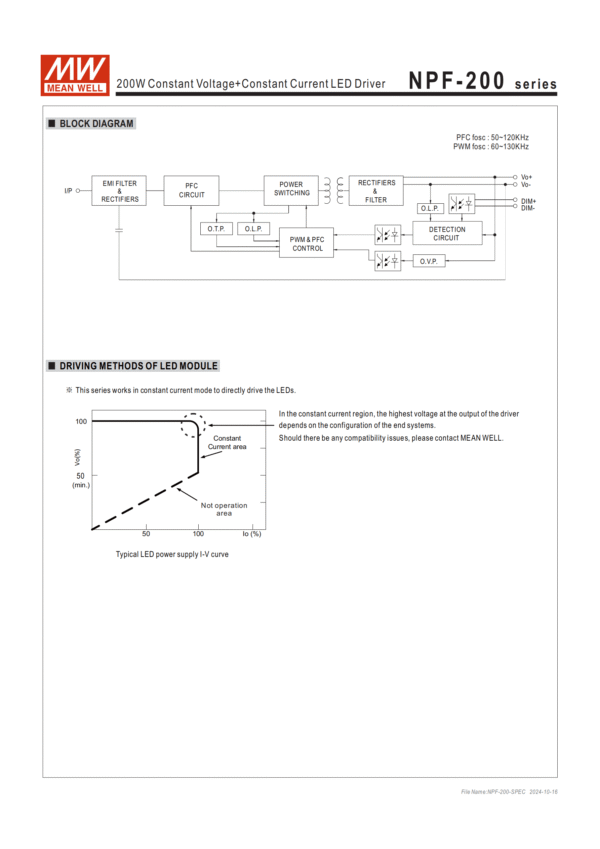

#Product Specification

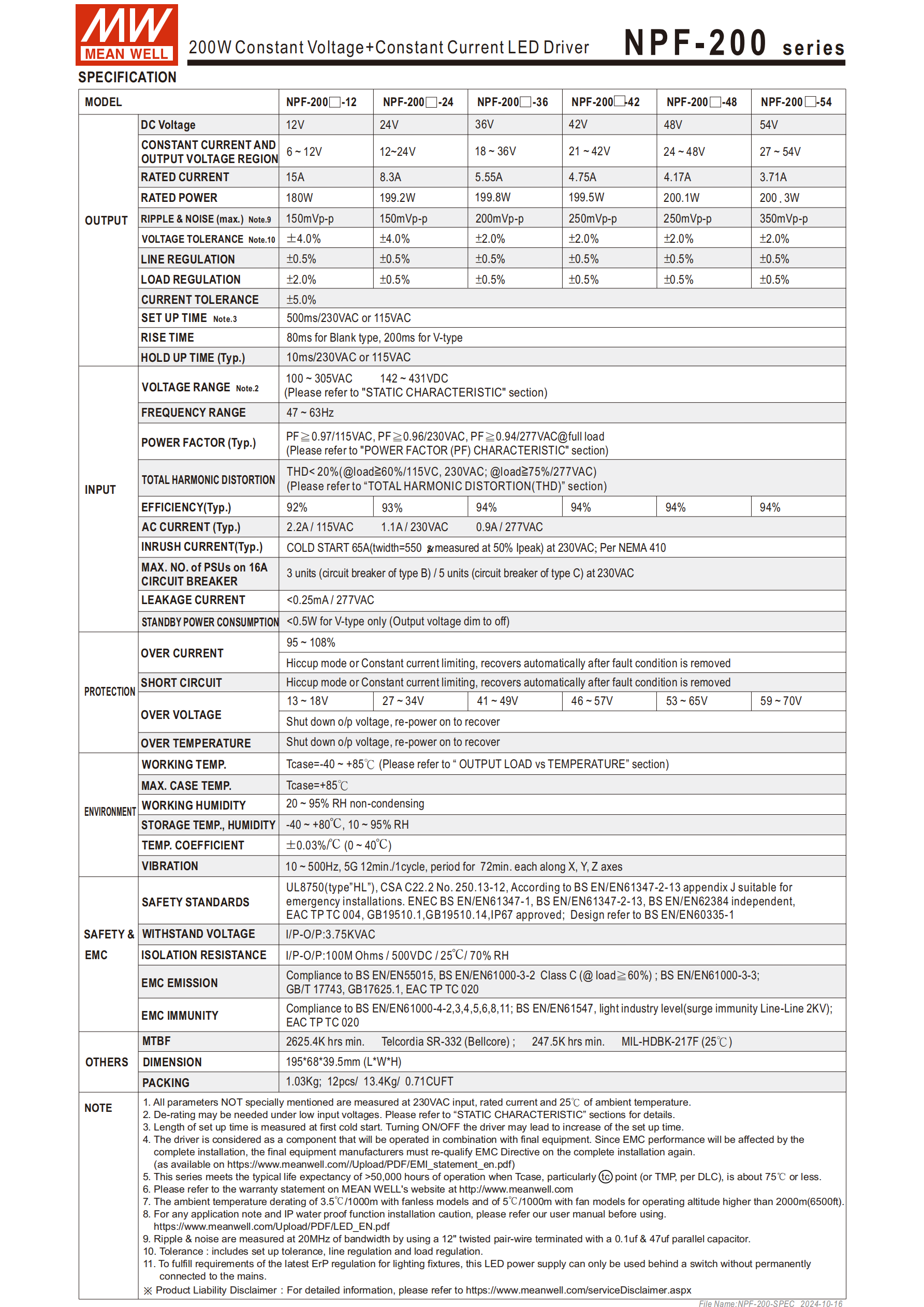

Specification Datasheet	Meanwell Power Supply NPF-200V-12

#Output	DC Voltage	12V	24V
	Constant Current and Output Voltage Region	6-12V	12-24V
Working Voltage	Rated Current	10A	8.3A
	Current Range	15A	199.2W
	Rated Power	180W	150mVp-p
	Ripple Noise (max. Note.2	120mVp-p	±4.0%
	Voltage TOLERANCE Note.3	±4.0%	±0.5%
	LINE REGULATION	±0.5%	±0.5%
	LOAD REGULATION	±2.0%
	Current Tolerance	±5.0%
	SETUP, RISE TIME Note.3	500ms/230VAC or 115VAC
	Rice Time	80ms for Blank type, 200ms for V-type
	HOLD UP TIME (Typ.)	10ms/230VAC or 115VAC

#Input	VOLTAGE RANGE Note.2	100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF≧0.97/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
	EFFICIENCY (Typ.)	92%	93%
	AC CURRENT	2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC
	INRUSH CURRENT(Typ.)	COLD START 65A(twidth=550 μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER.	3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.25mA / 277VAC
	STANDBY POWER CONSUMPTION	<0.5W for V-type only (Output voltage dim to off)

#Protection	Over Current	95 ~ 108% Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
	Over Voltage	13 ~ 18V Protection type : Shut down o/p voltage, re-power on to recover	27 ~ 34V
	SHORT CIRCUIT	Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
	Over Temperature	Shut down o/p voltage, re-power on to recover

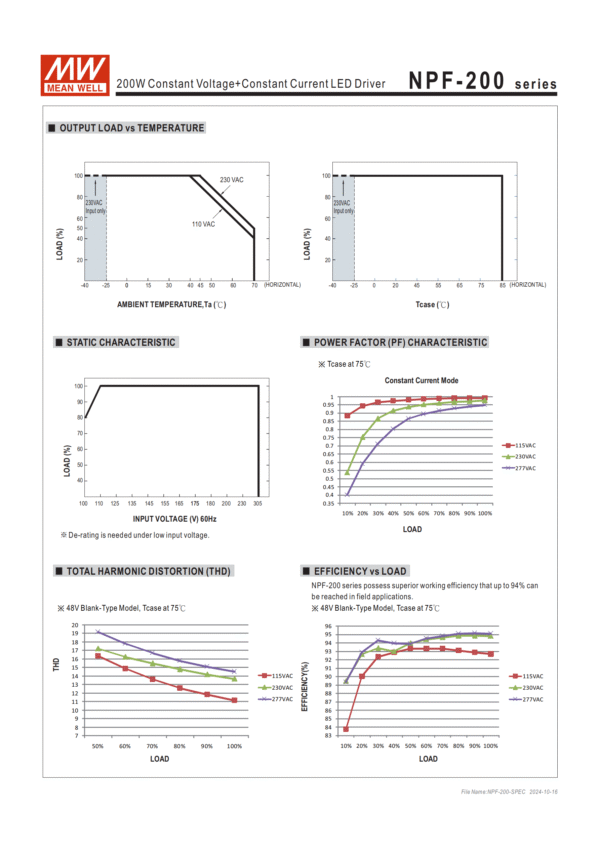

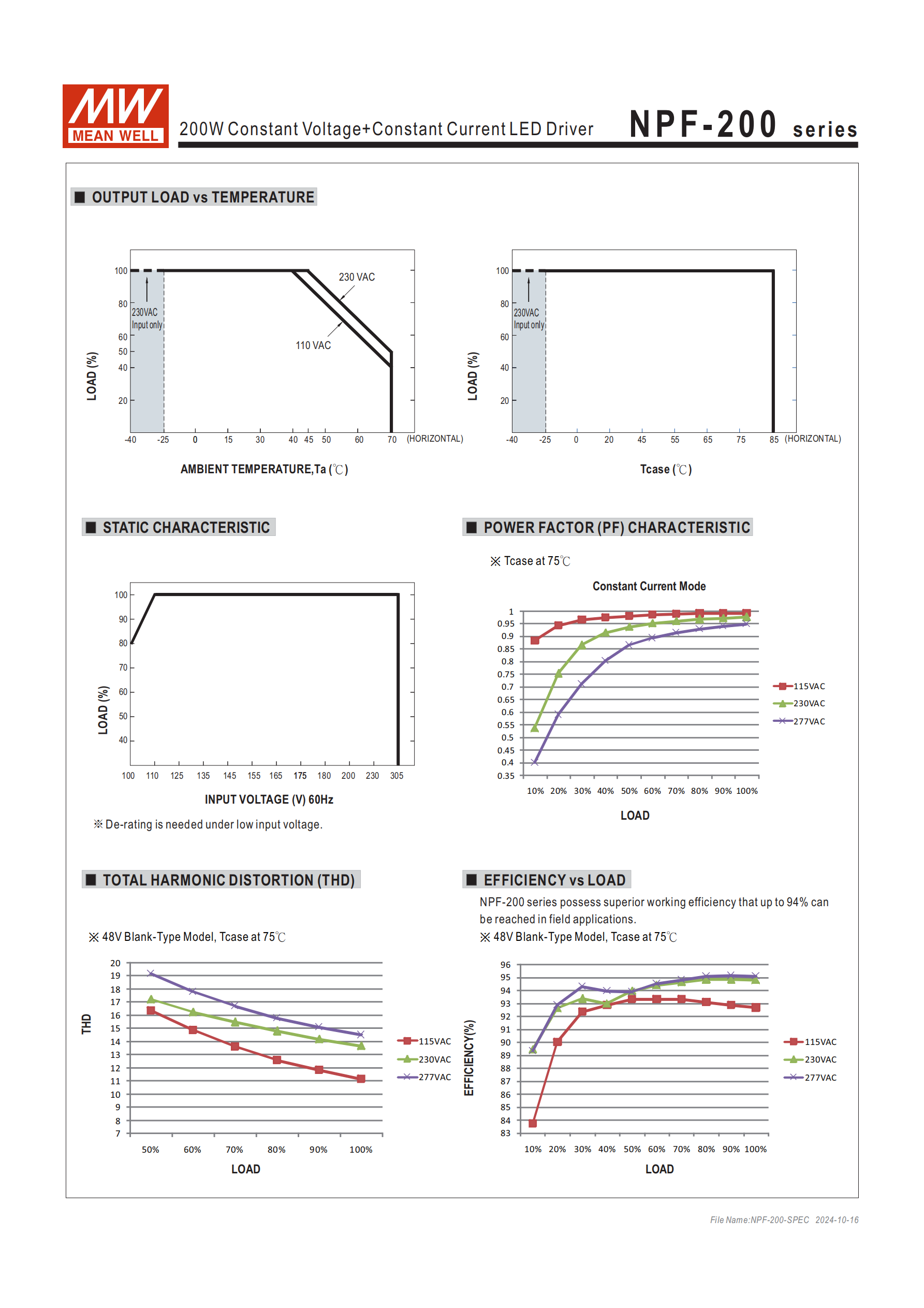

#Environment	WORKING TEMP.	Tcase=-40 ~ +85°C (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+80°C, 10~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°C (0 ~ 40°C for LPV-150-12
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
	MAX. CASE TEMP.	Tcase=+85°C
	TEMP. COEFFICIENT	±0.03%/°C (0 ~ 40°C)

#Safety & EMC Standards	SAFETY STANDARDS	UL8750(type”HL”), CSA C22.2 No. 250.13-12, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved; Design refer to BS EN/EN60335-1
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV); EAC TP TC 020

	MTBF	2625.4K hrs min. Telcordia SR-332 (Bellcore) ; 247.5K hrs min. MIL-HDBK-217F (25°C)

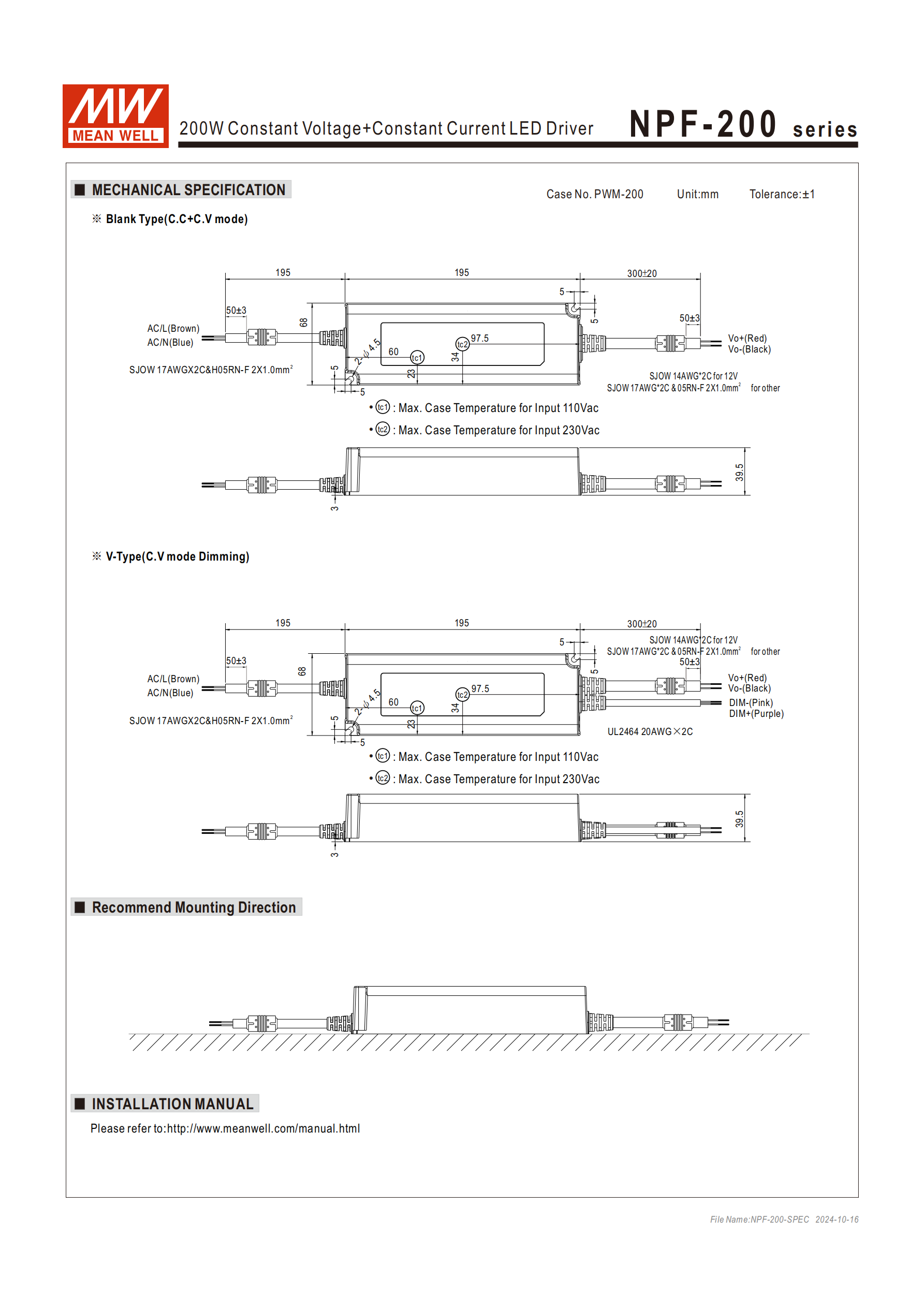

	DIMENSION	1956839.5mm (LWH)
	PACKING	1.03Kg; 12pcs/ 13.4Kg/ 0.71CUFT

Note		1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25°C of ambient temperature.
		2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
		3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
		4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
		complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
		(as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

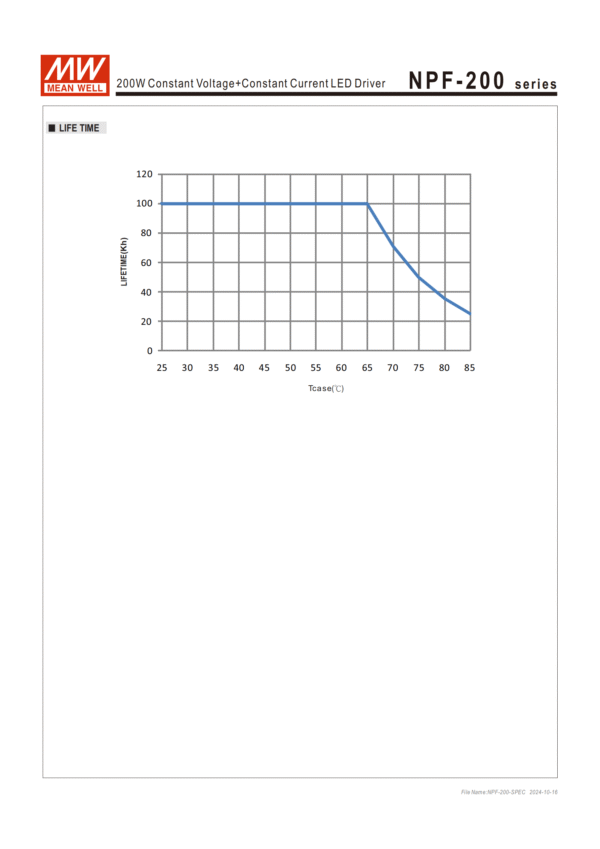

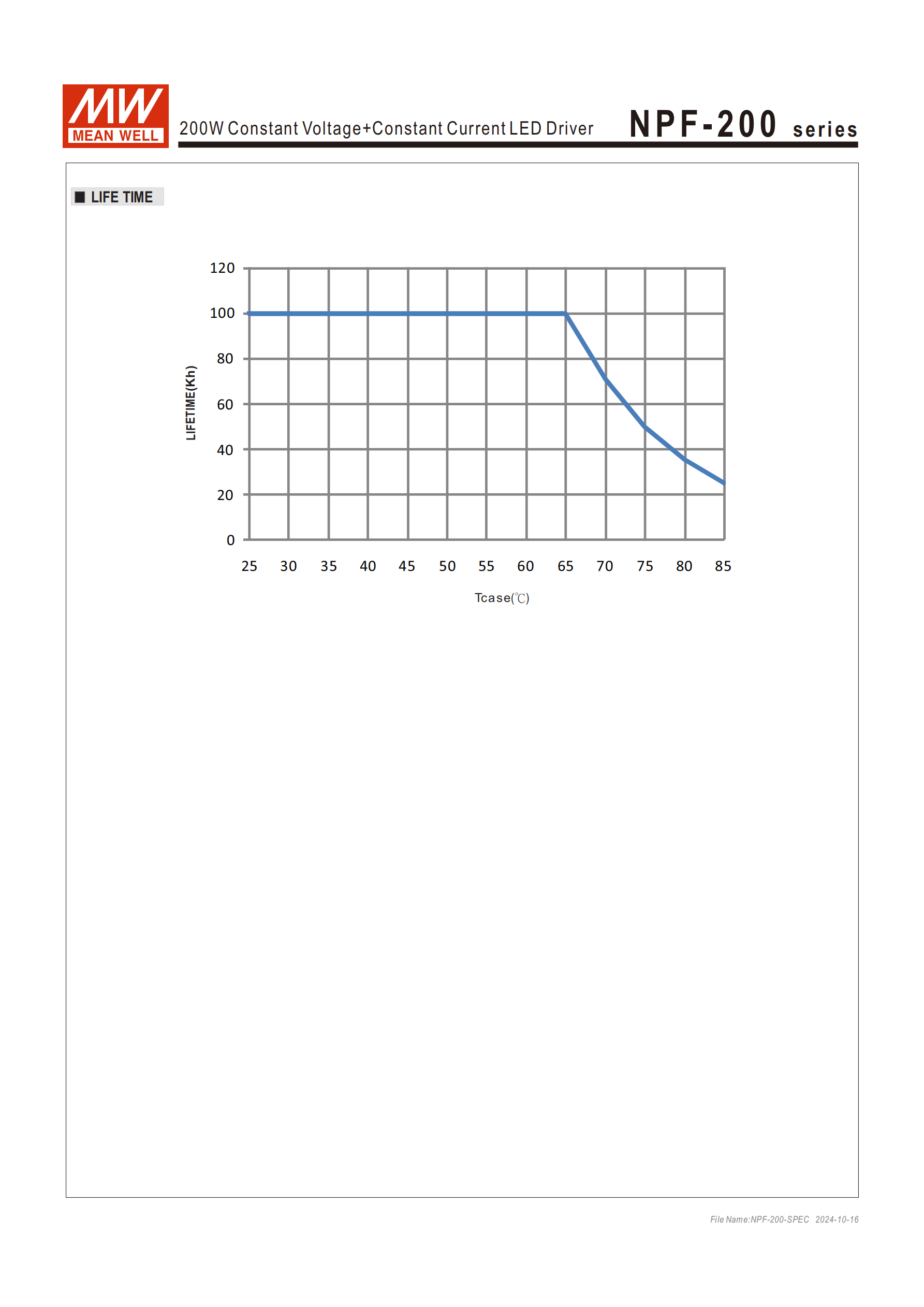

		5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75°C or less.
		6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
		7. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft).
		8. For any application note and IP water proof function installation caution, please refer our user manual before using.
		https://www.meanwell.com/Upload/PDF/LED_EN.pdf
		9. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
		10. Tolerance : includes set up tolerance, line regulation and load regulation.
		11. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently
		connected to the mains.
		# Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
